Land Rover Discovery: Rear Center Safety Belt Buckle (G1780795) / Removal and Installation
Land Rover Discovery (2009–2016) Service Manual / Body / Seatbelt and Supplemental Restraint
System / Rear Center Safety
Belt Buckle (G1780795)
/ Removal and Installation
REMOVAL
NOTES:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Removal steps in this procedure may contain installation details.
Refer to: Specifications (414-01, Specifications).

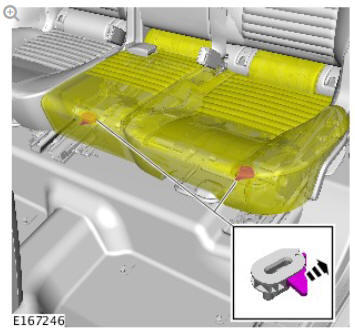

.60.jpg)
NOTE:
RH illustration shown, LH is similar.

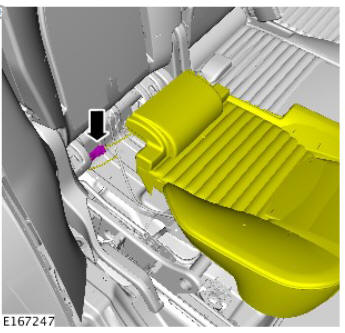

.61.jpg)

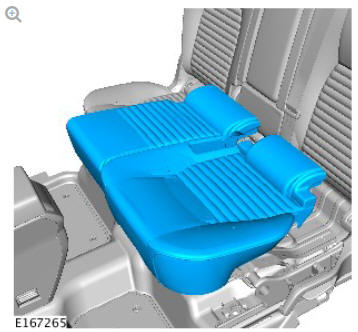

.62.jpg)

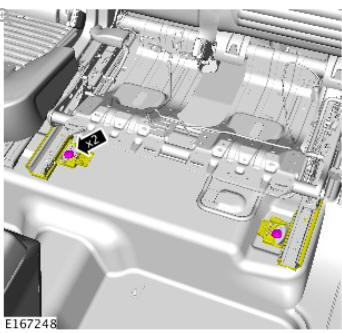

.63.jpg)
Torque: 40 Nm

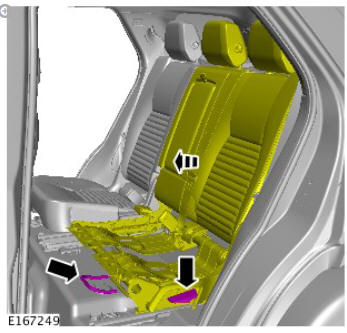

.64.jpg)

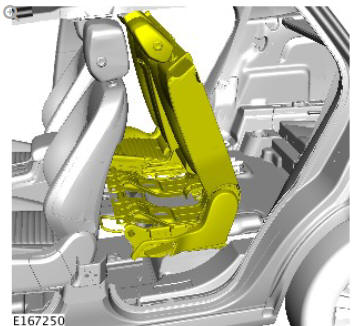

.65.jpg)

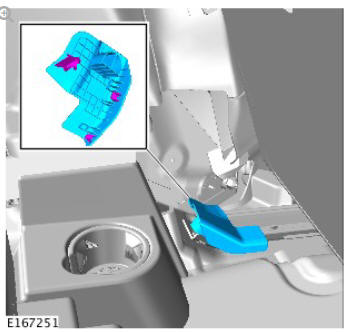

.66.jpg)

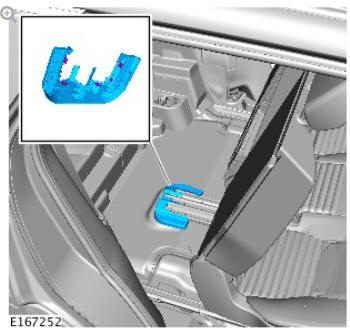

.67.jpg)
NOTE:
Note the orientation of the component prior to removal.

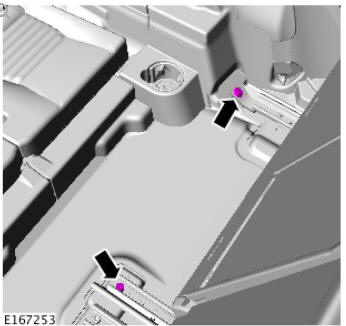

.68.jpg)
Torque: 40 Nm

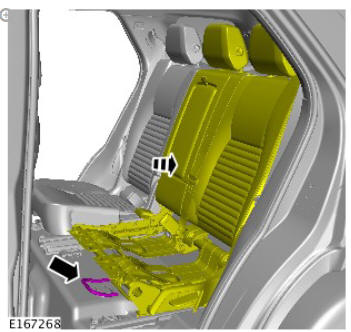

.69.jpg)
WARNING:
This step requires the aid of another technician.
CAUTIONS:
- Make sure to protect the paintwork.
- Protect the surrounding paintwork to avoid damage.

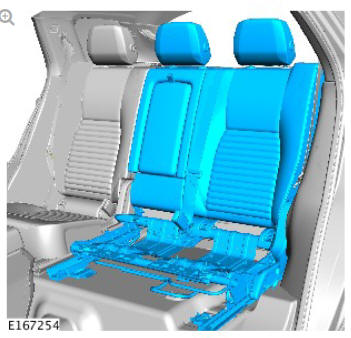

.70.jpg)
.71.jpg)

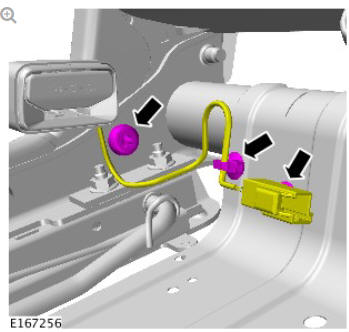

.72.jpg)
Torque: 40 Nm

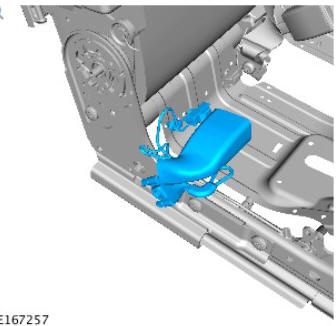

.73.jpg)
INSTALLATION
To install, reverse the removal procedure.
