Land Rover Discovery: Interior Trim and Ornamentation Headliner (G1785136) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Interior Trim and Ornamentation / Interior Trim and Ornamentation Headliner (G1785136) / Removal and Installation

PART(S)

PART(S)

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Make sure that all openings are sealed. Use new blanking caps.

Refer to: Overhead Console (501-12 Instrument Panel and Console, Removal and Installation).

Refer to: Windshield Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).

Refer to: 'B' Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

Refer to: 'C' Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

Refer to: 'D' Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

NOTE:

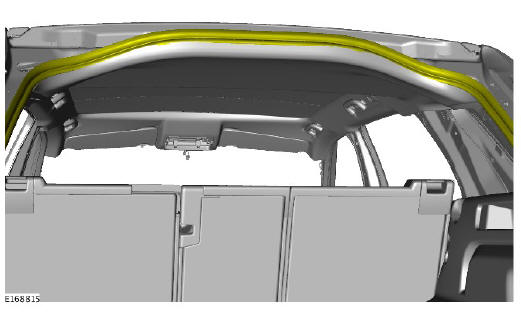

Note the orientation of the seal prior to detaching.

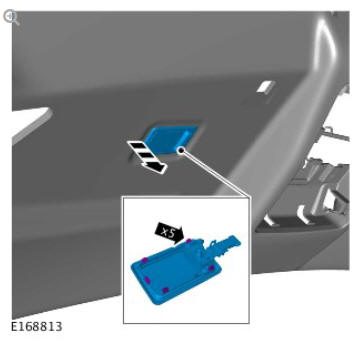

Interior trim and ornamentation headliner (G1785136) removal and installation

NOTE:

The step must be carried out on both sides.

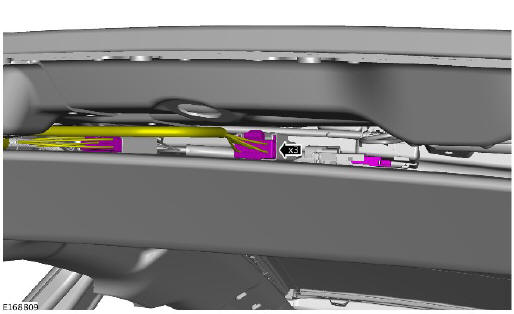

Interior trim and ornamentation headliner (G1785136) removal and installation

Torque: 6 Nm

NOTE:

The step must be carried out on both sides.

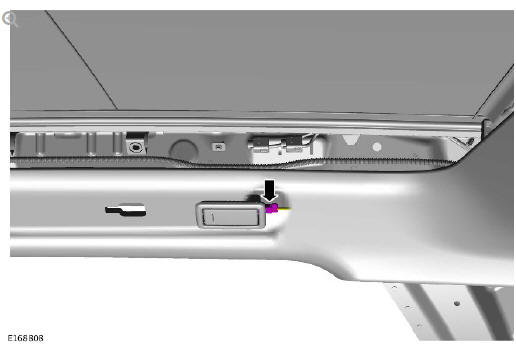

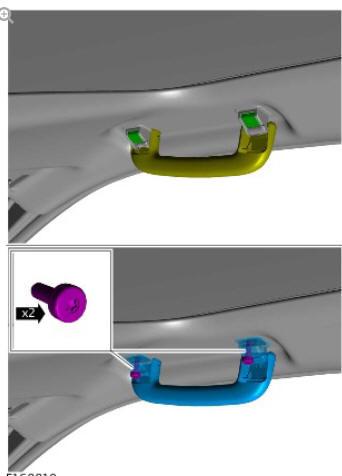

Interior trim and ornamentation headliner (G1785136) removal and installation

Torque: 6 Nm

NOTE:

The step must be carried out on both sides.

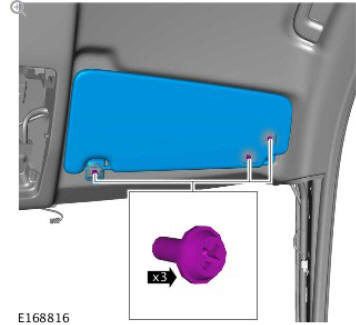

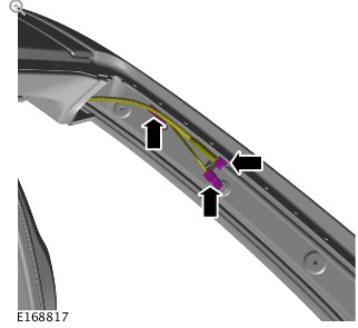

Interior trim and ornamentation headliner (G1785136) removal and installation

Torque: 6 Nm

CAUTION:

LH illustration shown, RH is similar.

NOTE:

Position cloth to collect fluid spillage.

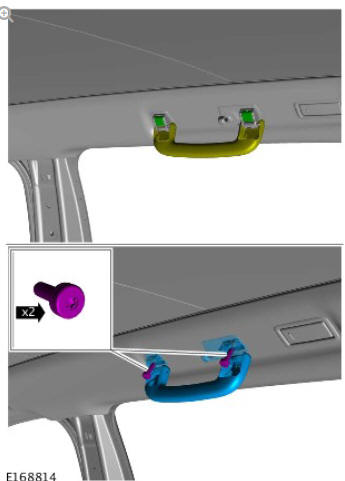

Interior trim and ornamentation headliner (G1785136) removal and installation

CAUTIONS:

  • Take extra care not to damage the component.
  • Using a suitable plastic trim tool, release the magnetic fixings.

NOTES:

  • Discard the retaining clips.
  • Make sure that there is at least 50mm clearance between the magnetic fixings and the headliner during the removal procedure. The fixings will engage if too close to each other.

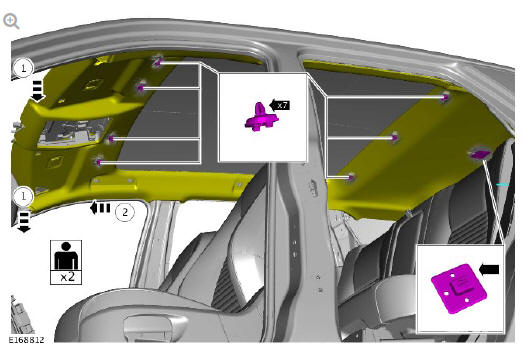

Interior trim and ornamentation headliner (G1785136) removal and installation

Renew Part: Headliner clips.

CAUTION:

Take extra care not to damage the component.

Interior trim and ornamentation headliner (G1785136) removal and installation

NOTE:

RH illustration shown, LH is similar.

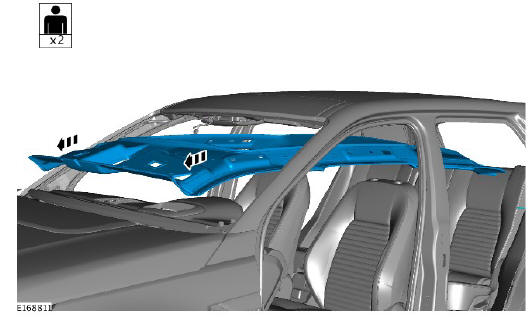

Interior trim and ornamentation headliner (G1785136) removal and installation

CAUTION:

Take extra care not to damage the component.

Interior trim and ornamentation headliner (G1785136) removal and installation

Interior trim and ornamentation headliner (G1785136) removal and installation

INSTALLATION

NOTE:

Install new retaining clips.

To install, reverse the removal procedure.
