Land Rover Discovery: Interior Trim and Ornamentation Rear Door Trim Panel (G1785134) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Interior Trim and Ornamentation / Interior Trim and Ornamentation Rear Door Trim Panel (G1785134) / Removal and Installation

REMOVAL

CAUTION:

Use a suitable trim tool.

NOTES:

  • LH illustration shown, RH is similar.
  • Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

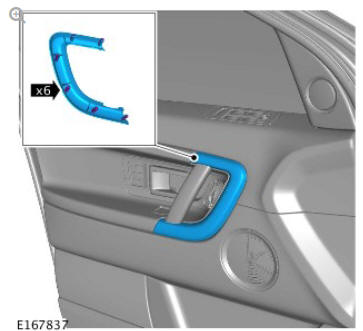

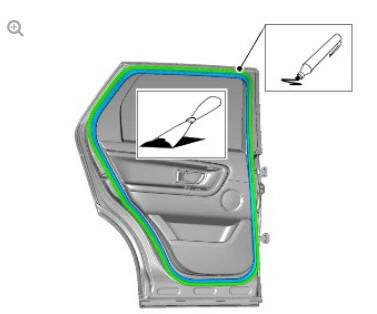

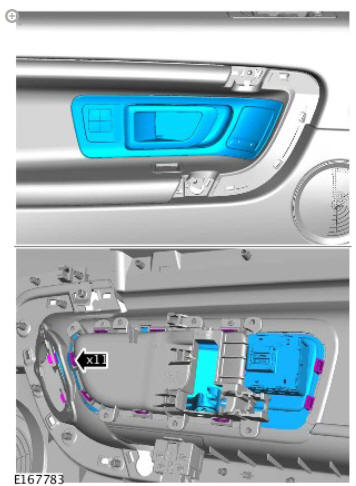

Interior trim and ornamentation rear door trim panel (G1785134) removal and installation

Interior trim and ornamentation rear door trim panel (G1785134) removal and installation

Interior trim and ornamentation rear door trim panel (G1785134) removal and installation

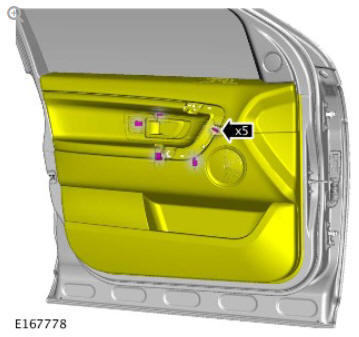

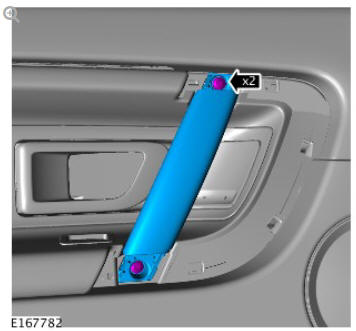

Torque: 7 Nm

Interior trim and ornamentation rear door trim panel (G1785134) removal and installation

Interior trim and ornamentation rear door trim panel (G1785134) removal and installation

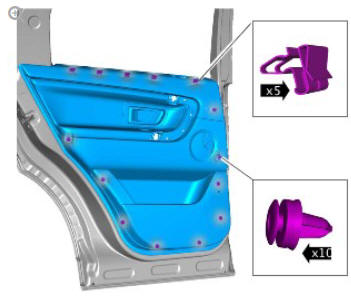

NOTE:

Discard the retaining clips.

Interior trim and ornamentation rear door trim panel (G1785134) removal and installation

Renew Part: Interior door trim clips.

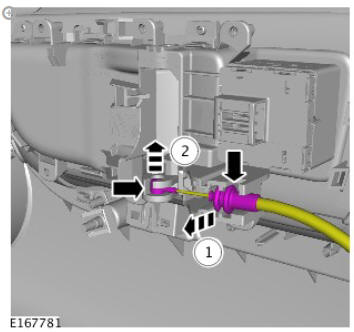

Interior trim and ornamentation rear door trim panel (G1785134) removal and installation

Interior trim and ornamentation rear door trim panel (G1785134) removal and installation

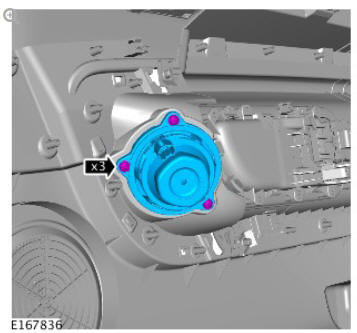

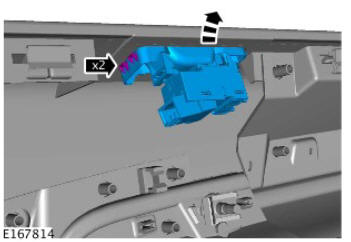

Interior trim and ornamentation rear door trim panel (G1785134) removal and installation

Torque: 1.3 Nm

INSTALLATION

NOTE:

Install new retaining clips.

To install, reverse the removal procedure.

Interior trim and ornamentation specifications

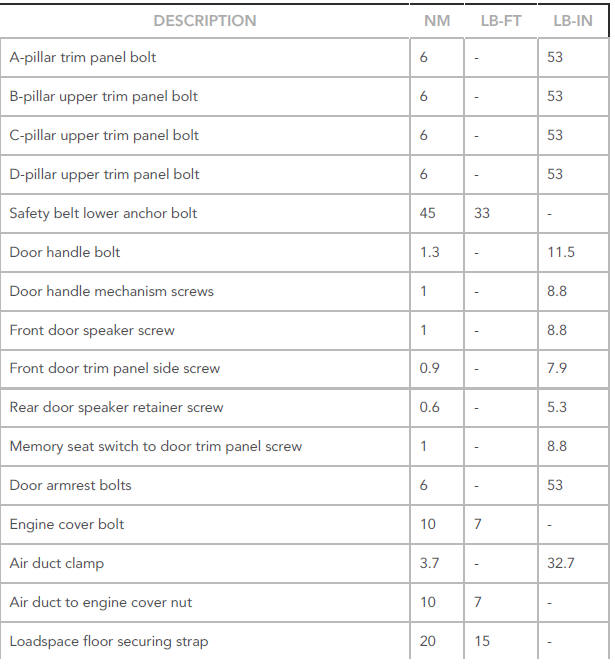

Torque Specifications

Torque Specifications
