Land Rover Discovery: Rear View Mirrors Exterior Mirror Cover (G1785543) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Mirrors / Rear View Mirrors Exterior Mirror Cover (G1785543) / Removal and Installation

REMOVAL

CAUTION:

Use a suitable trim tool.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • LH illustration shown, RH is similar.

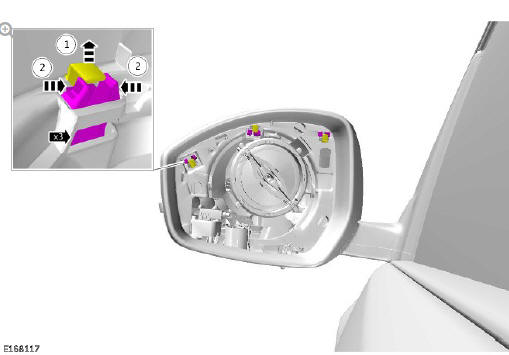

Refer to: Exterior Mirror Glass (501-09, Removal and Installation).

CAUTION:

Take extra care not to damage the clips.

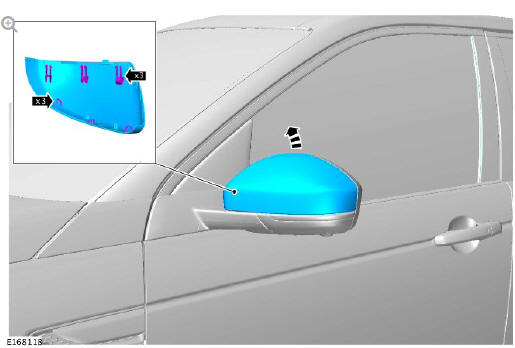

Rear view mirrors exterior mirror cover (G1785543) removal and installation

CAUTIONS:

  • Protect the surrounding trim to avoid damage.
  • Protect the surrounding paintwork to avoid damage.

Rear view mirrors exterior mirror cover (G1785543) removal and installation

INSTALLATION

CAUTIONS:

  • Take extra care not to damage the clips.
  • Protect the surrounding trim to avoid damage.
  • Protect the surrounding paintwork to avoid damage.

To install, reverse the removal procedure.

Rear view mirrors exterior mirror glass (G1348045) removal and installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

CAUTION:

Take extra care not to damage the clips.

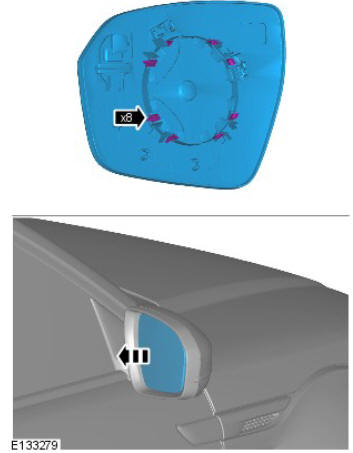

Rear view mirrors exterior mirror glass (G1348045) removal and installation

NOTE:

If equipped.
