Land Rover Discovery: Rear View Mirrors - Component location

NOTE:

NOTE: Right Hand Drive (RHD) installation shown, Left Hand Drive (LHD) installation similar.

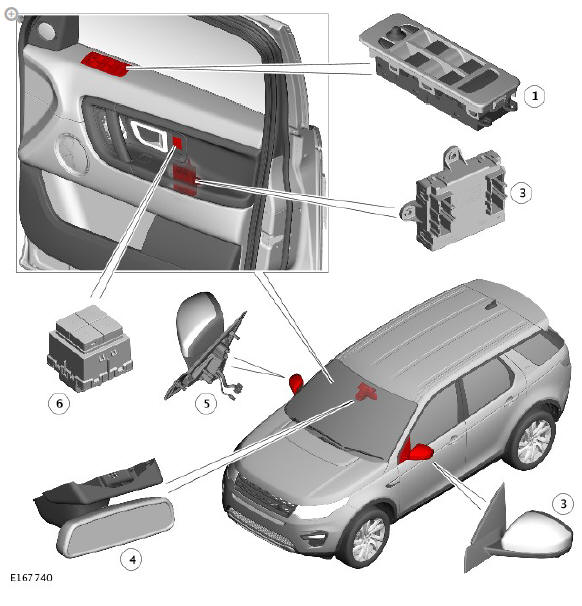

Rear view mirrors - Component location

  1. Driver door switchpack
  2. Door Module
  3. Left door mirror
  4. Rear view mirror (automatic dimming version shown)
  5. Right door mirror
  6. Seat memory switch

OVERVIEW

Rear view mirrors consist of an interior mirror on the windshield and a door mirror on each front door.

The rear view mirror incorporates either manual dimming or automatic dimming. Depending on vehicle model and market, the automatic dimming rear view mirror may also incorporate:

  • A HomeLink universal transmitter.

NOTE:

NOTE: HomeLink is a registered trademark owned by Johnson Controls Inc.

  • The automatic high beam function.

    For additional information, refer to: Exterior Lighting (417-01 Exterior Lighting, Description and Operation).

    The traffic sign recognition function.

  • For additional information, refer to: Warning Devices (413-09 Warning Devices, Description and Operation).
  • The lane departure warning function.

    For additional information, refer to: Warning Devices (413-09 Warning Devices, Description and Operation).

The door mirrors on all models incorporate electrical heating, electrical adjustment, repeater lamps for the turn signal indicators and the Ambient Air Temperature sensor (AAT) (Left door mirror only). Depending on vehicle model and market, the door mirrors may also incorporate:

  • Memory recall
  • Reverse dipping
  • Mirror foldback
  • Approach lamps.

For additional information, refer to: Interior Lighting (417-02 Interior Lighting, Description and Operation).

  • Proximity cameras.

    For additional information, refer to: Parking Aid (413-13 Parking Aid, Description and Operation).

  • Wade sensing.

    For additional information, refer to: Parking Aid (413-13 Parking Aid, Description and Operation).

  • Blind spot monitoring.

    For additional information, refer to: Warning Devices (413-09 Warning Devices, Description and Operation).

The door modules operate the exterior mirror functions under the control of the CJB and switches in the driver door switchpack.
