REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • RH illustration shown, LH is similar.
  • The ignition must be switched off.

Refer to: Exterior Mirror Cover (501-09 Rear View Mirrors, Removal and Installation).

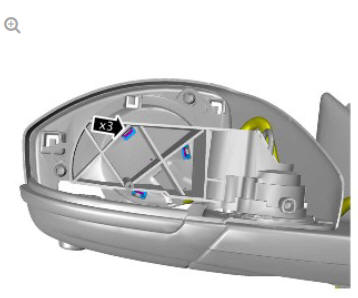

Rear view mirrors exterior mirror motor (G1796587) removal and installation

Torque: 1.2 Nm

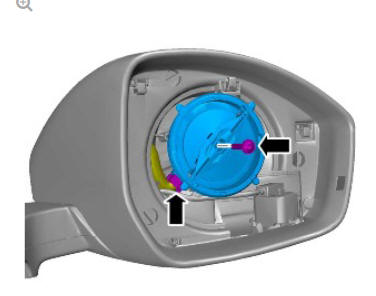

Rear view mirrors exterior mirror motor (G1796587) removal and installation

INSTALLATION

  1. To install, reverse the removal procedure

Rear view mirrors interior rear view mirror (G1785541) removal and installation

REMOVAL

CAUTIONS:

  • Protect the surrounding components.
  • Use a suitable trim tool.

NOTE:

Removal steps in this procedure may contain installation details.

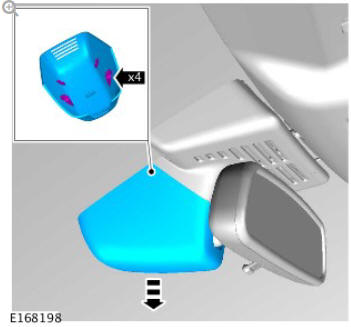

Rear view mirrors interior rear view mirror (G1785541) removal and installation

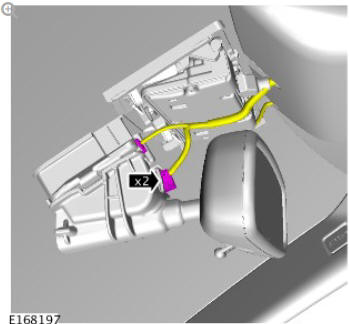

Rear view mirrors interior rear view mirror (G1785541) removal and installation

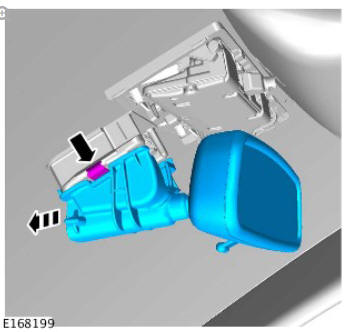

Rear view mirrors interior rear view mirror (G1785541) removal and installation

NOTE:

Repeat the step for the other side.

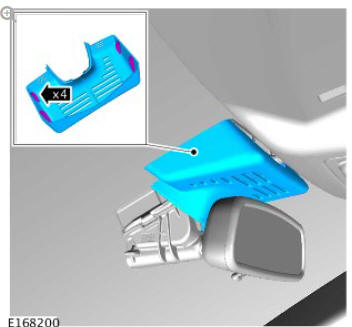

Rear view mirrors interior rear view mirror (G1785541) removal and installation

INSTALLATION

To install, reverse the removal procedure.
