Land Rover Discovery: Rear View Mirrors Exterior Mirror (G1785542) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Mirrors / Rear View Mirrors Exterior Mirror (G1785542) / Removal and Installation

REMOVAL

CAUTIONS:

  • Use a suitable trim tool.
  • Take extra care not to damage the wiring harnesses.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • RH illustration shown, LH is similar.

Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

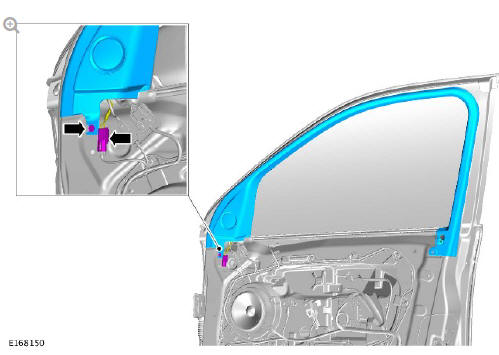

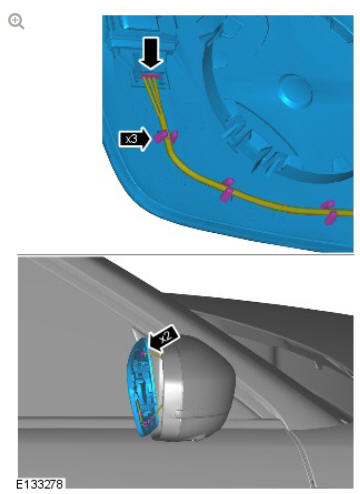

Rear view mirrors exterior mirror (G1785542) removal and installation

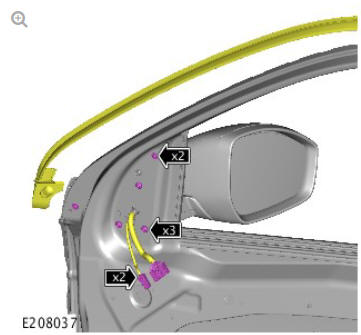

Rear view mirrors exterior mirror (G1785542) removal and installation

Torque: 9 Nm

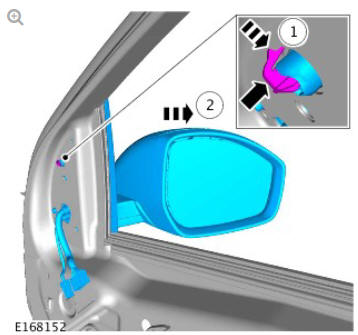

Rear view mirrors exterior mirror (G1785542) removal and installation

CAUTION:

Take extra care not to damage the clips.

NOTE:

Do not disassemble further if the component is removed for access only.

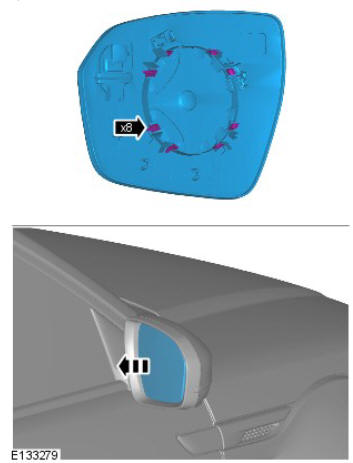

Rear view mirrors exterior mirror (G1785542) removal and installation

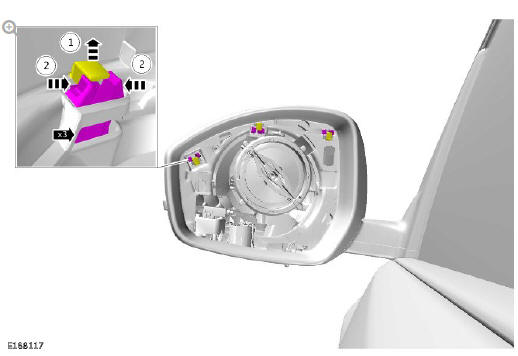

Rear view mirrors exterior mirror (G1785542) removal and installation

CAUTION:

Take extra care not to damage the clips.

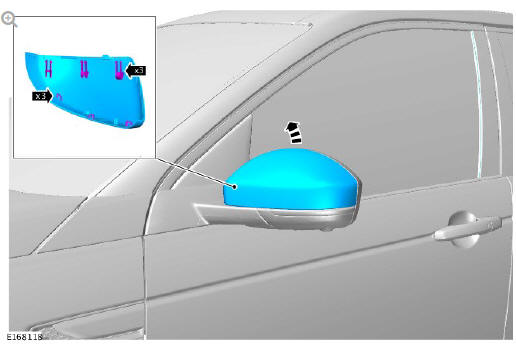

Rear view mirrors exterior mirror (G1785542) removal and installation

CAUTIONS:

  • Protect the surrounding trim to avoid damage.
  • Protect the surrounding paintwork to avoid damage.

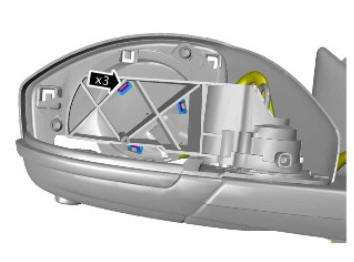

Rear view mirrors exterior mirror (G1785542) removal and installation

CAUTION:

Make sure the locating tangs are aligned. Failure to follow this instruction may result in damage to the vehicle.

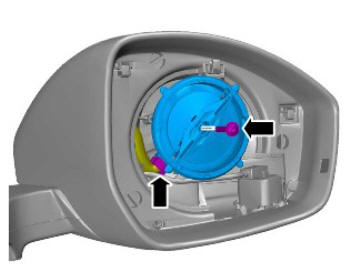

Rear view mirrors exterior mirror (G1785542) removal and installation

Torque: 1.2 Nm

Rear view mirrors exterior mirror (G1785542) removal and installation

INSTALLATION

To install, reverse the removal procedure.
