Land Rover Discovery: Interior Trim and Ornamentation Loadspace Trim Panel (G1785138) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Interior Trim and Ornamentation / Interior Trim and Ornamentation Loadspace Trim Panel (G1785138) / Removal and Installation

PART(S)

PART(S)

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Using a suitable tool, release the trim panel..
  • Discard the retaining clips.

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

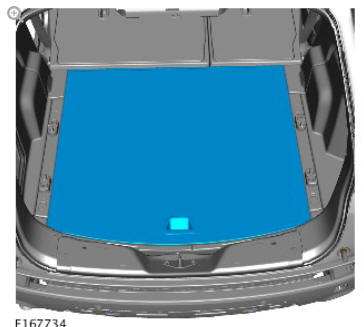

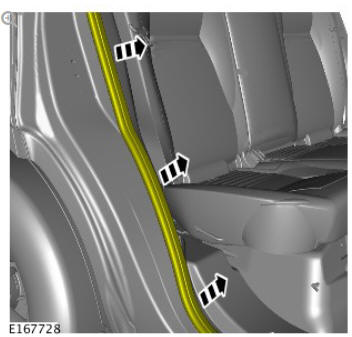

Interior trim and ornamentation loadspace trim panel (G1785138) removal and installation

Open rear door.

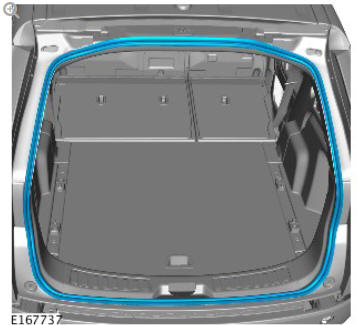

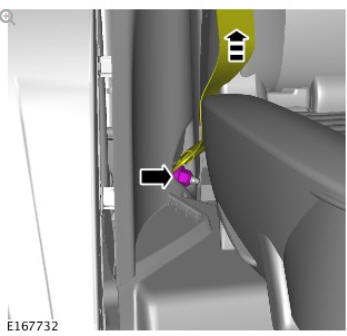

Interior trim and ornamentation loadspace trim panel (G1785138) removal and installation

Torque: 45 Nm

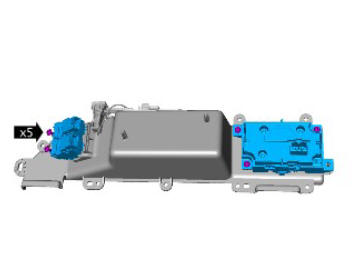

Interior trim and ornamentation loadspace trim panel (G1785138) removal and installation

Open the tail gate.

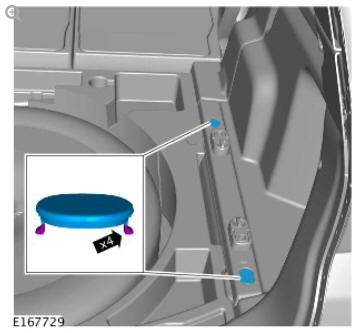

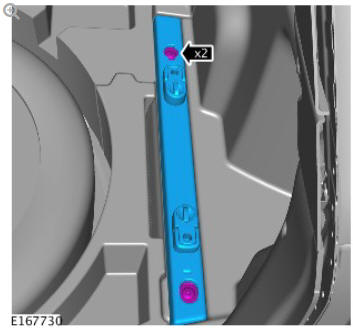

Interior trim and ornamentation loadspace trim panel (G1785138) removal and installation

Interior trim and ornamentation loadspace trim panel (G1785138) removal and installation

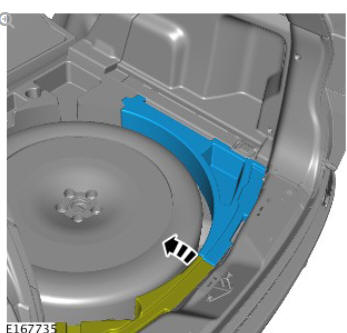

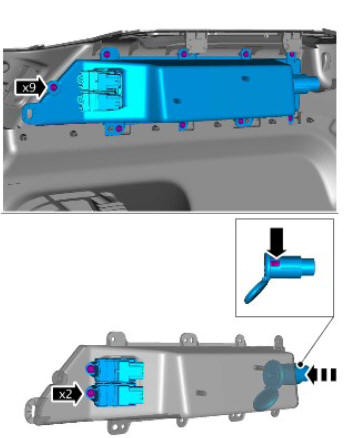

Interior trim and ornamentation loadspace trim panel (G1785138) removal and installation

Interior trim and ornamentation loadspace trim panel (G1785138) removal and installation

Torque: 25 Nm

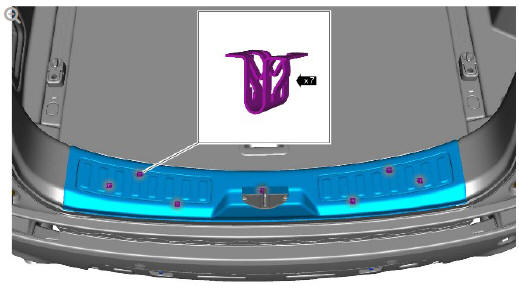

Interior trim and ornamentation loadspace trim panel (G1785138) removal and installation

NOTE:

Discard the retaining clips.

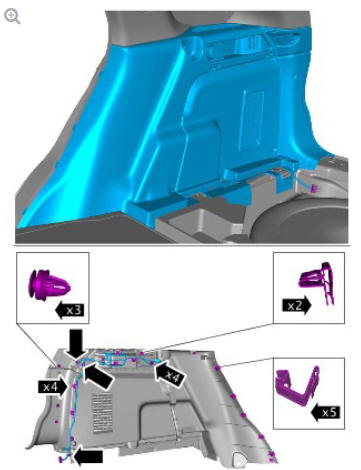

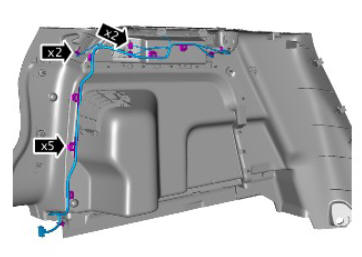

Interior trim and ornamentation loadspace trim panel (G1785138) removal and installation

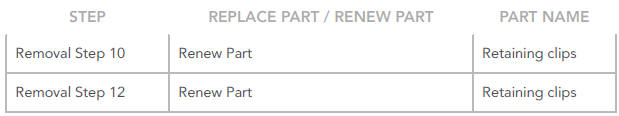

Renew Part: Retaining clips.

Interior trim and ornamentation loadspace trim panel (G1785138) removal and installation

NOTE:

Discard the retaining clips.

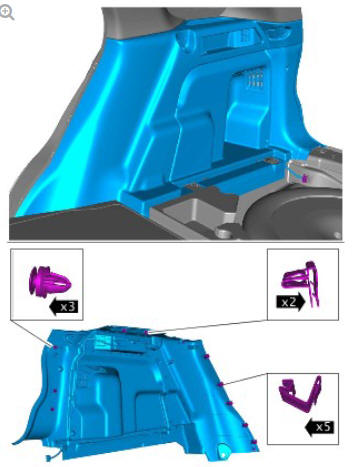

Interior trim and ornamentation loadspace trim panel (G1785138) removal and installation

Vehicles fitted with 7 seats.

Renew Part: Retaining clips.

Interior trim and ornamentation loadspace trim panel (G1785138) removal and installation

Torque: 3.5 Nm

Interior trim and ornamentation loadspace trim panel (G1785138) removal and installation

Vehicles fitted with 7 seats.

Torque: 3.5 Nm

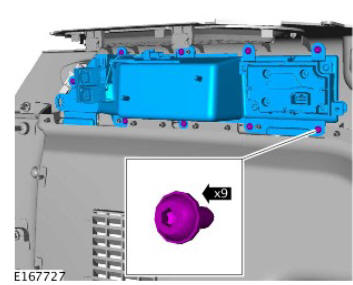

Interior trim and ornamentation loadspace trim panel (G1785138) removal and installation

Vehicles fitted with 7 seats.

Torque: 3.5 Nm

INSTALLATION

NOTE:

Install new retaining clips.

To install, reverse the removal procedure.
