Land Rover Discovery: Interior Trim and Ornamentation Liftgate Trim Panel (G1785262) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Interior Trim and Ornamentation / Interior Trim and Ornamentation Liftgate Trim Panel (G1785262) / Removal and Installation

REMOVAL

CAUTIONS:

  • Make sure to protect the paintwork.
  • Using a suitable tool, release the trim panel.

NOTE:

Removal steps in this procedure may contain installation details.

Interior trim and ornamentation liftgate trim panel (G1785262) removal and installation

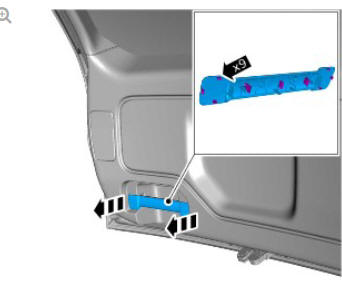

Interior trim and ornamentation liftgate trim panel (G1785262) removal and installation

Torque: 7 Nm

NOTE:

Use a screw driver with heat shrink protection fitted.

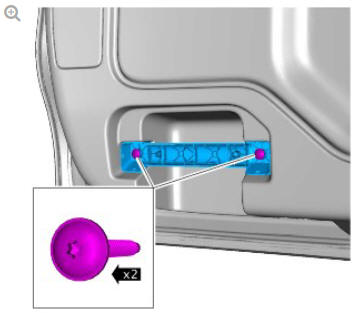

Interior trim and ornamentation liftgate trim panel (G1785262) removal and installation

NOTE:

When removing the trim, make sure that metal clips are retained on the trim.

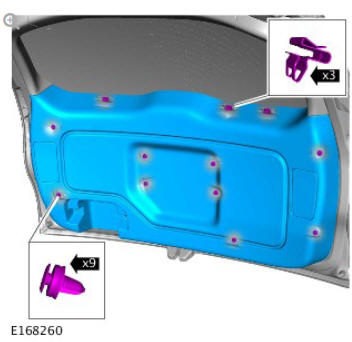

Interior trim and ornamentation liftgate trim panel (G1785262) removal and installation

INSTALLATION

NOTE:

Install new retaining clips.

To install, reverse the removal procedure.
