Land Rover Discovery: Interior Trim and Ornamentation Front Door Trim Panel (G1785135) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Interior Trim and Ornamentation / Interior Trim and Ornamentation Front Door Trim Panel (G1785135) / Removal and Installation

REMOVAL

CAUTION:

Use a suitable trim tool.

NOTES:

  • LH illustration shown, RH is similar.
  • Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

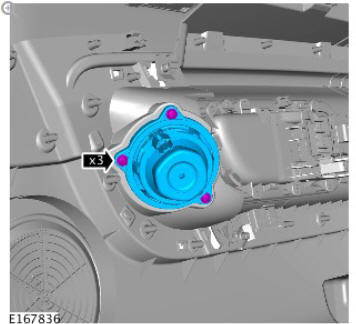

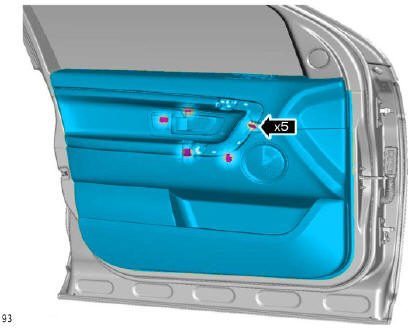

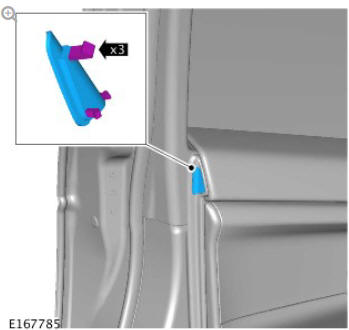

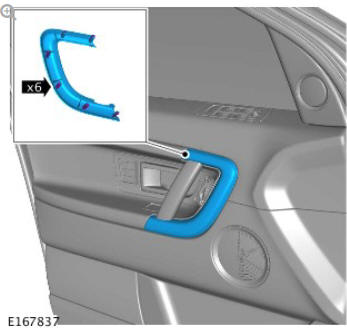

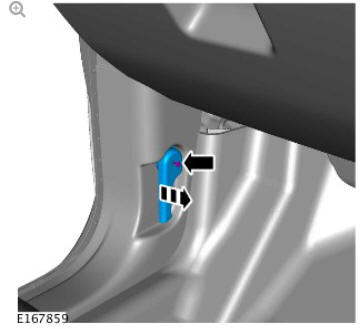

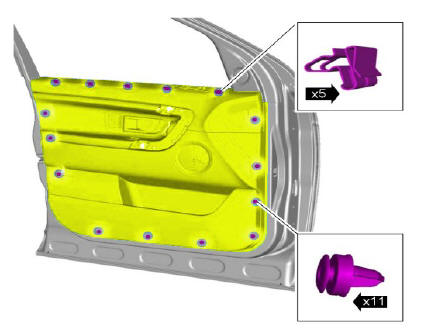

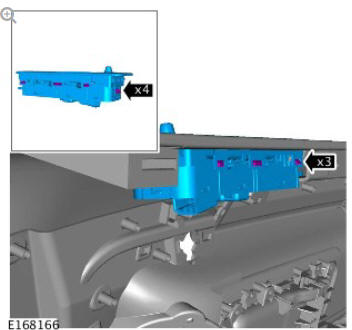

Interior trim and ornamentation front door trim panel (G1785135) removal and installation

Interior trim and ornamentation front door trim panel (G1785135) removal and installation

Torque: 7 Nm

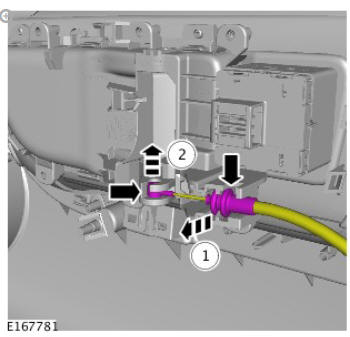

Interior trim and ornamentation front door trim panel (G1785135) removal and installation

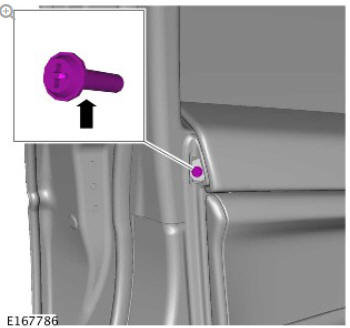

Interior trim and ornamentation front door trim panel (G1785135) removal and installation

Torque: 1.3 Nm

NOTE:

Discard the retaining clips.

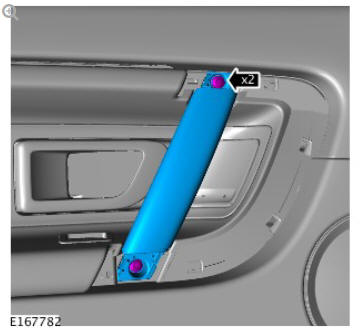

Interior trim and ornamentation front door trim panel (G1785135) removal and installation

Interior trim and ornamentation front door trim panel (G1785135) removal and installation

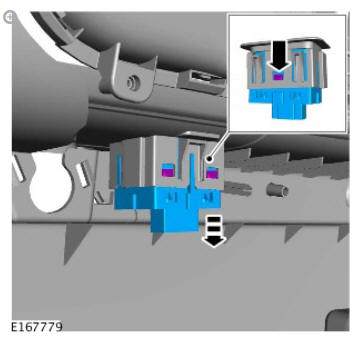

Interior trim and ornamentation front door trim panel (G1785135) removal and installation

Interior trim and ornamentation front door trim panel (G1785135) removal and installation

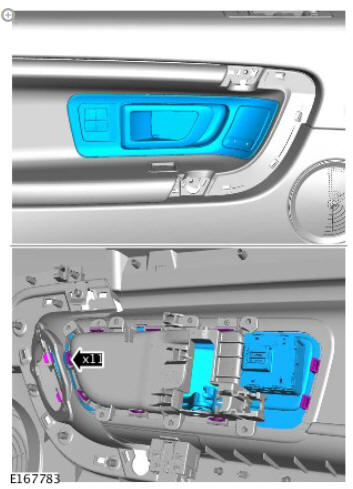

Interior trim and ornamentation front door trim panel (G1785135) removal and installation

Interior trim and ornamentation front door trim panel (G1785135) removal and installation

Interior trim and ornamentation front door trim panel (G1785135) removal and installation

Torque: 1.3 Nm

INSTALLATION

NOTE:

Install new retaining clips.

To install, reverse the removal procedure.

Interior Trim and Ornamentation Front Scuff Plate Trim Panel (G1785137) / Removal and Installation

REMOVAL

CAUTION:

Make sure to protect the paintwork.

NOTE:

Removal steps in this procedure may contain installation details.

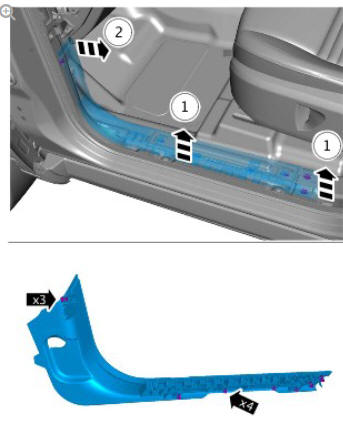

Interior trim and ornamentation front scuff plate trim panel (G1785137) removal and installation

Open the front door.

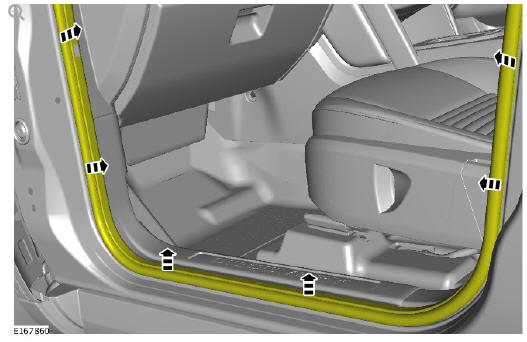

Interior trim and ornamentation front scuff plate trim panel (G1785137) removal and installation

CAUTION:

Do not use tools during this operation, removal of the component(s) must be carried out by hand.

Interior trim and ornamentation front scuff plate trim panel (G1785137) removal and installation

INSTALLATION

To install, reverse the removal procedure.
