Land Rover Discovery: Handles, Locks, Latches and Entry Systems - Pinpoint Tests

Land Rover Discovery (2009–2016) Service Manual / Body / Handles, Locks, Latches and Entry Systems / Handles, Locks, Latches and Entry Systems / Diagnosis and Test / Handles, Locks, Latches and Entry Systems - Pinpoint Tests

Pinpoint tests

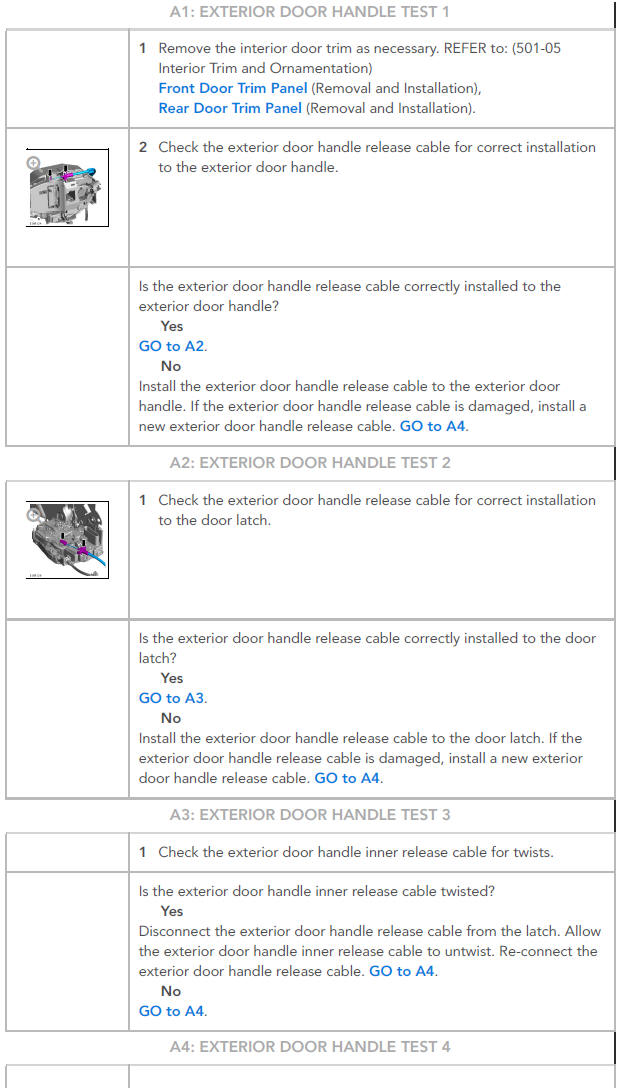

Pinpoint tests

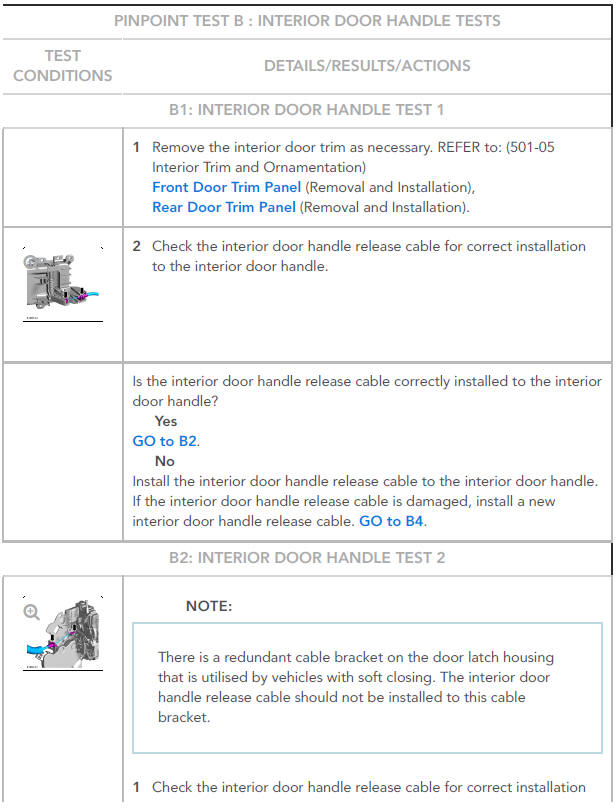

Pinpoint tests

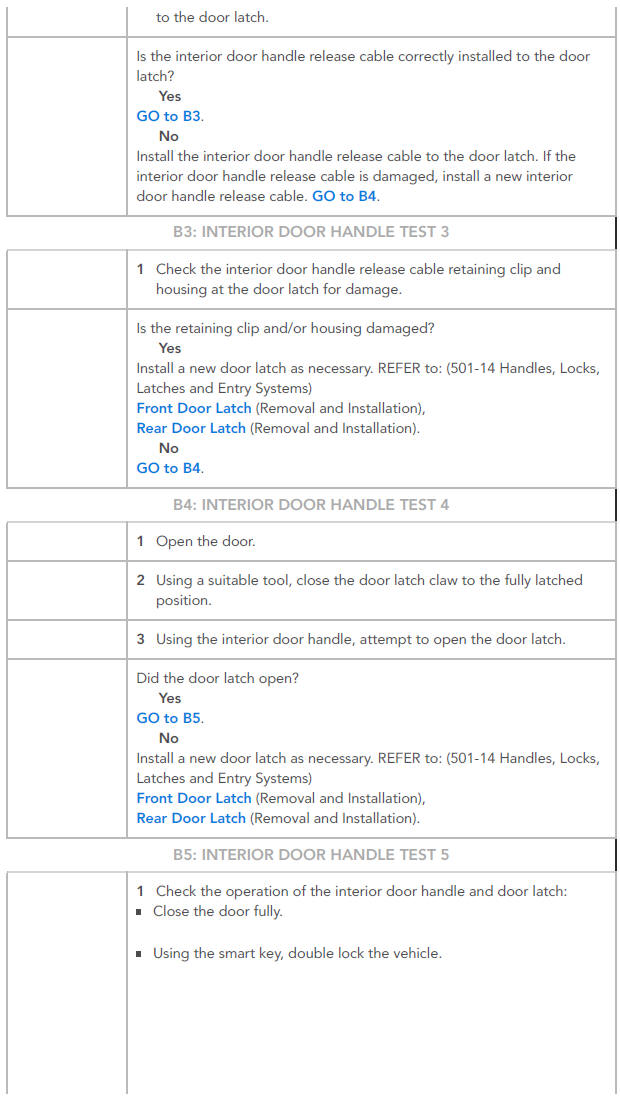

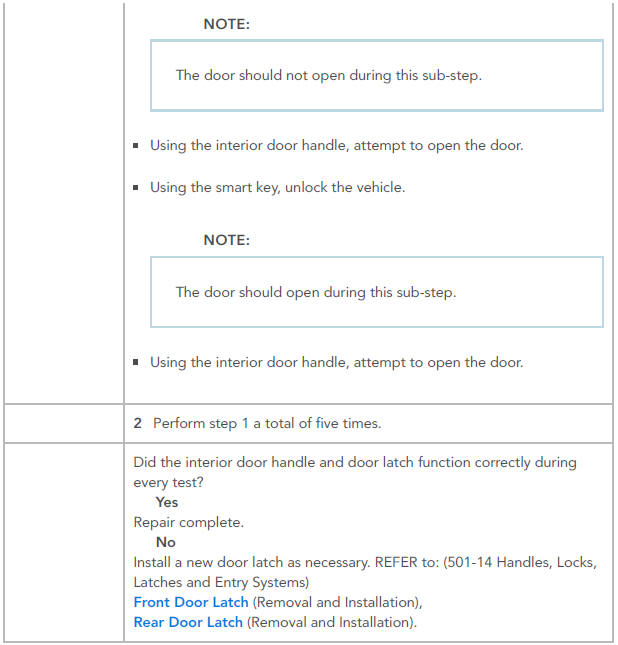

Pinpoint tests

NOTE:

If the door is a rear door, ensure that the child locks are not engaged and the fault is still present before continuing.

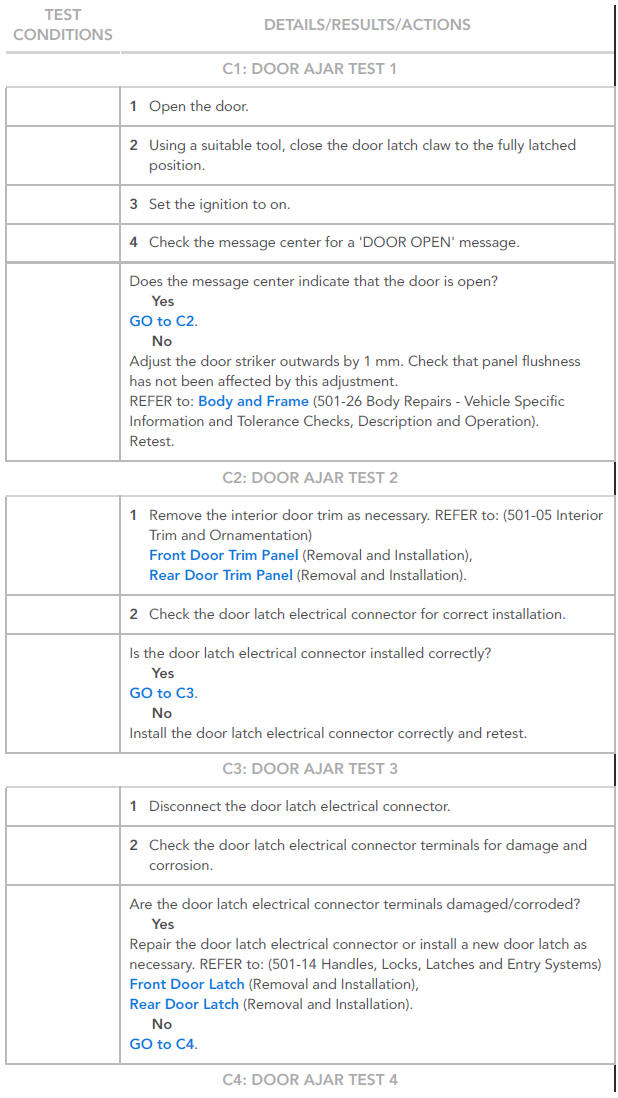

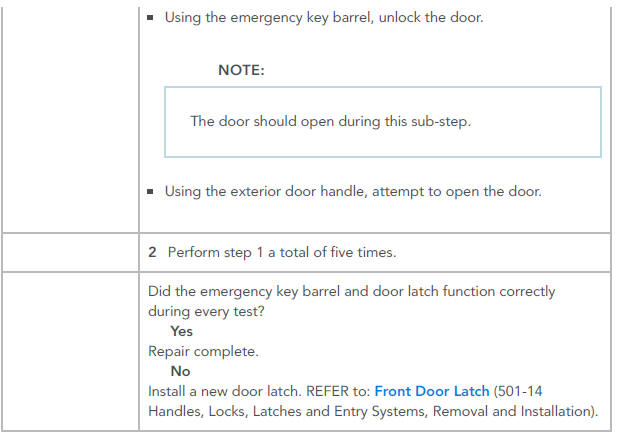

Pinpoint tests

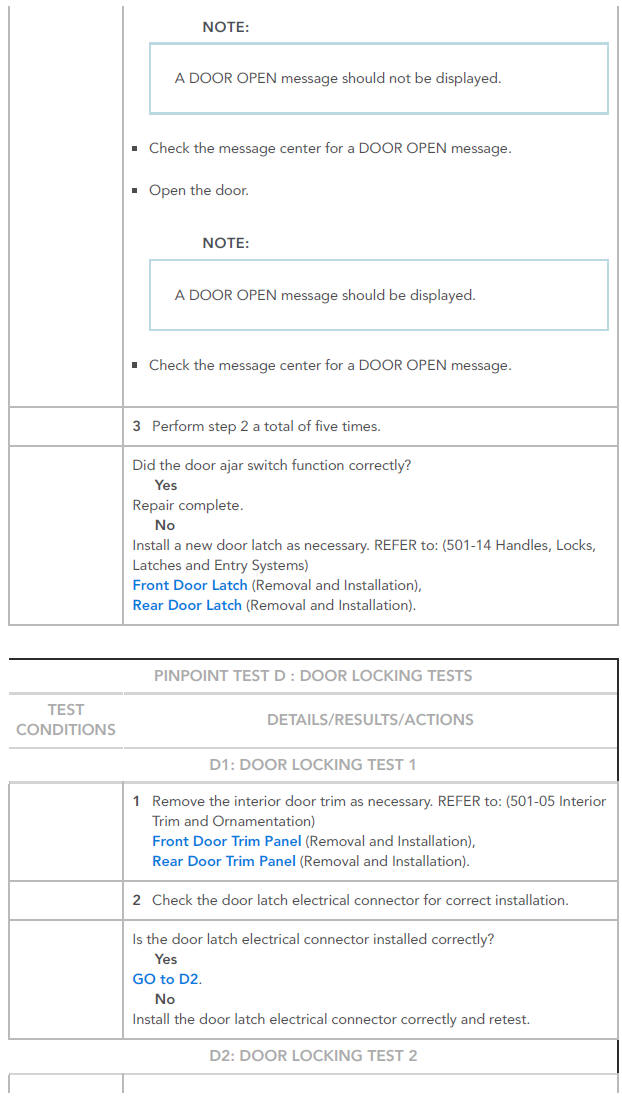

Pinpoint tests

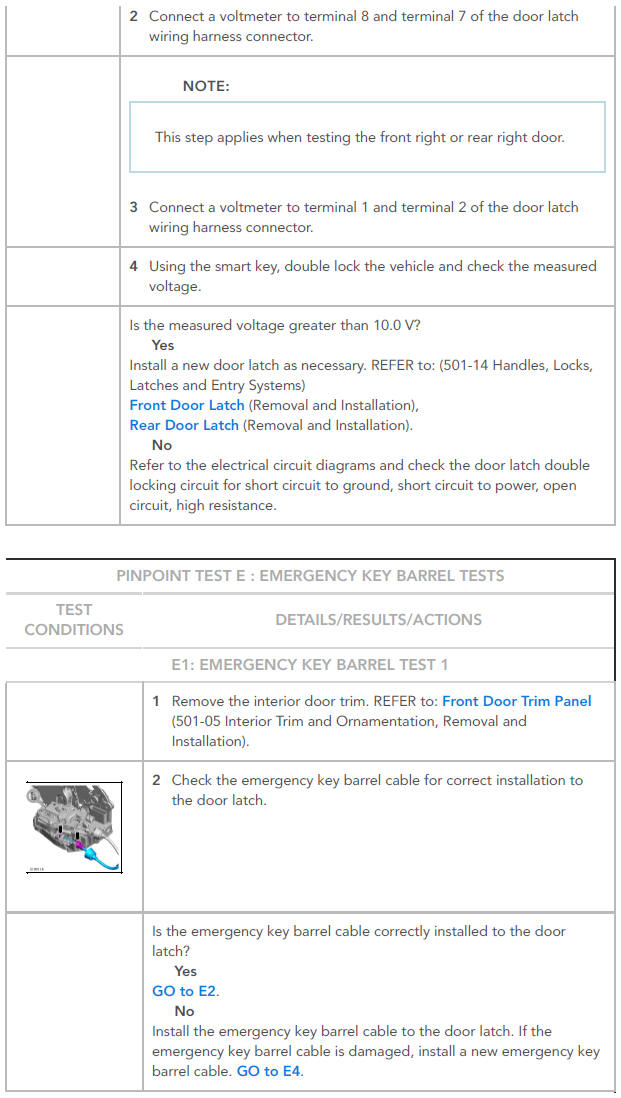

Pinpoint tests

NOTE:

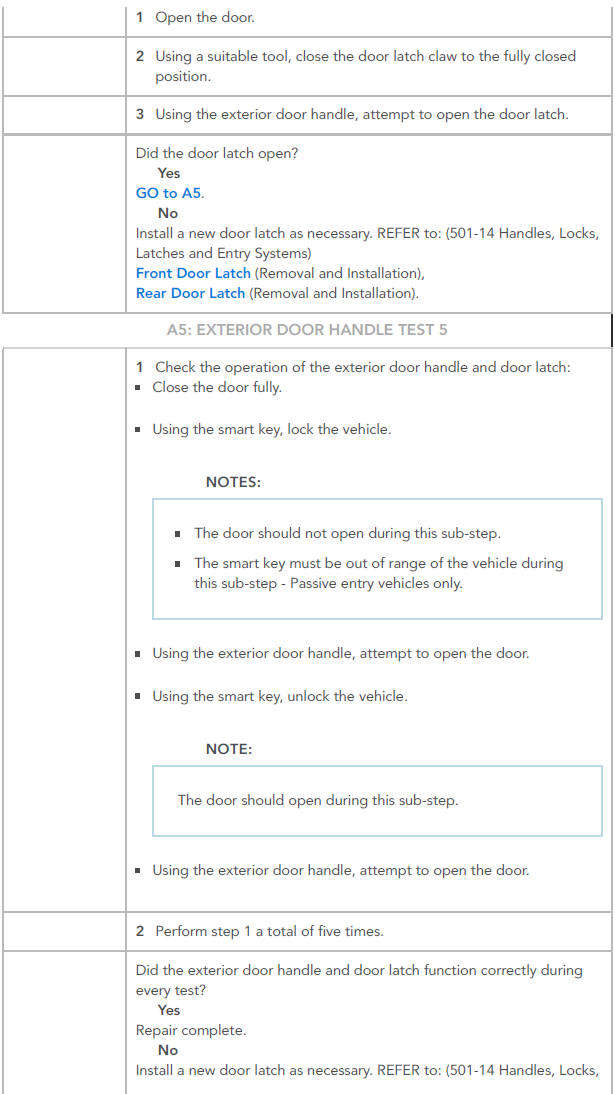

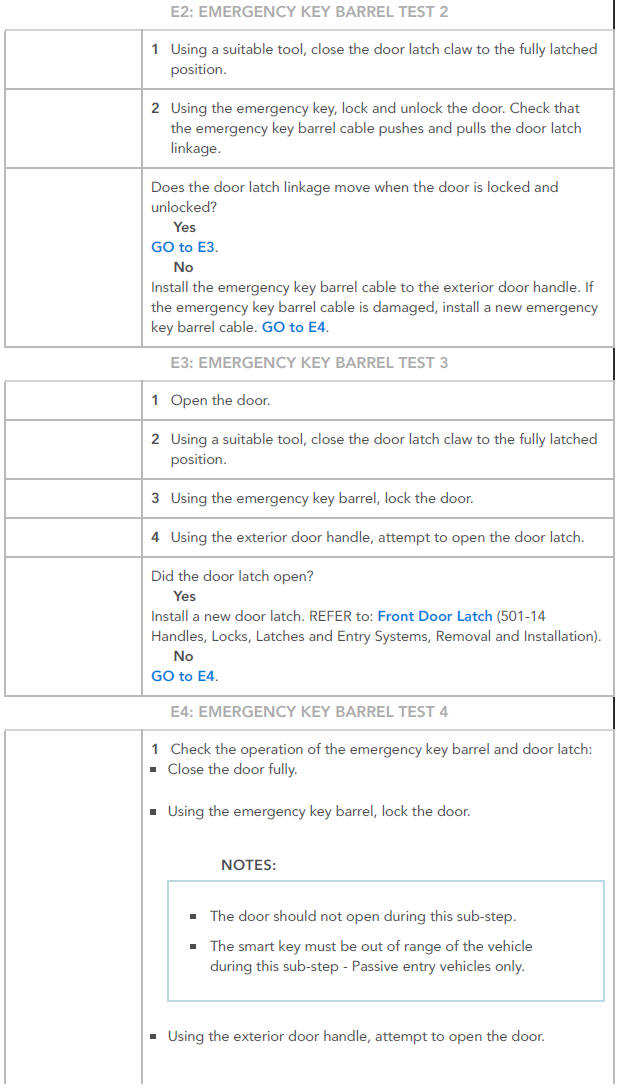

Ensure that the door latch claw remains in the fully latched position during this test.

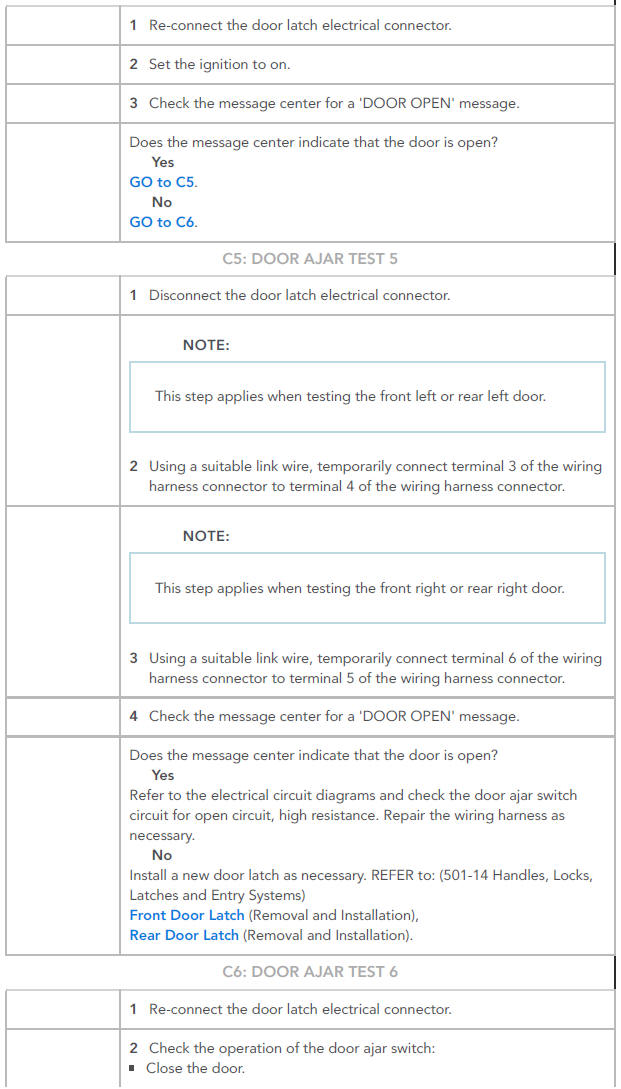

NOTE:

Ensure that the door latch claw remains in the fully latched position during this test.

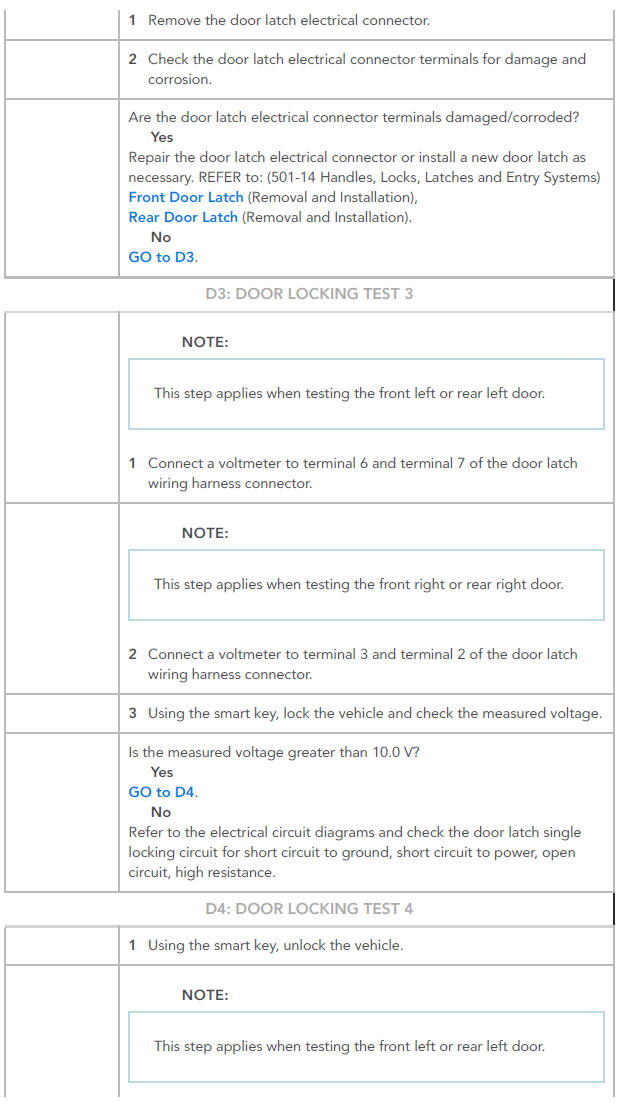

Pinpoint tests

Pinpoint tests

Pinpoint tests

Pinpoint tests

Pinpoint tests

Pinpoint tests

Pinpoint tests

Pinpoint tests

DTC INDEX

For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to Section 100-00. REFER to: (100-00 General Information) Diagnostic Trouble Code Index - DTC: Central Junction Box (CJB) (Description and Operation), Diagnostic Trouble Code Index - DTC: Driver / Passenger / Rear Left / Rear Right Door Module (DDM/PDM/RLDM/RRDM) (Description and Operation).
