Land Rover Discovery: Liftgate Latch (G1794531) / Removal and Installation
Land Rover Discovery (2009–2016) Service Manual / Body / Handles, Locks, Latches and
Entry Systems / Liftgate Latch (G1794531) / Removal and
Installation
REMOVAL
NOTE:
Removal steps in this procedure may contain installation details.
Refer to: Liftgate Trim Panel (501-05, Removal and Installation).

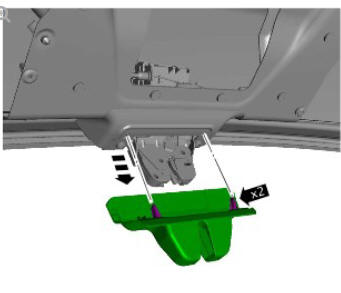

.9.jpg)

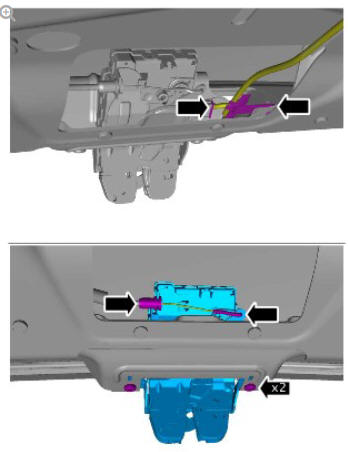

.10.jpg)
Torque: 11 Nm
INSTALLATION
To install, reverse the removal procedure.
