Land Rover Discovery: Hands Free Tailgate Sensor (G1890141) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Handles, Locks, Latches and Entry Systems / Hands Free Tailgate Sensor (G1890141) / Removal and Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

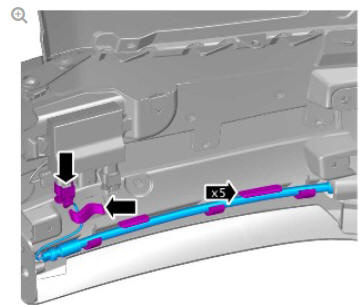

Hands free tailgate sensor (G1890141) removal and installation

Torque: 10 Nm

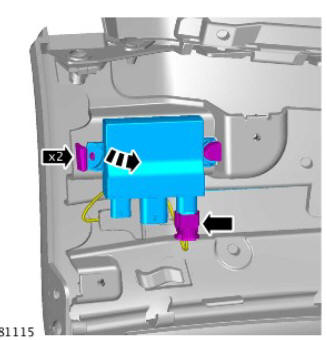

Hands free tailgate sensor (G1890141) removal and installation

CAUTION:

Take extra care not to damage the component

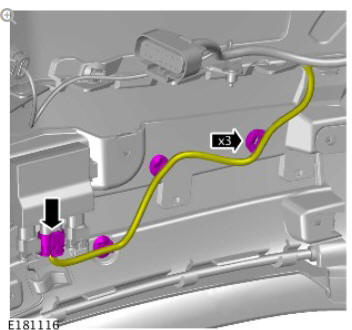

Hands free tailgate sensor (G1890141) removal and installation

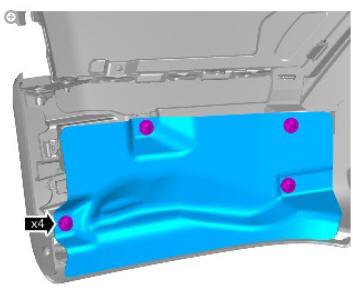

Hands free tailgate sensor (G1890141) removal and installation

CAUTION:

Take extra care not to damage the component.

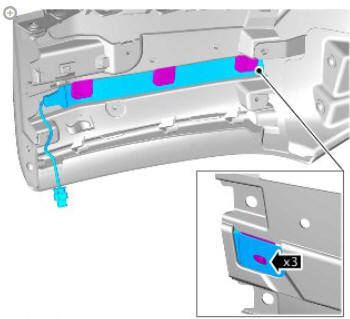

Hands free tailgate sensor (G1890141) removal and installation

INSTALLATION

To install, reverse the removal procedure.
