Land Rover Discovery: Interior Trim and Ornamentation 'D' Pillar Trim Panel (G1785133) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Interior Trim and Ornamentation / Interior Trim and Ornamentation 'D' Pillar Trim Panel (G1785133) / Removal and Installation

REMOVAL

CAUTION:

Do not use tools during this operation, removal of the component(s) must be carried out by hand.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • RH illustration shown, LH is similar.

Refer to: Loadspace Trim Panel (501-05, Removal and Installation).

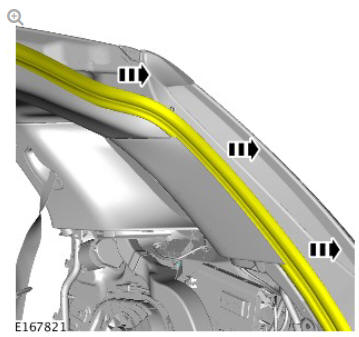

Interior trim and ornamentation 'D' pillar trim panel (G1785133) removal and installation

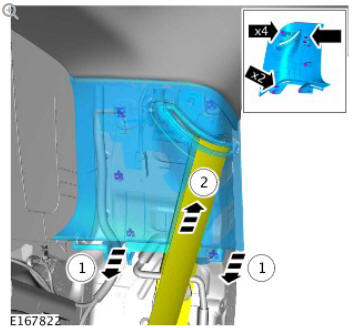

Interior trim and ornamentation 'D' pillar trim panel (G1785133) removal and installation

Interior trim and ornamentation 'D' pillar trim panel (G1785133) removal and installation

Vehicles fitted with 7 seats: Release the seat belt.

INSTALLATION

To install, reverse the removal procedure.

Interior trim and ornamentation engine cover - ingenium i4 2.0l diesel (G1877872) removal and installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Interior trim and ornamentation engine cover - ingenium i4 2.0l diesel (G1877872) removal and installation

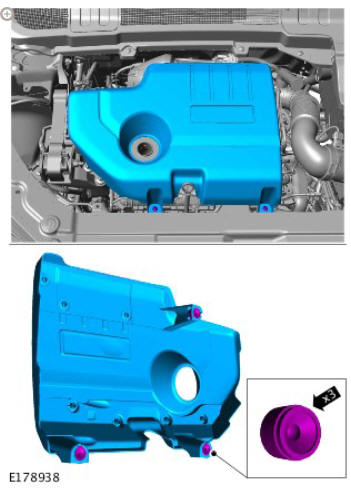

Interior trim and ornamentation engine cover - ingenium i4 2.0l diesel (G1877872) removal and installation

INSTALLATION

To install, reverse the removal procedure
