Land Rover Discovery: Interior Trim and Ornamentation 'C' Pillar Upper Trim Panel (G1785132) / Removal and Installation
Land Rover Discovery (2009–2016) Service Manual / Body / Interior Trim and Ornamentation / Interior Trim and Ornamentation 'C'
Pillar Upper
Trim Panel (G1785132)
/ Removal and Installation
REMOVAL
CAUTION:
Do not use tools during this operation, removal of the component(s) must be carried out by hand.
NOTES:
- Removal steps in this procedure may contain installation details.
- RH illustration shown, LH is similar.

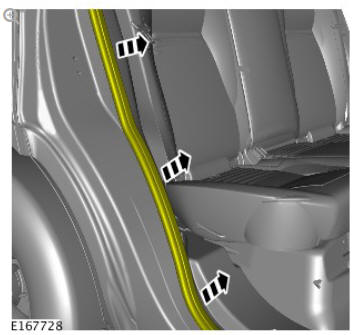

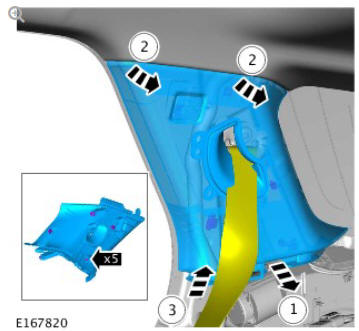

Refer to: Loadspace Trim Panel (501-05, Removal and Installation).
.11.jpg)
.12.jpg)
INSTALLATION
To install, reverse the removal procedure.
Interior trim and ornamentation cowl side trim panel (G1348030) removal and installation
REMOVAL
NOTE:
Removal steps in this procedure may contain installation details.

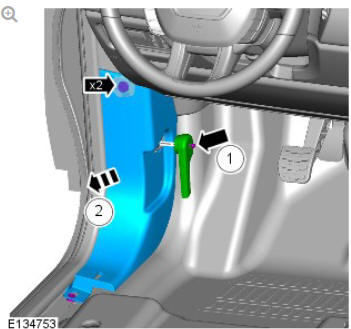

Refer to: Front Scuff Plate Trim Panel (501-05, Removal and Installation).
.13.jpg)
INSTALLATION
To install, reverse the removal procedure.
Interior Trim and Ornamentation 'B'
Pillar Upper
Trim Panel (G1785129)
/ Removal and InstallationInterior Trim and Ornamentation 'D'
Pillar Trim
Panel (G1785133) / Removal and
Installation
