Land Rover Discovery: Interior Trim and Ornamentation 'B' Pillar Upper Trim Panel (G1785129) / Removal and Installation
Land Rover Discovery (2009–2016) Service Manual / Body / Interior Trim and Ornamentation / Interior Trim and Ornamentation 'B'
Pillar Upper
Trim Panel (G1785129)
/ Removal and Installation
PART(S)
.5.jpg)
REMOVAL
CAUTION:
Do not use tools during this operation, removal of the component(s) must be carried out by hand.
NOTES:
- Removal steps in this procedure may contain installation details.
- RH illustration shown, LH is similar.
Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

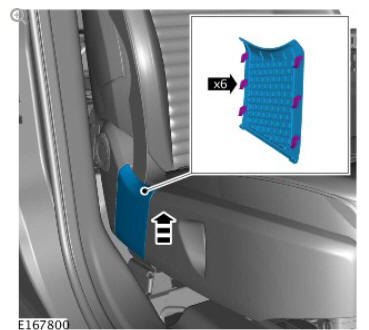

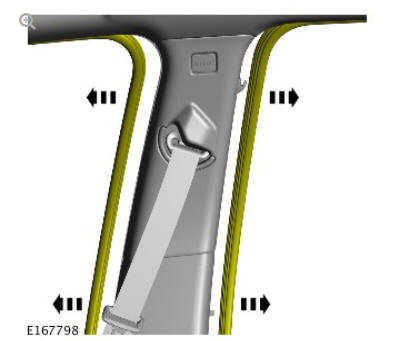

.6.jpg)

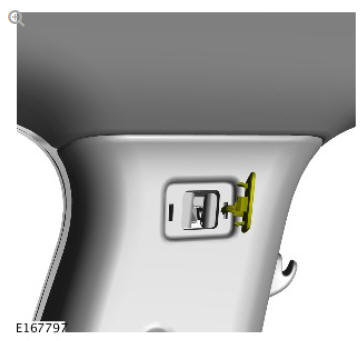

.7.jpg)
.8.jpg)
CAUTION:

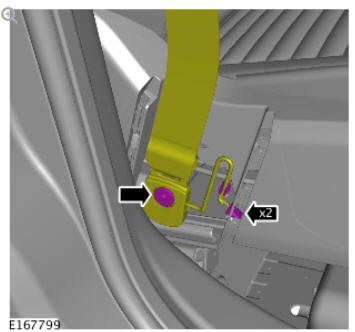

Discard the bolt.
.9.jpg)
Renew Part: Seatbelt bolt.
Torque: 45 Nm

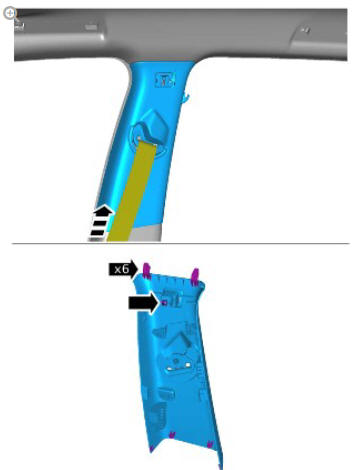

.10.jpg)
Open both front and rear doors.
INSTALLATION
To install, reverse the removal procedure.
