Land Rover Discovery: Rear Disc Brake Brake Caliper (G1785110)  - Installation

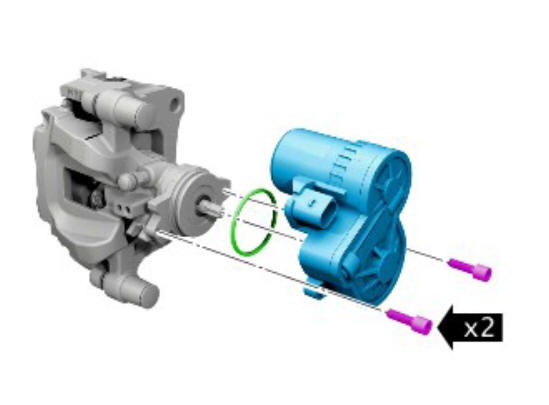

CAUTION:

A new O-ring seal is to be installed.

NOTE:

This step is only required if previously removed.

Rear disc brake brake caliper (G1785110)  - Installation

Torque: 11 Nm

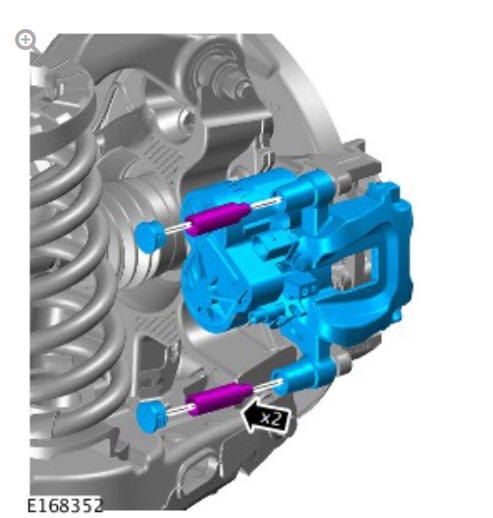

Rear disc brake brake caliper (G1785110)  - Installation

Torque: 28 Nm

NOTE:

Remove and discard all blanking caps.

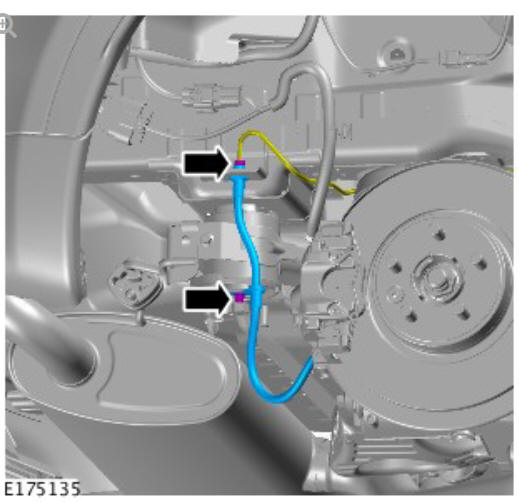

Rear disc brake brake caliper (G1785110)  - Installation

Torque:

Line union 15 Nm

Nut 10 Nm

Rear disc brake brake caliper (G1785110)  - Installation

CAUTIONS:

  • Make sure that a new flexible brake hose assembly is to be installed.
  • Make sure that the brake hose is not twisted and is correctly located.

NOTE:

Remove and discard all blanking caps.

Rear disc brake brake caliper (G1785110)  - Installation

  1. Torque: 32 Nm
  2. Wait at least 30 minutes.
  3. Torque: 32 Nm

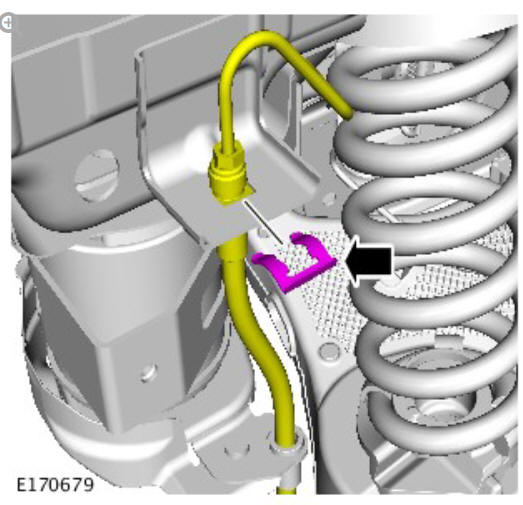

Rear disc brake brake caliper (G1785110)  - Installation

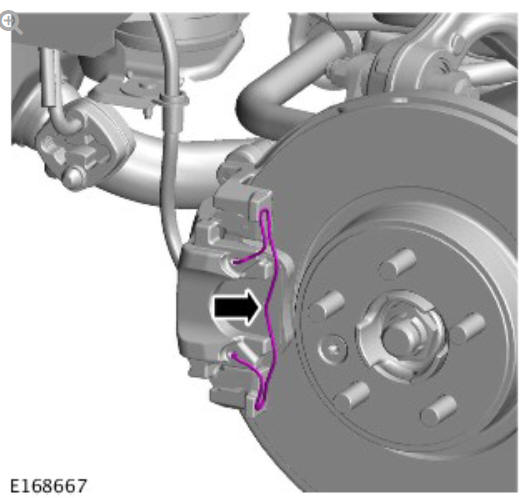

Rear disc brake brake caliper (G1785110)  - Installation

Bleed the brake system.

Refer to: Brake System Pressure Bleeding (206-00 Brake System - General Information, General Procedures).

Refer to: Rear Wheel Arch Liner (501-08 Exterior Trim and Ornamentation, Removal and Installation).

Calibrate the electric parking brake (EPB) using the diagnostic tool.

NOTE:

This step is only required if the diagnostic tool is not available.

Refer to: Electronic Parking Brake Service Mode Activation and Deactivation (206-05 Parking Brake and Actuation, General Procedures).

NOTE:

This step is only required if the vehicle has no battery power.

Refer to: Electronic Parking Brake Release When the Vehicle Has No Electrical Power (206-05 Parking Brake and Actuation, General Procedures).
