Land Rover Discovery: Ride and Handling Optimization / Diagnosis and Testing

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Suspension / Ride and Handling Optimization / Diagnosis and Testing

PRINCIPLES OF OPERATION

For a detailed description of the Ride and Handling Optimization, refer to the relevant Description and Operation section in the workshop manual.

REFER to: Ride and Handling Optimization (204-06 Ride and Handling Optimization, Description and Operation).

INSPECTION AND VERIFICATION

CAUTION:

Diagnosis by substitution from a donor vehicle is NOT acceptable.

Substitution of control modules does not guarantee confirmation of a fault, and may also cause additional faults in the vehicle being tested and/or the donor vehicle.

NOTES:

  • If a control module or a component is suspect and the vehicle remains under manufacturer warranty, refer to the Warranty Policy and Procedures manual, or determine if any prior approval programme is in operation, prior to the installation of a new module/component.
  • When performing voltage or resistance tests, always use a digital multimeter that has the resolution ability to view 3 decimal places.

    For example, on the 2 volts range can measure 1mV or 2 K Ohm range can measure 1 Ohm. When testing resistance always take the resistance of the digital multimeter leads into account.

  • Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.
  1. Verify the customer concern
  2. Visually inspect for obvious signs of damage and system integrity

Visual Inspection

Visual Inspection

  1. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step
  2. If the cause is not visually evident, verify the symptom and refer to the Symptom Chart, alternatively check for Diagnostic Trouble Codes (DTCs) and refer to the DTC Index
  3. Check DDW for open campaigns. Refer to the corresponding bulletins and SSMs which may be valid for the specific customer complaint and carry out the recommendations as required

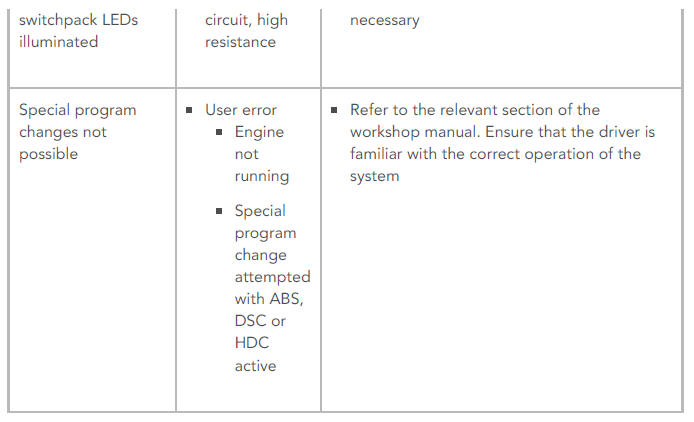

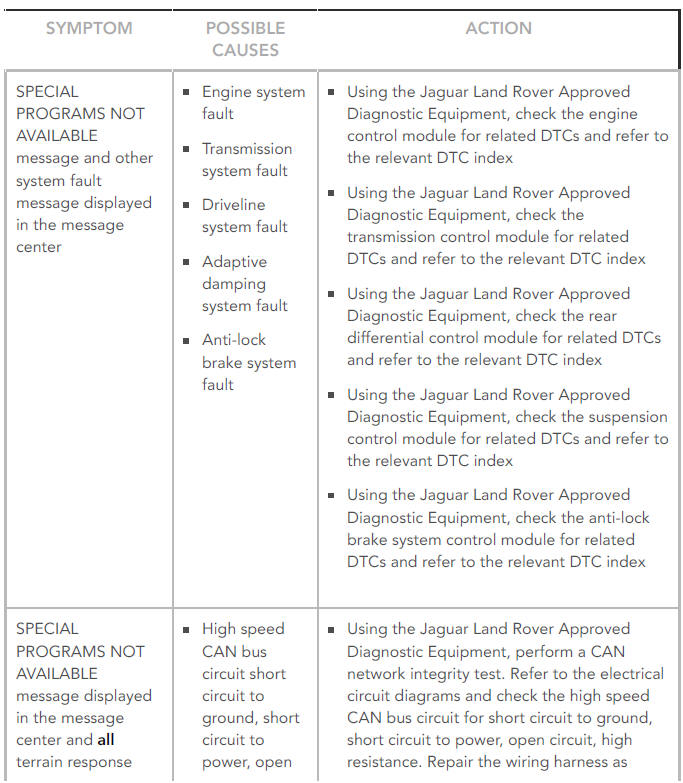

SYMPTOM CHART

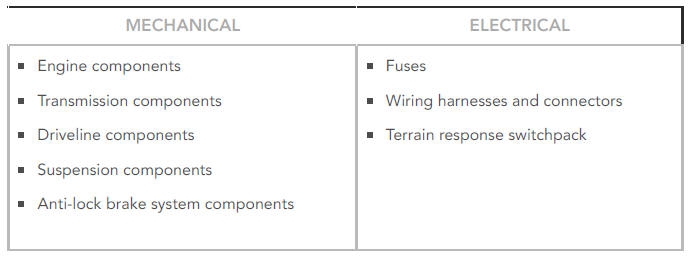

Because the overall function of the system is dependent on sub-systems, it is possible to misinterpret displays in the message center as being terrain response faults when they are actually a result of a fault in one of the subsystems.

SYMPTOM CHART

SYMPTOM CHART

DTC INDEX

For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to Section 100-00. REFER to: Diagnostic Trouble Code Index - DTC: Terrain Response Switchpack (TR) (100-00 General Information, Description and Operation).

Suspension system - general information specifications

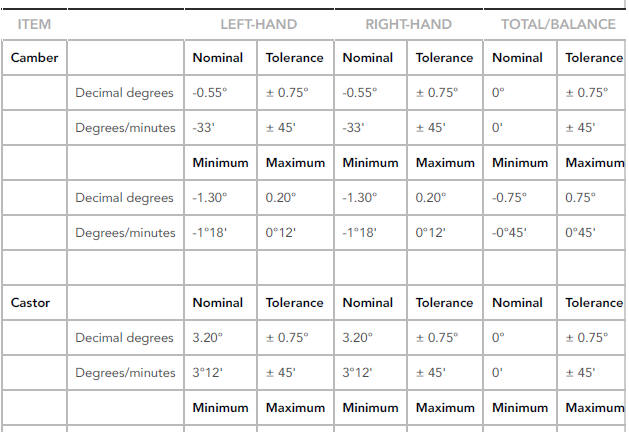

Wheel Alignment Specification (All Markets) - Front

NOTE:

All figures are with vehicle at 'Showroom' ride height - full fluids, full tank of fuel, no occupants/luggage, tires inflated to normal pressures

Wheel Alignment Specification (All Markets) - Front

Wheel Alignment Specification (All Markets) - Front

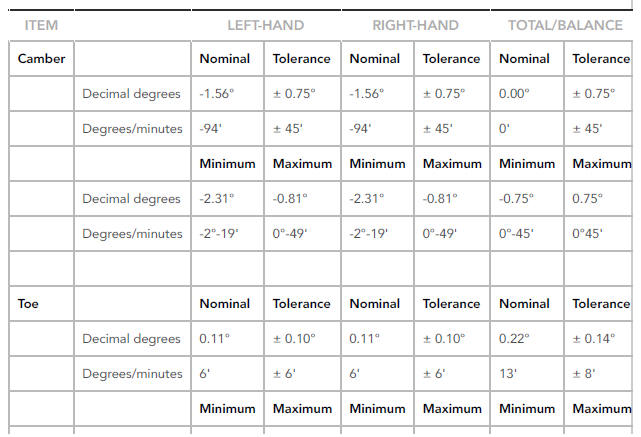

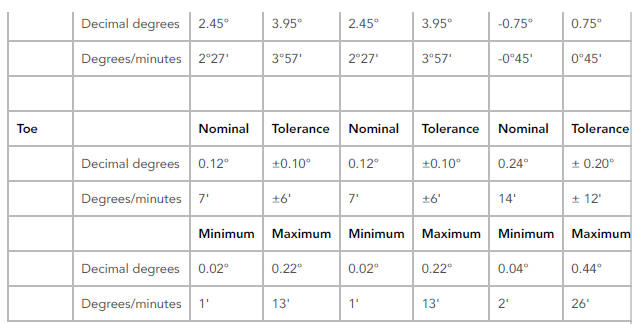

Wheel Alignment Specification (All Markets) - Rear

NOTE:

All figures are with vehicle at 'Showroom' ride height - full fluids, full tank of fuel, no occupants/luggage, tires inflated to normal pressures

Wheel Alignment Specification (All Markets) - Rear

Wheel Alignment Specification (All Markets) - Rear

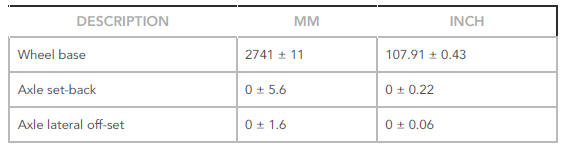

Vehicle axle alignment

CAUTION:

It may be necessary to adjust the position the subframe(s) in order to achieve the correct wheel base, axle set-back and axle lateral off-set.

NOTE:

All figures are with vehicle at 'Kerbside' (curbside) ride height - full fluids, full tank of fuel, no occupants/luggage, tires inflated to normal pressures

Vehicle axle alignment

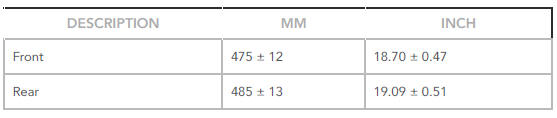

Vehicle Ride Height

NOTES:

  • All figures are with vehicle at 'Kerbside' (curbside) ride height - full fluids, full tank of fuel, no occupants/luggage, tires inflated to normal pressures
  • Ride height is measured vertically from wheel centre to underside of wheel arch

Vehicle Ride Height
