Land Rover Discovery (2009–2016) Service Manual / Body / Seatbelt and Supplemental Restraint System / Seatbelt System / Description and Operation / Seatbelt System - Input/ Output Diagram

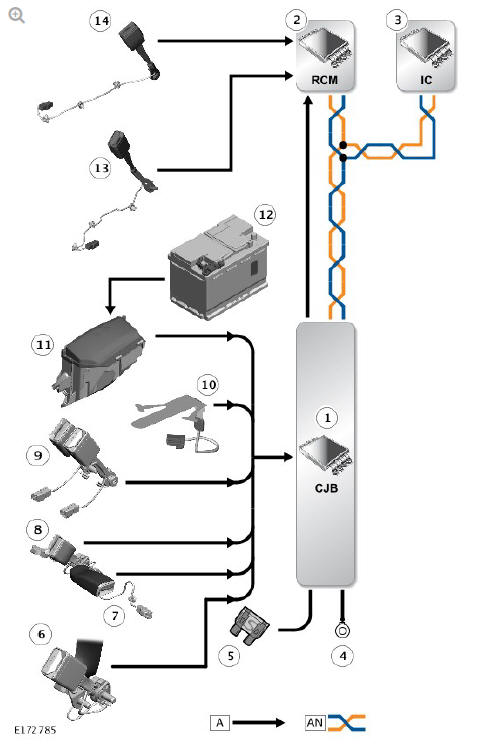

INPUT/OUTPUT DIAGRAM - SHEET 1 OF 4 - ROW - 5 SEAT VEHICLES

INPUT/OUTPUT DIAGRAM - SHEET 1 OF 4 - ROW - 5 SEAT VEHICLES

A = HARDWIRED; AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN BUS.

  1. CJB
  2. RCM
  3. IC
  4. Ground
  5. Fuse
  6. Rear seatbelt buckle
  7. Rear seatbelt buckle
  8. Occupant detection sensor
  9. Battery Junction Box (BJB)
  10. Battery
  11. Driver seat seatbelt buckle
  12. Passenger seat seatbelt buckle

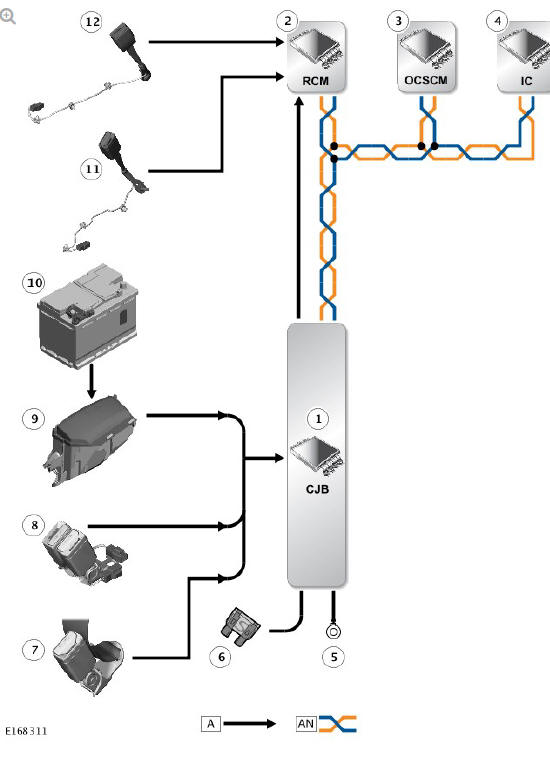

INPUT/OUTPUT DIAGRAM - SHEET 2 OF 4 - NAS - 5 SEAT VEHICLES

INPUT/OUTPUT DIAGRAM - SHEET 2 OF 4 - NAS - 5 SEAT VEHICLES

A = HARDWIRED; AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN BUS.

  1. CJB
  2. RCM
  3. OCSCM
  4. IC
  5. Ground
  6. Fuse
  7. Rear seatbelt buckle
  8. Rear seatbelt buckle
  9. Junction Box (BJB)
  10. Battery
  11. Driver seat seatbelt buckle
  12. Passenger seat seatbelt buckle

INPUT/OUTPUT DIAGRAM - SHEET 3 OF 4 - ROW - 7 SEAT VEHICLES

INPUT/OUTPUT DIAGRAM - SHEET 3 OF 4 - ROW - 7 SEAT VEHICLES

A = HARDWIRED; AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN BUS.

  1. CJB
  2. RCM
  3. IC
  4. Ground
  5. Fuse
  6. Rear left seatbelt buckle
  7. Rear center seatbelt buckle
  8. Rear right seatbelt buckle
  9. Third row seatbelt buckles
  10. Occupant detection sensor
  11. Junction Box (BJB)
  12. Battery
  13. Driver seat seatbelt buckle
  14. Passenger seat seatbelt buckle

INPUT/OUTPUT DIAGRAM - SHEET 4 OF 4 - NAS - 7 SEAT VEHICLES

INPUT/OUTPUT DIAGRAM - SHEET 4 OF 4 - NAS - 7 SEAT VEHICLES

A = HARDWIRED; AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN BUS.

  1. CJB
  2. RCM
  3. OCSCM
  4. IC
  5. Ground
  6. Fuse
  7. Rear left seatbelt buckle
  8. Rear center seatbelt buckle
  9. Rear right seatbelt buckle
  10. Third row seatbelt buckles
  11. Junction Box (BJB)
  12. Battery
  13. Driver seat seatbelt buckle
  14. Passenger seat seatbelt buckle
