Land Rover Discovery: Engine Cooling - Ingenium i4 2.0l Diesel Cooling System Draining

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Engine / Engine Cooling - Ingenium i4 2.0l Diesel Cooling System Draining, Filling and Bleeding (G1879552) / General Procedures / Engine Cooling - Ingenium i4 2.0l Diesel Cooling System Draining

Draining

CAUTIONS:

  • The engine cooling system must be maintained with the correct concentration and type of anti-freeze solution to prevent corrosion and frost damage. Failure to follow this instruction may result in damage to the engine.
  • Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

WARNINGS:

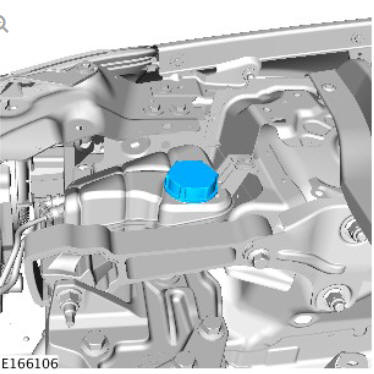

  • Release the cooling system pressure by slowly turning the coolant expansion tank cap a quarter of a turn. Cover the expansion tank cap with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.
  • Be prepared to collect escaping fluid.

CAUTION:

Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure.

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System Draining

Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).

Position a container to collect the fluid.

CAUTION:

Be prepared to collect escaping fluids.

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System Draining

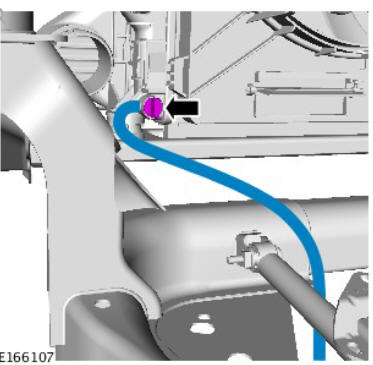

  • Attach a hose to the radiator drain tap. Open the tap.
  • Allow the coolant to drain into a suitable container.

Tighten the radiator drain tap.

CAUTION:

Be prepared to collect escaping coolant.

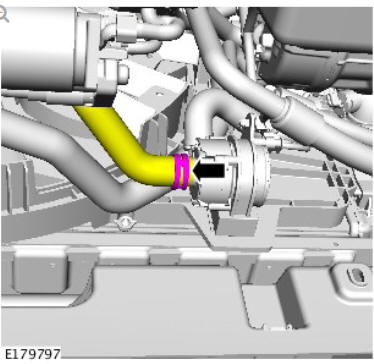

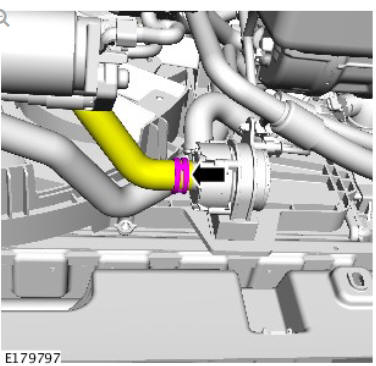

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System Draining

CAUTION:

Be prepared to collect escaping coolant.

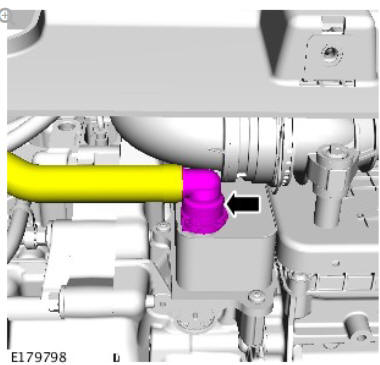

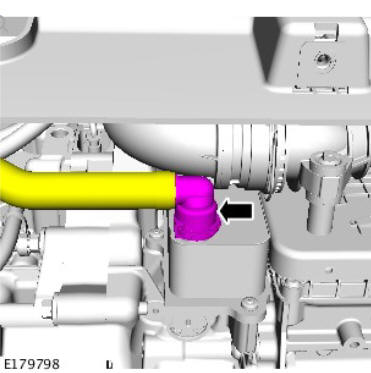

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System Draining

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System Draining

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System Draining

Remove the container.
