Land Rover Discovery: Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

Lower the vehicle.

Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior Trim and Ornamentation, Removal and Installation).

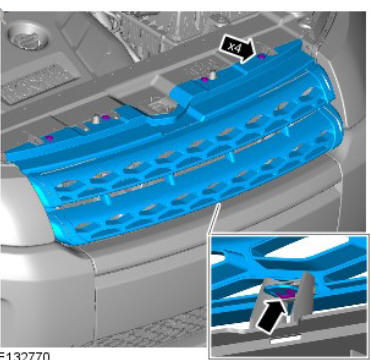

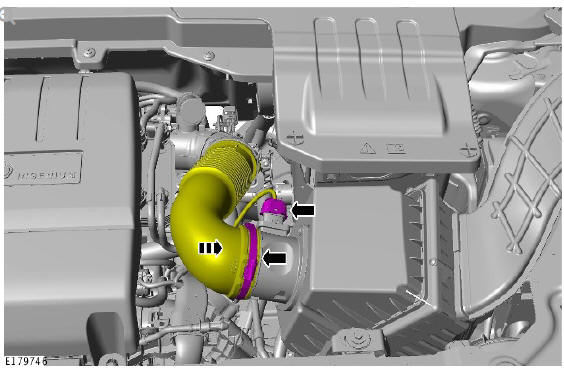

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

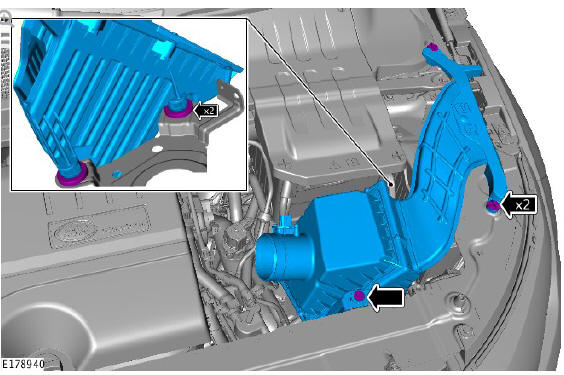

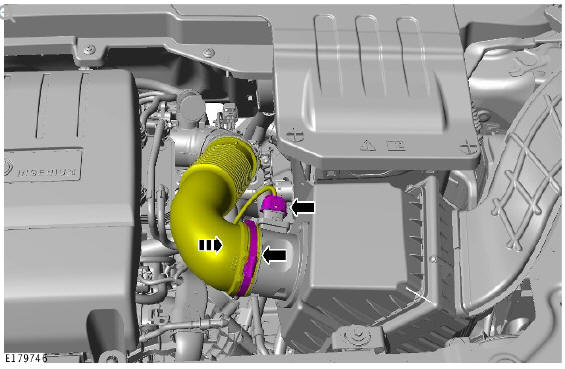

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

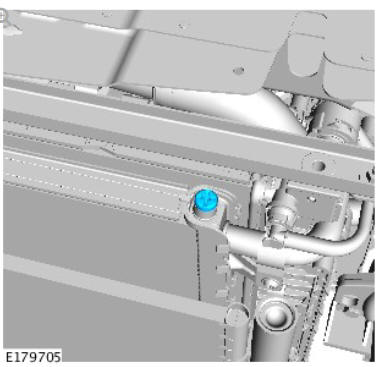

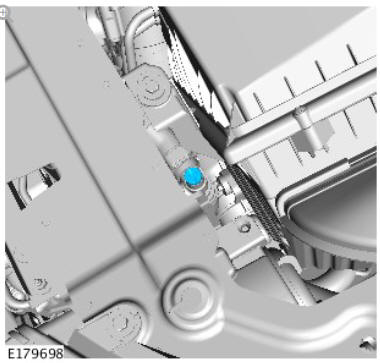

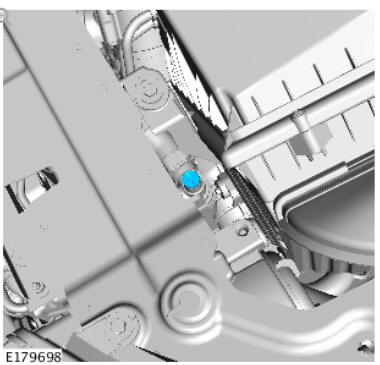

Remove the bleed screw.

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

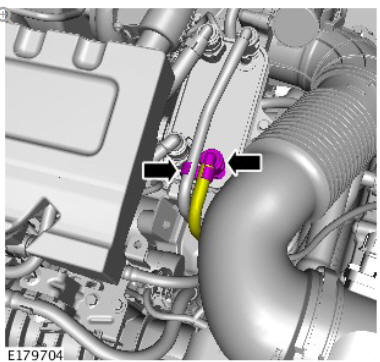

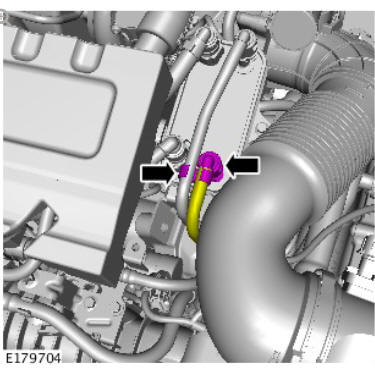

Remove the bleed screw.

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

Set the heater controls to maximum.

CAUTION:

Anti-freeze concentration must be maintained at 50%.

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

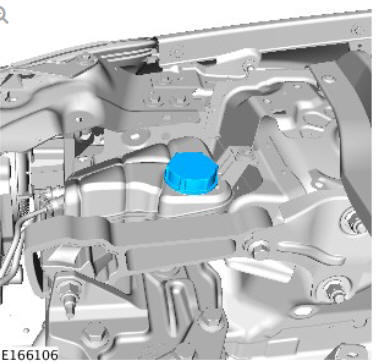

Fill the coolant expansion tank to the rim and continue until coolant is visible from the outlet.

Once coolant is visible from the outlet, close the bleeding point.

CAUTION:

Anti-freeze concentration must be maintained at 50%.

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

  • Fill the coolant expansion tank to the rim and continue until coolant is visible from the outlet.
  • Once coolant is visible from the outlet, close the bleeding point.

CAUTION:

Anti-freeze concentration must be maintained at 50%.

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

  • Fill the coolant expansion tank to the rim and continue until coolant is visible from the outlet.
  • Once coolant is visible from the outlet, install the pipe.

CAUTION:

Do not overfill the coolant expansion tank.

Continue to fill the coolant expansion tank until the coolant level stops dropping.

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

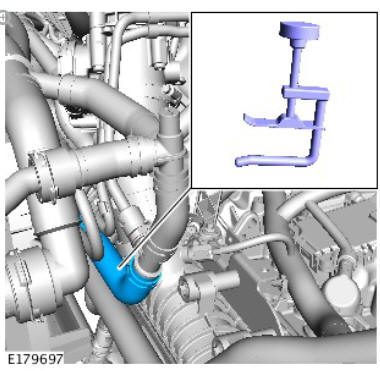

Clamp the hose.

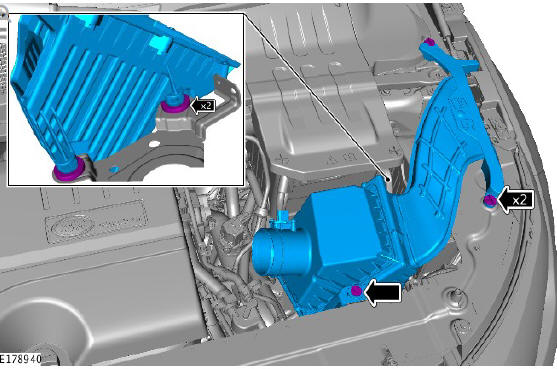

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

Torque: 8 Nm

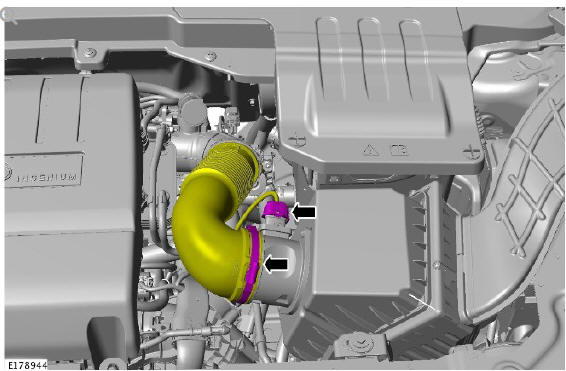

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

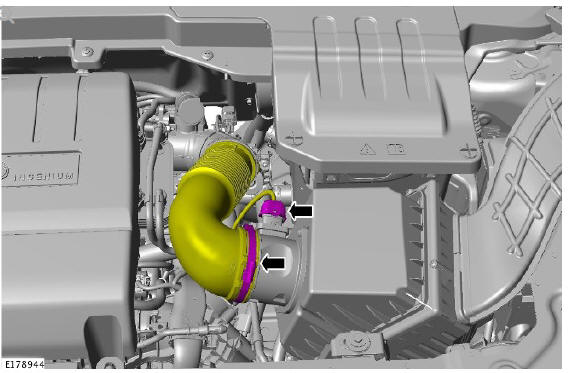

Torque: 3.5 Nm

CAUTION:

Make sure that the hood is open and the vehicle is in Park (P).

Start the engine and allow to idle for 5 minutes.

Switch off the engine.

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

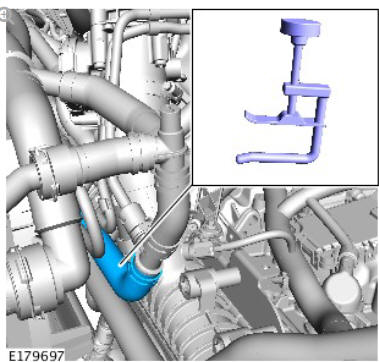

Remove the clamp.

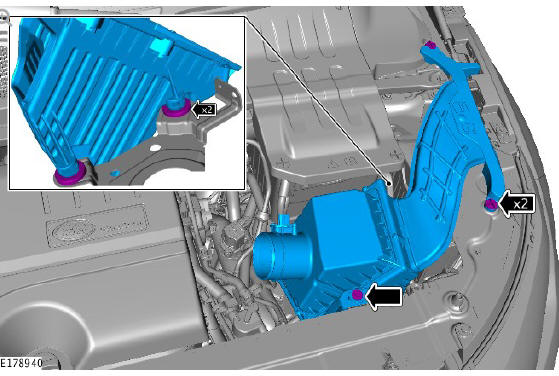

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

Torque: 8 Nm

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

Torque: 3.5 Nm

Start the engine.

Continue to top-up with coolant with the engine at idle.

  • Increase the engine speed to 2000 rpm.
  • Check and top-up the coolant if required.

CAUTION:

Correct installation of the coolant expansion tank cap can be obtained by tightening the cap until an audible click is heard.

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

Switch the heater off.

Raise the engine speed to 2500 rpm for 10 minutes.

Allow the engine to idle for 2 minutes.

Switch the engine off and allow to cool.

Fill the coolant level in the expansion tank, to the maximum cold fill line.

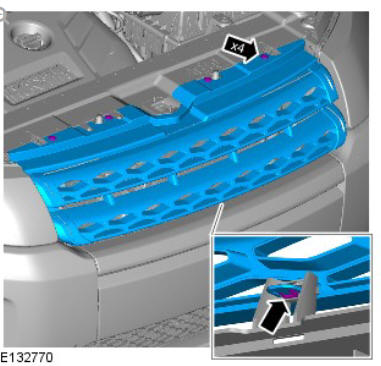

Engine Cooling - Ingenium i4 2.0l Diesel Cooling System  Filling

Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior Trim and Ornamentation, Removal and Installation).

Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).
