Land Rover Discovery: Engine Cooling - Ingenium i4 2.0l Diesel Cooling System Partial Draining,
Filling and Bleeding (G1879553) / General Procedures
DRAINING
CAUTIONS:
- The engine cooling system must be maintained with the correct
concentration and type of anti-freeze solution to prevent corrosion
and frost damage. Failure to follow this instruction may result in
damage to the engine.
- Engine coolant will damage the paint finished surfaces. If spilt,
immediately remove the coolant and clean the area with water.
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
WARNINGS:

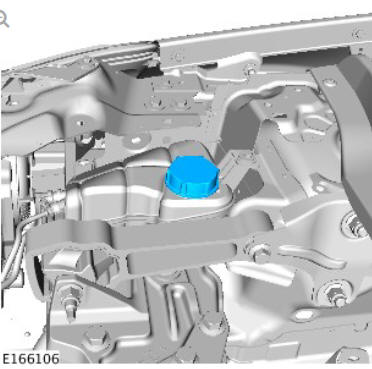

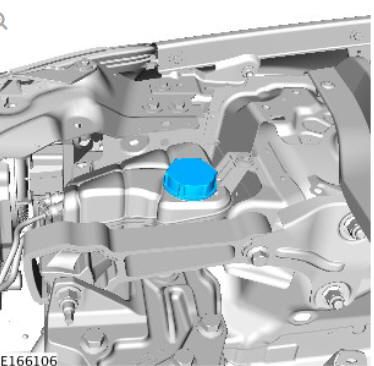

- Release the cooling system pressure by slowly turning the
coolant expansion tank cap a quarter of a turn. Cover the
expansion tank cap with a thick cloth to prevent the
possibility of scalding. Failure to follow this instruction may
result in personal injury.
- Be prepared to collect escaping fluid.
- Since injury such as scalding could be caused by escaping
steam or coolant, make sure the vehicle cooling system is
cool prior to carrying out this procedure.
Refer to: Engine Undershield (501-02 Front End Body Panels,
Removal and Installation).
Position a container to collect the fluid.
CAUTION:
Be prepared to collect escaping fluids.

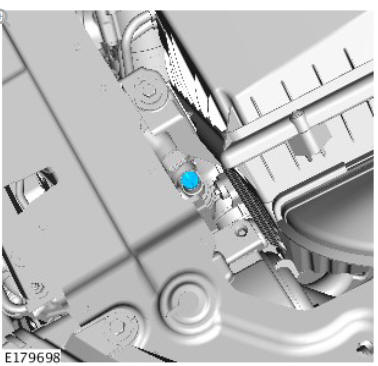

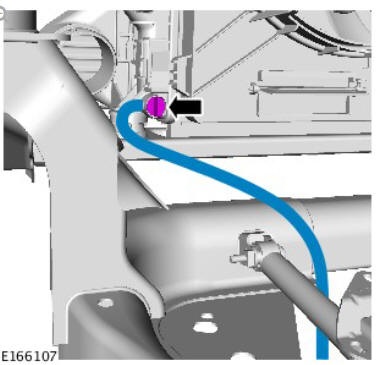

- Attach a hose to the radiator drain tap. Open the tap.
- Allow the coolant to drain into a suitable container.
Tighten the radiator drain tap.
Remove the container.
FILLING
Lower the vehicle.
Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior
Trim and Ornamentation, Removal and Installation).

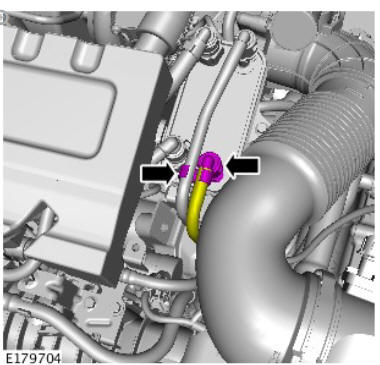

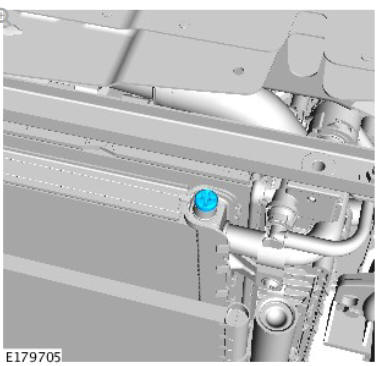

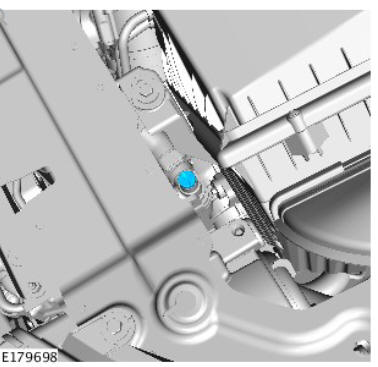

Remove the bleed screw.
Remove the bleed screw.
Set the heater controls to maximum.
CAUTION:
Anti-freeze concentration must be maintained at 50%.
- Fill the coolant expansion tank to the rim and continue until
coolant is visible from the outlet.
- Once coolant is visible from the outlet, close the bleeding
point.
CAUTION:
Anti-freeze concentration must be maintained at 50%.
- Fill the coolant expansion tank to the rim and continue until
coolant is visible from the outlet.
- Once coolant is visible from the outlet, close the bleeding
point.
CAUTION:
Anti-freeze concentration must be maintained at 50%.
- Fill the coolant expansion tank to the rim and continue until
coolant is visible from the outlet.
- Once coolant is visible from the outlet, install the pipe.
CAUTION:
Do not overfill the coolant expansion tank.
Continue to fill the coolant expansion tank until the coolant level
stops dropping.

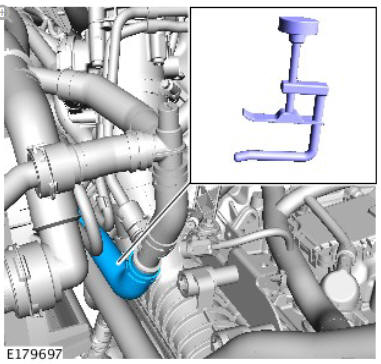

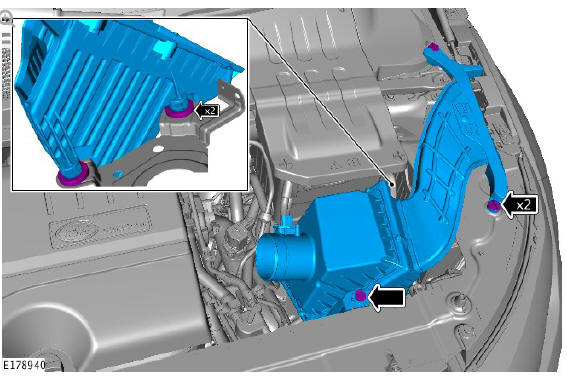

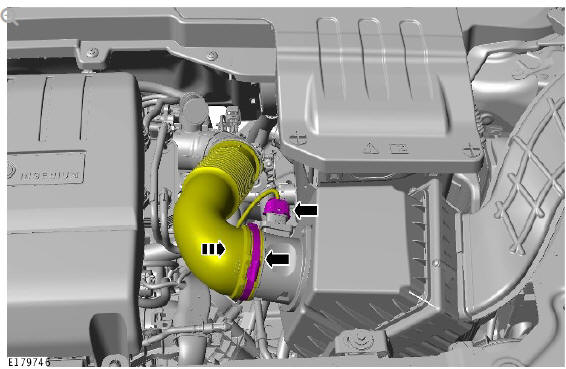

Clamp the hose.
Torque: 8 Nm
Torque: 3.5 Nm
CAUTION:
Make sure that the hood is open and the vehicle is in Park (P).
Start the engine and allow to idle for 5 minutes.
Switch off the engine.

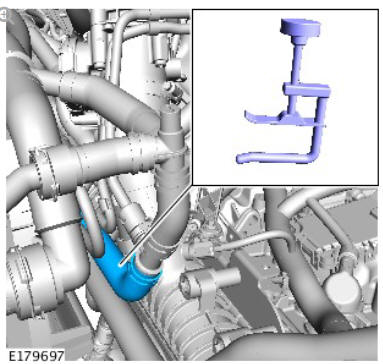

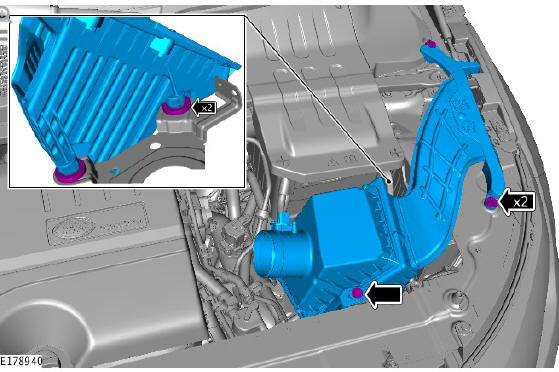

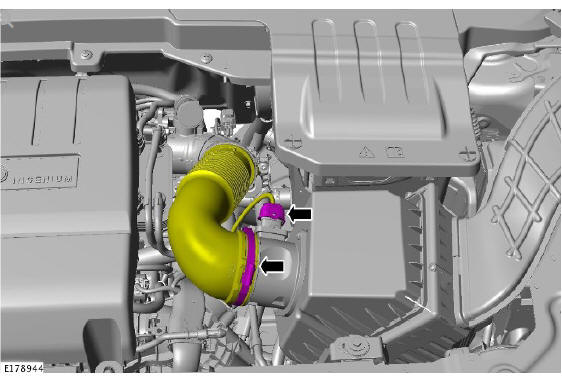

Remove the clamp.
Torque: 8 Nm
Torque: 3.5 Nm
Start the engine.
Continue to top-up with coolant with the engine at idle.
- Increase the engine speed to 2000 rpm.
- Check and top-up the coolant if required.
CAUTION:
Correct installation of the coolant expansion tank cap can be
obtained by tightening the cap until an audible click is heard
Switch the heater off.
Raise the engine speed to 2500 rpm for 10 minutes.
Allow the engine to idle for 2 minutes.
Switch the engine off and allow to cool.
Fill the coolant level in the expansion tank, to the maximum cold fill
line.
Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior
Trim and Ornamentation, Removal and Installation).
Refer to: Engine Undershield (501-02 Front End Body Panels,
Removal and Installation).
