Land Rover Discovery: Engine Cooling - Ingenium i4 2.0l Diesel Radiator (G1879557) / Removal and
Installation
REMOVAL
WARNING:
Cooling fans may continue to operate after the engine is turned off.
They may also start to operate after the engine is turned off and
continue operating for up to 10 minutes.
CAUTION:
Be prepared to collect escaping coolant.
NOTES:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Removal steps in this procedure may contain installation details.
- Some components shown removed for clarity.
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering -
INGENIUM I4 2.0L Diesel, Removal and Installation).
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and
Installation).
Refer to: Condenser - TD4 2.2L Diesel (412-01 Climate Control,
Removal and Installation).
Refer to: Cooling System Partial Draining and Vacuum Filling (303-
03B Engine Cooling - INGENIUM I4 2.0L Diesel, General
Procedures).
Refer to: Coolant Pump - Charge Air Cooler (303-03B Engine
Cooling - INGENIUM I4 2.0L Diesel, Removal and Installation).

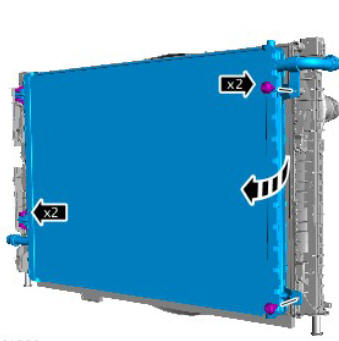

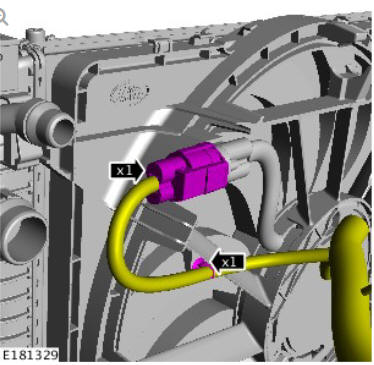

.jpg)

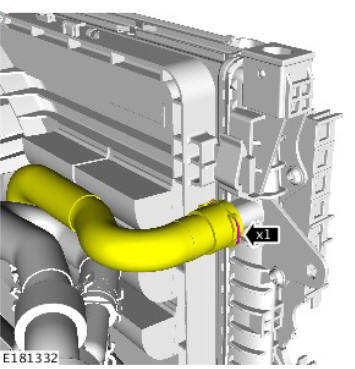

.jpg)

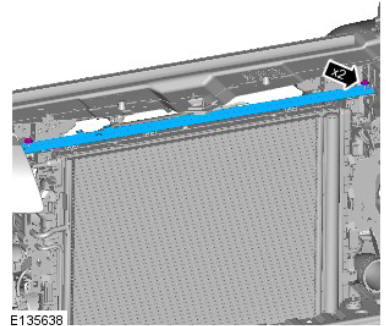

.jpg)

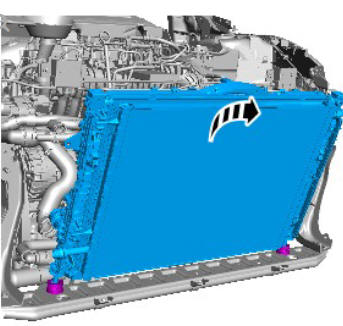

.jpg)

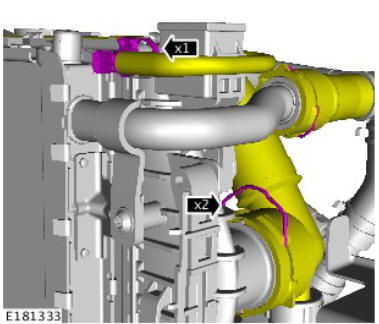

.jpg)
Torque: 5 Nm

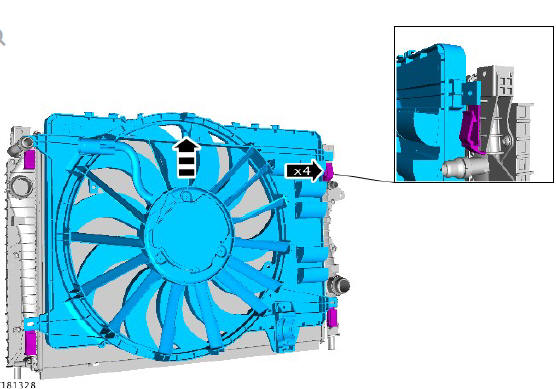

.jpg)
Do not disassemble further if removed for access only

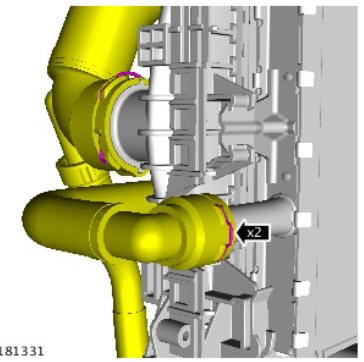

.jpg)
.jpg)
INSTALLATION
- To install, reverse the removal procedure.
