Land Rover Discovery: Front Drive Halfshafts Front Right Halfshaft - RHD AWD- lHD AWD (G1794495) -
Removal

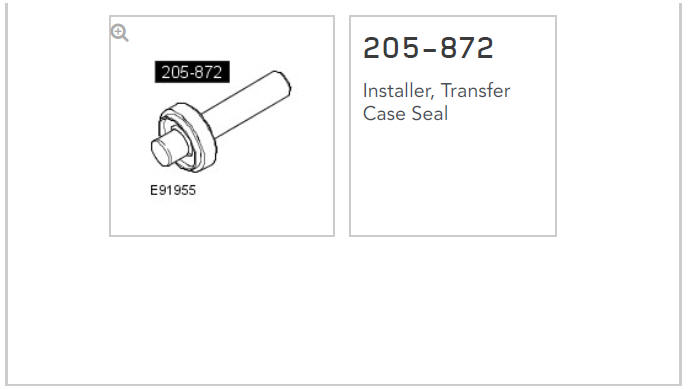

SPECIAL TOOL(S)
.jpg)
.jpg)
Removal
CAUTIONS:
- Nuts and bolts must be tightened with the weight of the vehicle on
the suspension.
- Do not allow halfshafts to hang unsupported at one end or joint
damage will occur.

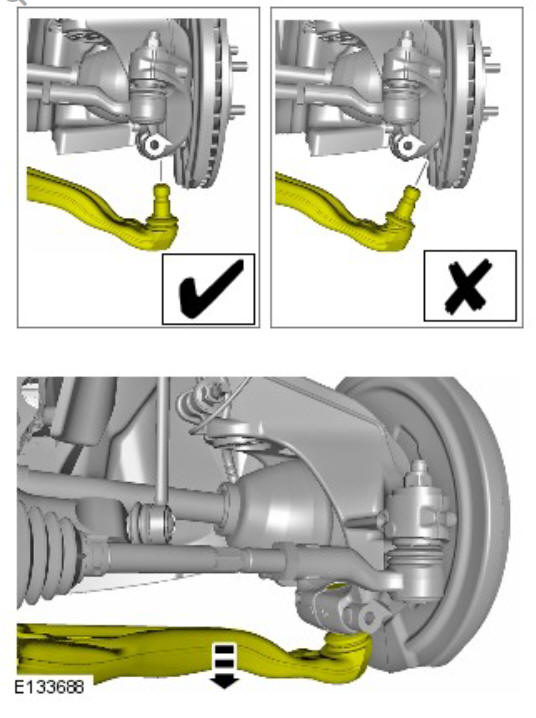

- Make sure the halfshaft constant velocity (CV) joints do not over
articulate. Failure to follow this instruction may result in damage to
the CV joints.
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and
Installation).

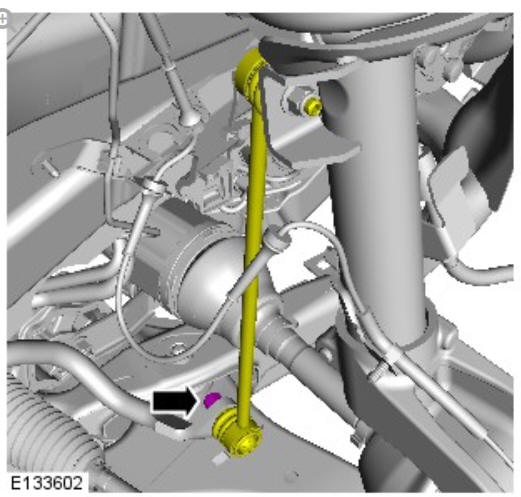

CAUTION:
Discard the nut.
.jpg)
.jpg)

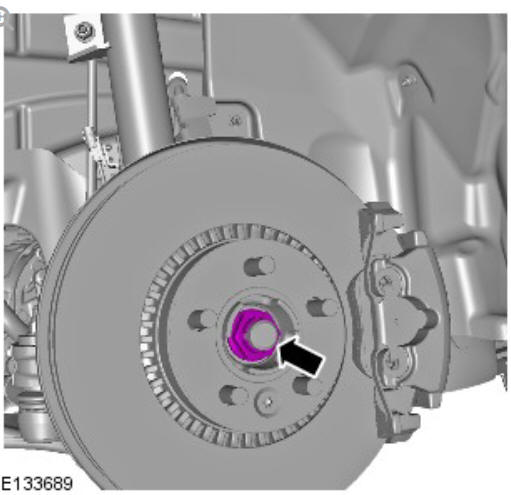

CAUTION:
Do not use air tools to remove the nut. Failure to follow this
instruction may result in damage to the component.
NOTE:
Retain the nut for the instillation.

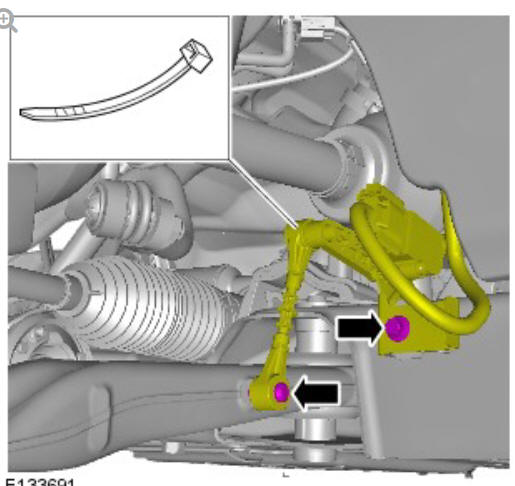

.jpg)

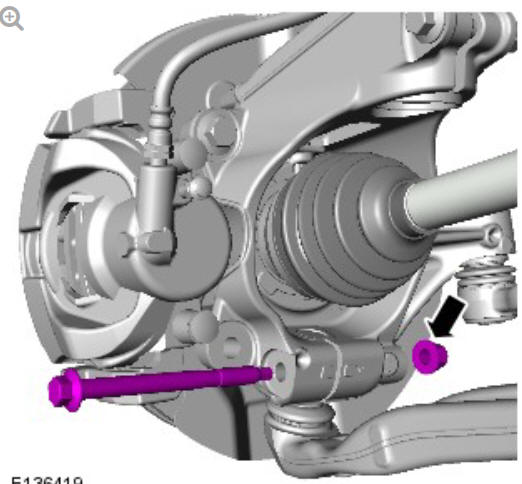

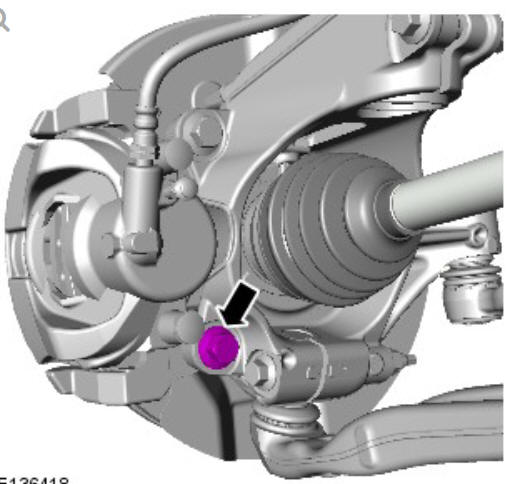

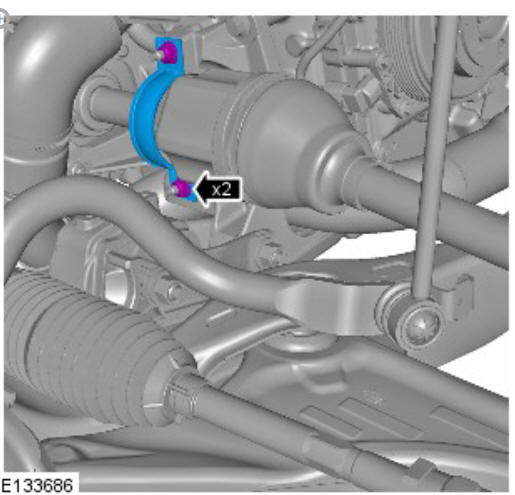

CAUTION:
Discard the bolt.
.jpg)
.jpg)
.jpg)
CAUTIONS:
- Make sure that the driveshaft is supported with suitable
retaining straps.
- Do not use a hammer to detach the halfshaft from the hub
assembly, failure to follow this instruction may result in
damage to the halfshaft.
.jpg)

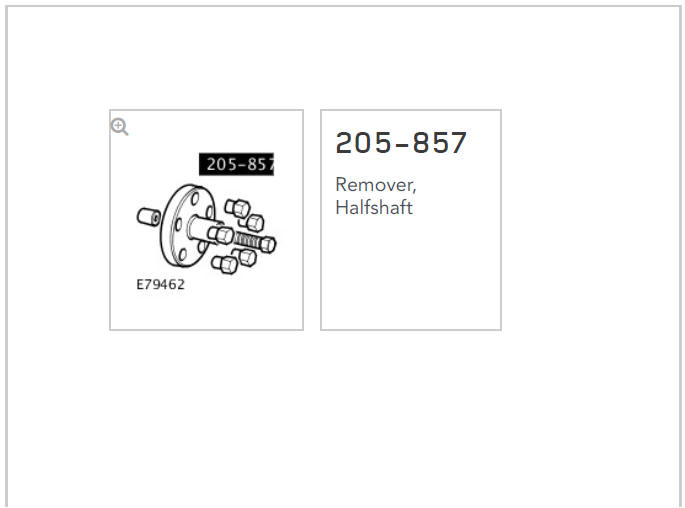

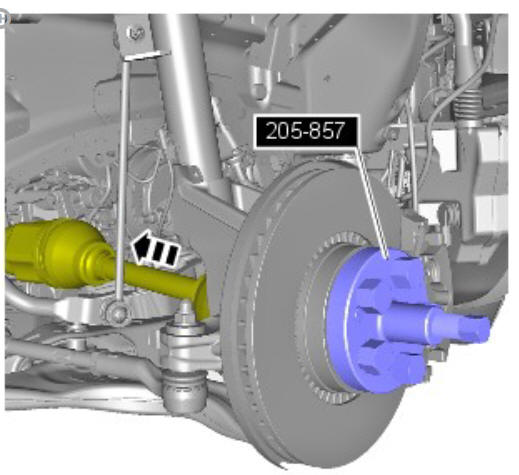

Special Tool(s): 205-857
.jpg)
WARNING:
Be prepared to collect escaping fluids.

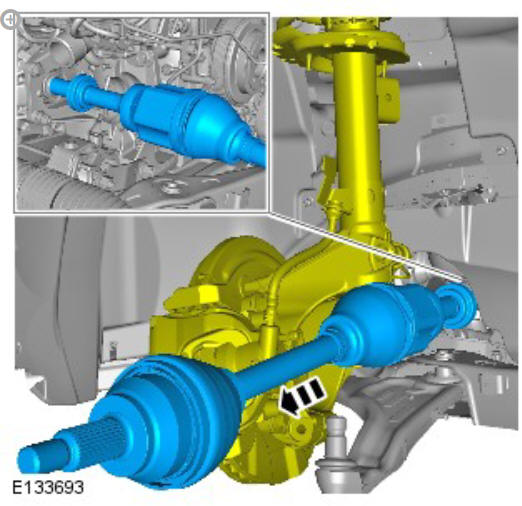

CAUTION:
Keep the halfshaft horizontal to avoid damaging the oil seal.
.jpg)

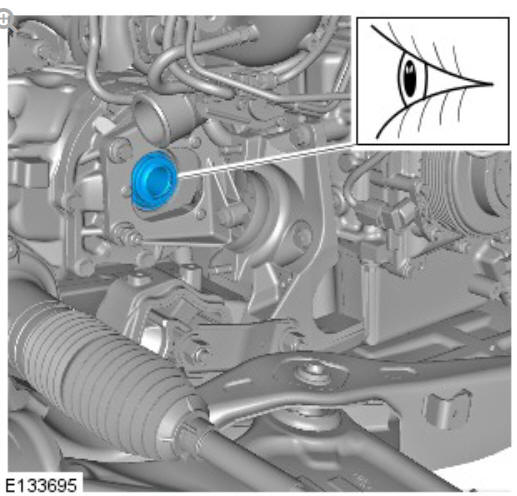

CAUTIONS:
- Inspect the seal, replace if damaged
- Take extra care not to damage the mating faces.
.jpg)
