Land Rover Discovery: Front Drive Halfshafts Inner Constant Velocity Joint Boot (G1794497) -
Removal
SPECIAL TOOL(S)

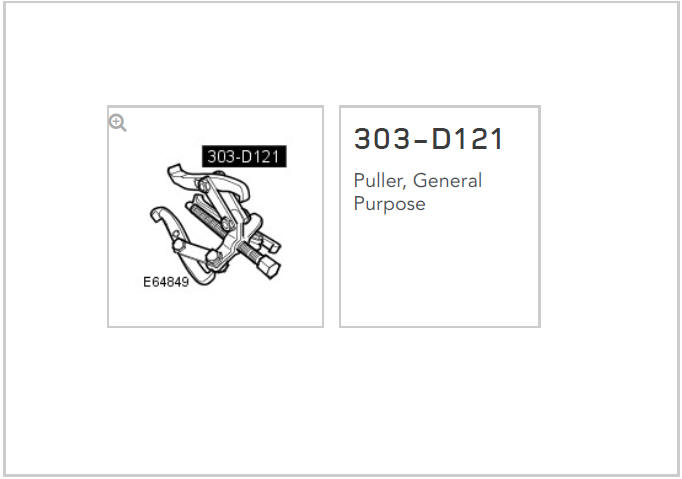

![Front drive halfshafts inner constant velocity joint boot (G1794497) - Removal](images/books/227/index216(4).jpg)
REMOVAL
NOTES:
- LH illustration shown, RH is similar.
- Some variation in the illustrations may occur, but the essential
information is always correct.
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Refer to: Front Halfshaft LH (205-04, Removal and Installation).
Refer to: Front Halfshaft RH - RHD AWD/LHD AWD (205-04,
Removal and Installation).
Refer to: Front Halfshaft RH - FWD (205-04, Removal and
Installation).
NOTE:
Discard the retaining clips.

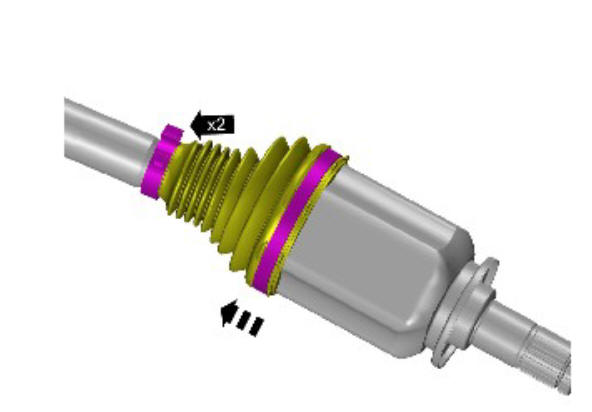

![Front drive halfshafts inner constant velocity joint boot (G1794497) - Removal](images/books/227/index217(3).jpg)
CAUTIONS:
- Use suitable protective covers to protect the halfshaft.
- Make sure that the constant velocity (CV) joint is positioned
as illustrated.

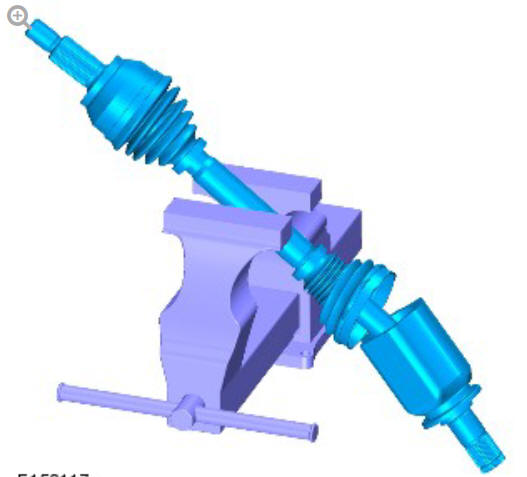

![Front drive halfshafts inner constant velocity joint boot (G1794497) - Removal](images/books/227/index218(4).jpg)
CAUTION:
Using a suitable soft drift, strike the joint in the areas
indicated to release it from the shaft.

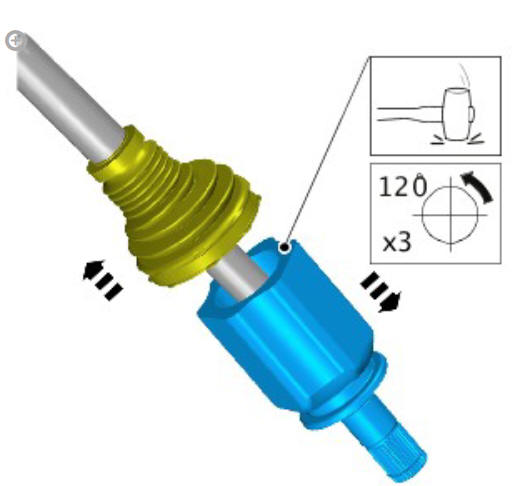

![Front drive halfshafts inner constant velocity joint boot (G1794497) - Removal](images/books/227/index219(4).jpg)
CAUTION:
Using a suitable soft drift, strike the component in the
direction shown to allow easy release of the retaining clip.

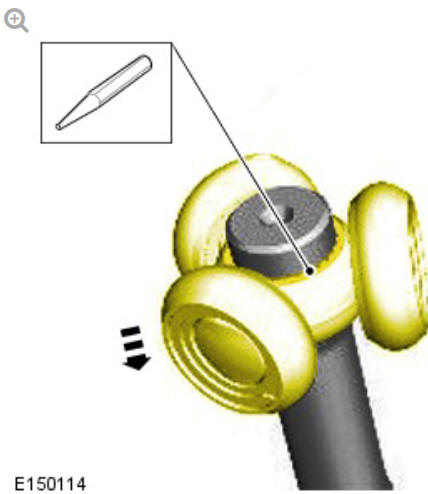

![Front drive halfshafts inner constant velocity joint boot (G1794497) - Removal](images/books/227/index220(4).jpg)

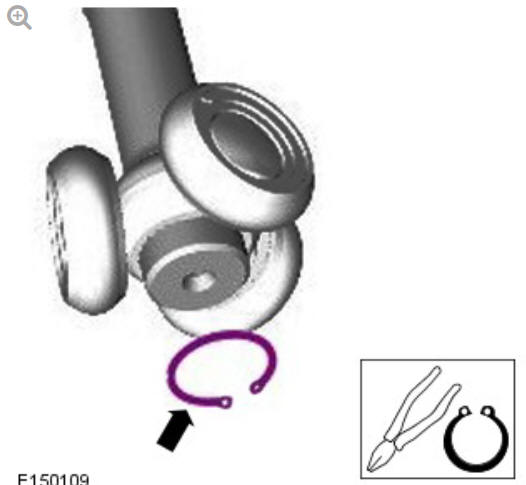

![Front drive halfshafts inner constant velocity joint boot (G1794497) - Removal](images/books/227/index221(4).jpg)
NOTE:
Note the orientation of the component prior to removal.
![Front drive halfshafts inner constant velocity joint boot (G1794497) - Removal](images/books/227/index222(4).jpg)

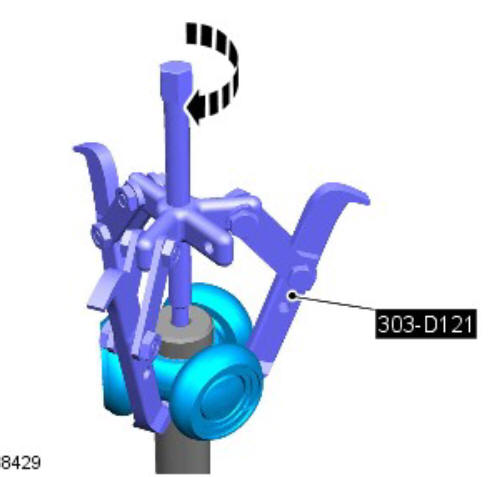

Special Tool(s): 303-D121

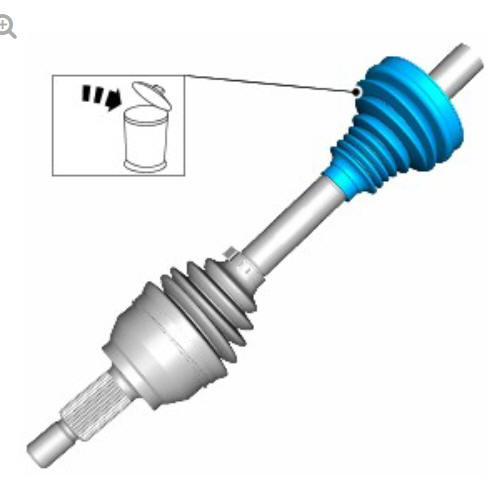

![Front drive halfshafts inner constant velocity joint boot (G1794497) - Removal](images/books/227/index223(3).jpg)
