Land Rover Discovery: Front Drive Halfshafts Inner Constant Velocity Joint Boot (G1794497)   - Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Driveline / Front Drive Halfshafts Inner Constant Velocity Joint Boot (G1794497) / Front Drive Halfshafts Inner Constant Velocity Joint Boot (G1794497)   - Installation

CAUTION:

Extreme cleanliness must be exercised when handling these components.

Clean and inspect the components for deterioration.

NOTES:

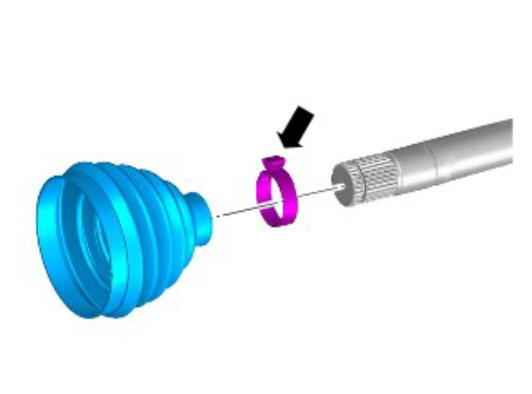

  • Install a new retaining clamp.
  • Install a new inner joint boot.

Front drive halfshafts inner constant velocity joint boot (G1794497) - Installation

CAUTION:

Make sure that the component is installed to the noted removal position.

NOTE:

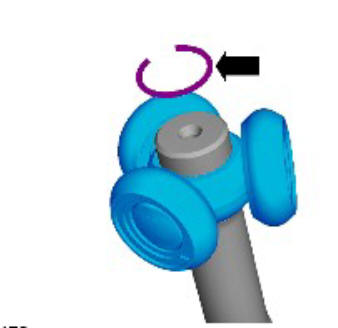

The retaining ring is to be reused unless damaged.

Front drive halfshafts inner constant velocity joint boot (G1794497) - Installation

Front drive halfshafts inner constant velocity joint boot (G1794497) - Installation

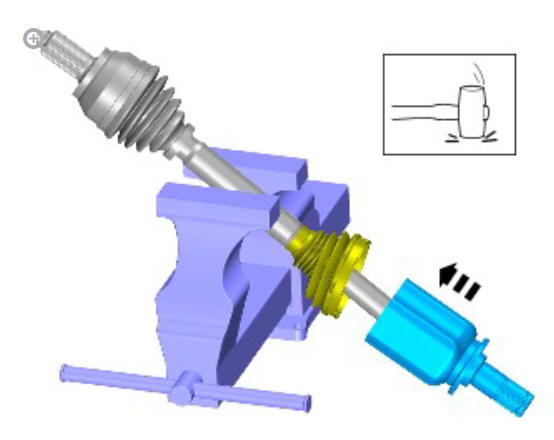

Using a suitable soft faced hammer, strike the CV joint in the direction shown to install to the shaft.

CAUTION:

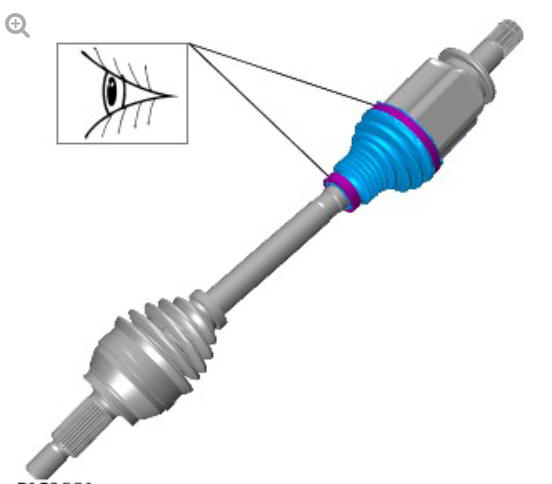

Make sure that the inner CV joint boot is correctly installed.

NOTE:

Make sure that the retaining clips are correctly installed.

Front drive halfshafts inner constant velocity joint boot (G1794497) - Installation

  1. Pack the CV joint with the grease supplied.

Refer to: Front Halfshaft LH (205-04, Removal and Installation).

Refer to: Front Halfshaft RH - RHD AWD/LHD AWD (205-04, Removal and Installation).

Refer to: Front Halfshaft RH - FWD (205-04, Removal and Installation).
