Land Rover Discovery: Front Drive Halfshafts Outer Constant Velocity Joint Boot (G1794498)  - Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Driveline / Front Drive Halfshafts Outer Constant Velocity Joint Boot (G1794498) / Front Drive Halfshafts Outer Constant Velocity Joint Boot (G1794498)  - Installation

Installation

CAUTION:

Extreme cleanliness must be exercised when handling these components.

Clean and inspect the components for deterioration.

NOTE:

Make sure a new retaining ring is to be installed.

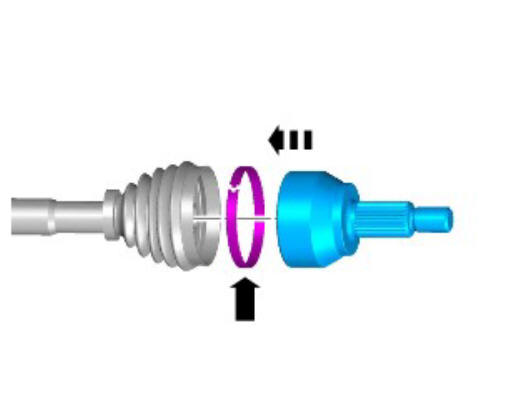

Front drive halfshafts outer constant velocity joint boot (G1794498)  - Installation

NOTES:

  • Install a new retaining clamp.
  • Install a new outer joint boot.

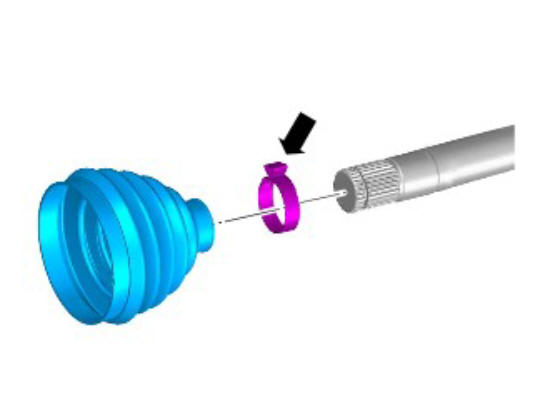

Front drive halfshafts outer constant velocity joint boot (G1794498)  - Installation

CAUTION:

Make sure that a new retaining clip is to be installed.

Front drive halfshafts outer constant velocity joint boot (G1794498)  - Installation

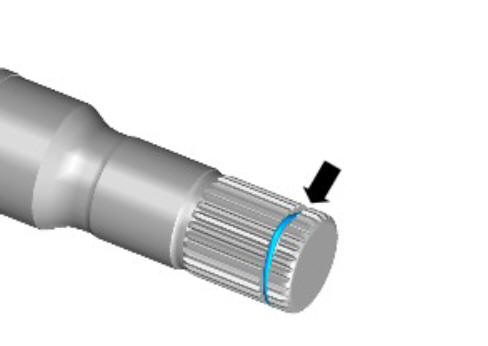

  1. Pack the outer CV joint with the grease supplied.

NOTE:

Make sure that component is installed to the noted removal position.

Front drive halfshafts outer constant velocity joint boot (G1794498)  - Installation

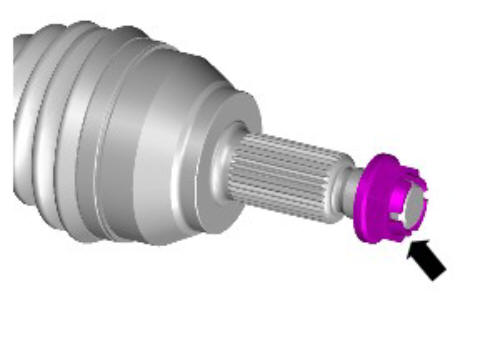

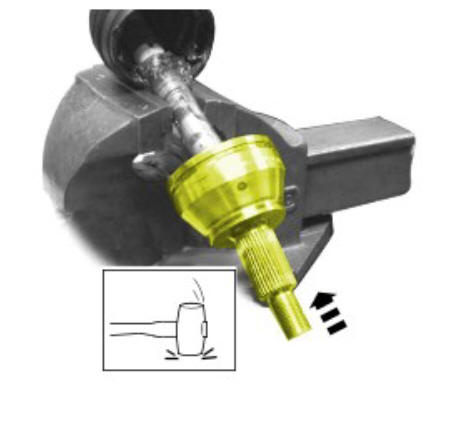

Using a suitable soft faced hammer, strike the CV joint in the direction shown.

NOTE:

Remove and discard the nut.

Front drive halfshafts outer constant velocity joint boot (G1794498)  - Installation

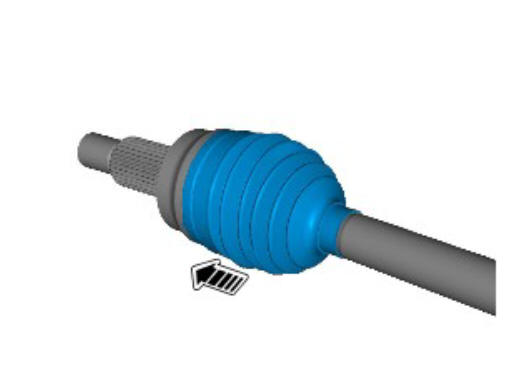

Front drive halfshafts outer constant velocity joint boot (G1794498)  - Installation

CAUTION:

Make sure that a new retaining clips are to be installed.

NOTES:

  • Make sure that the outer CV joint boot is correctly installed.
  • Make sure that the retaining clips are correctly installed.

Front drive halfshafts outer constant velocity joint boot (G1794498)  - Installation

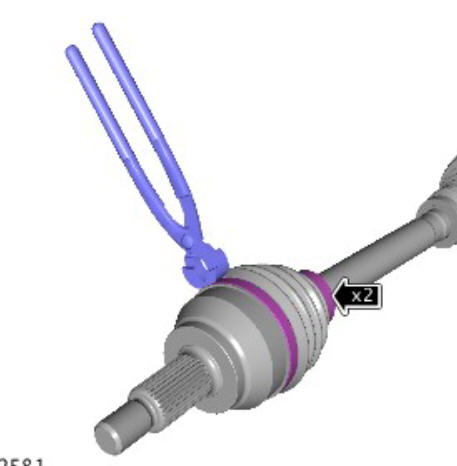

Using the special tool secure the CV joint boot clips.

Special Tool(s): 100-050

install the front halfshaft.

Refer to: Front Left Halfshaft (205-04 Front Drive Halfshafts, Removal and Installation).

Refer to: Front Right Halfshaft - RHD AWD/LHD AWD (205-04 Front Drive Halfshafts, Removal and Installation).

Refer to: Front Right Halfshaft - FWD (205-04 Front Drive Halfshafts, Removal and Installation).

Front drive halfshafts specifications

General Specification

General Specification

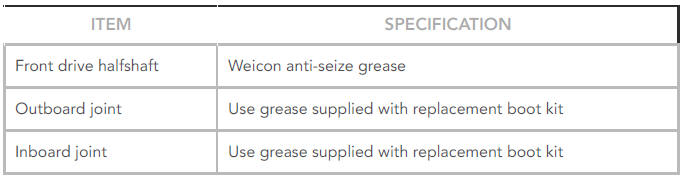

Recommended Lubricant

Recommended Lubricant

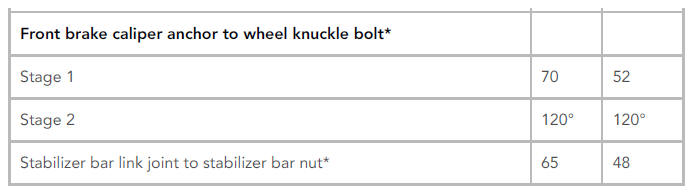

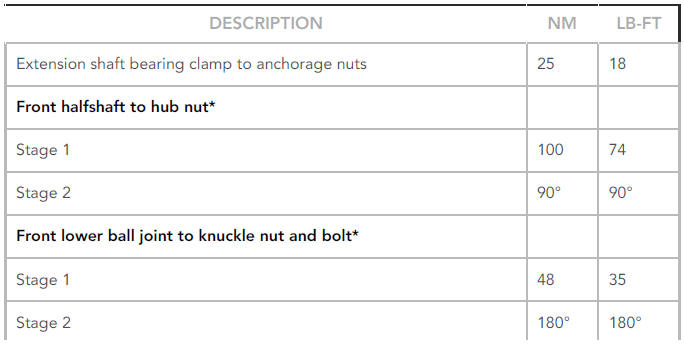

Torque Specifications

Torque Specifications

Torque Specifications

* New nuts/bolts must be installed
