Land Rover Discovery: Front Drive Halfshafts Front Right Halfshaft - RHD AWD- lHD AWD (G1794495) -
Installation
Installation
CAUTIONS:
- Make sure that the mating faces are clean and free of
corrosion and foreign material.
- Make sure the seal is installed correctly.
NOTE:
This step is only required if previously removed.
.jpg)

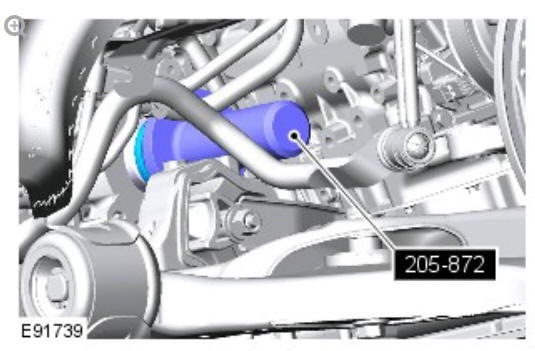

Special Tool(s): 205-872

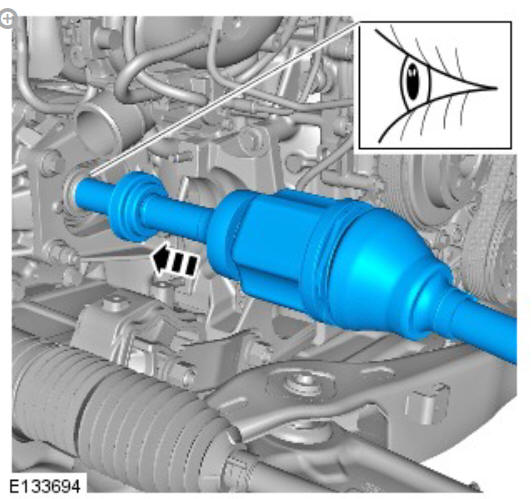

CAUTION:
Keep the halfshaft horizontal to avoid damaging the oil seal.
.jpg)

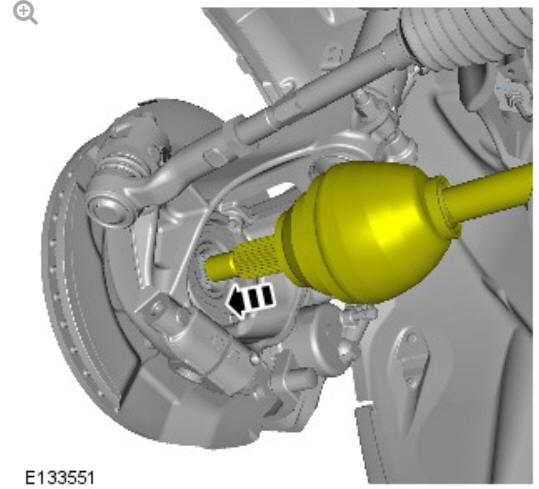

CAUTION:
LH illustration shown, RH is similar.
.jpg)
.jpg)

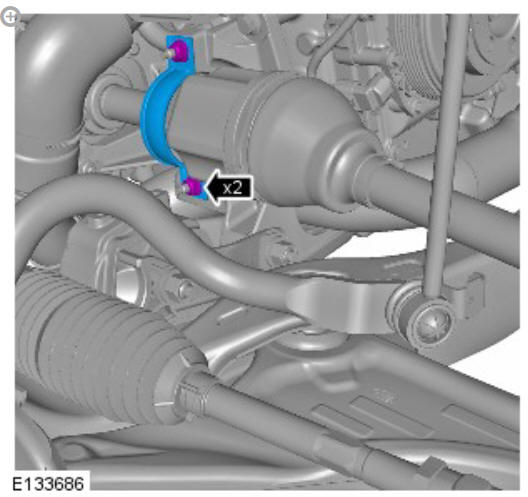

Torque: 25 Nm
.jpg)

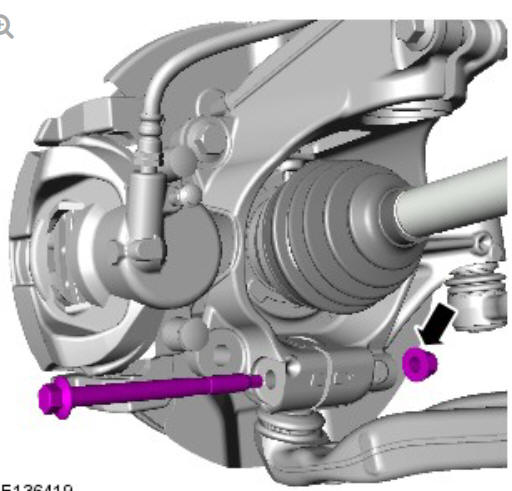

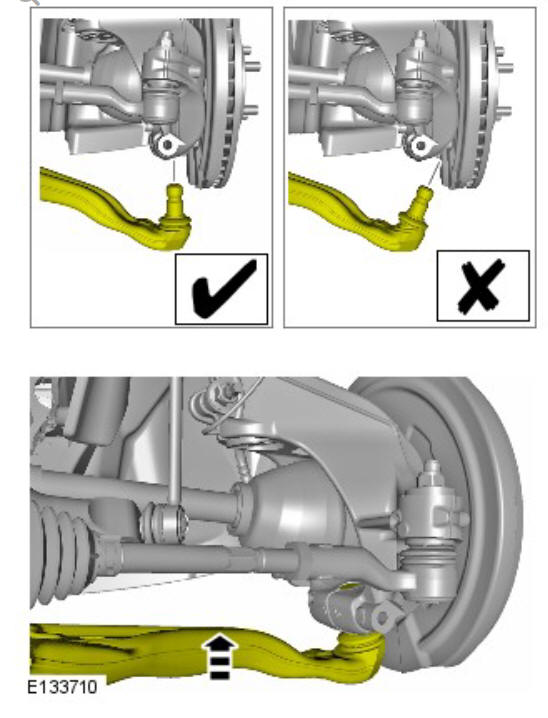

CAUTION:
Make sure that a new bolt is installed.
.jpg)
Torque:
Stage 1: 80 Nm
Stage 2: 180º

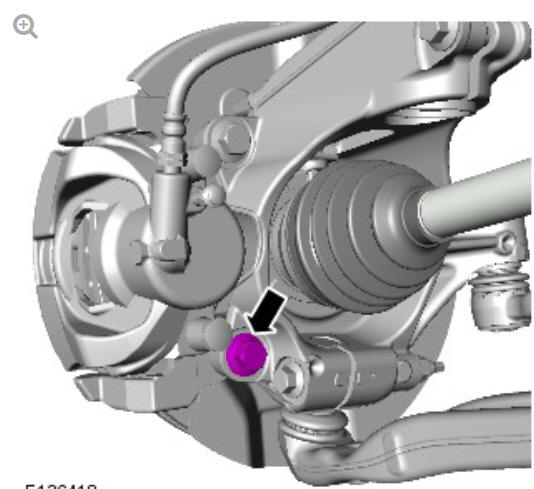

CAUTION:
Make sure that a new bolt is installed.
.jpg)
Torque:
Stage 1: 90 Nm
Stage 2: 120º
CAUTIONS:
- Install the retained nut.
- Do not use air tools to install the nut. Failure to follow this
instruction may result in damage to the component.
- Tighten the nut without the weight of the vehicle on the
suspension.
.jpg)
Torque: 175 Nm

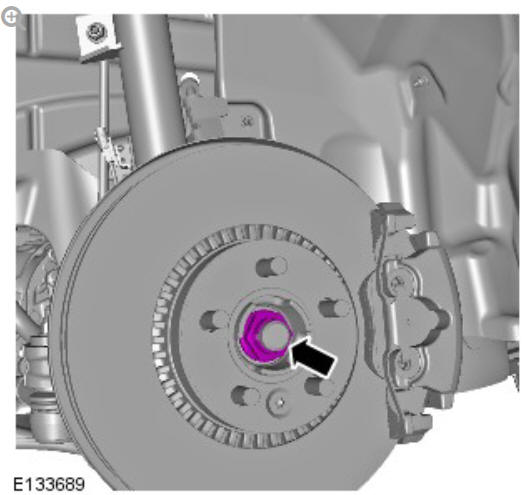

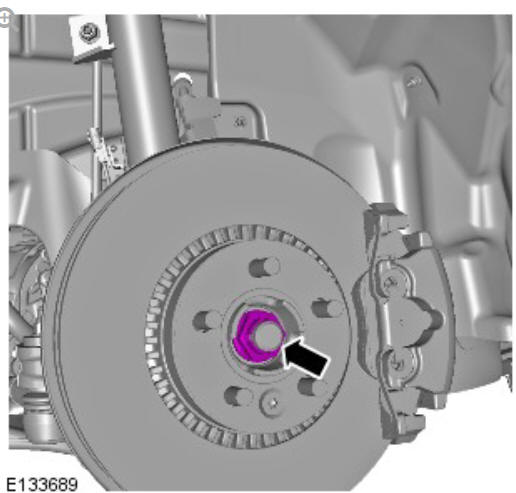

Remove and discard the halfshaft retaining nut.
WARNING:
Install a new nut.
CAUTIONS:
- Do not use air tools to install the nut. Failure to follow this
instruction may result in damage to the component.
- Tighten the nut without the weight of the vehicle on the
suspension.
.jpg)
Torque:
Stage 1: 100 Nm
Stage 2: 90º

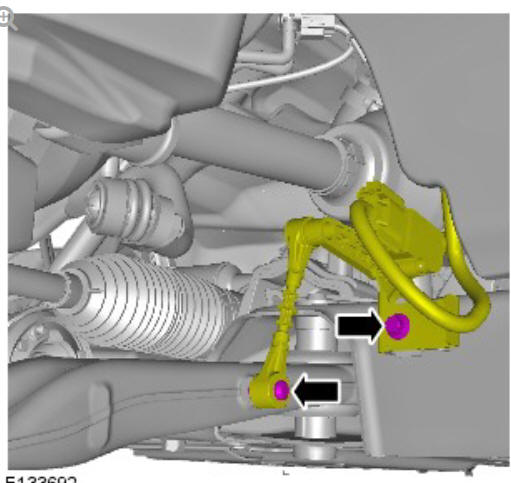

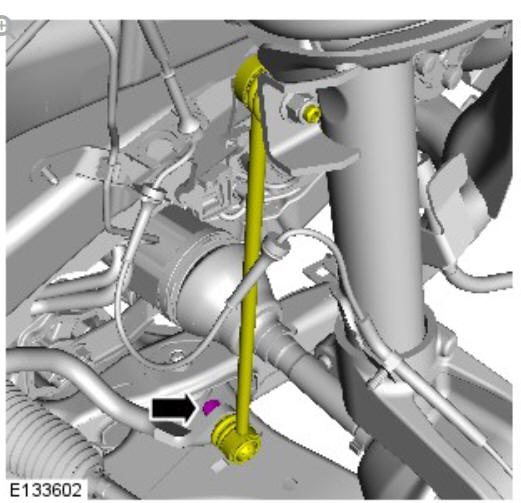

.jpg)
Torque: 10 Nm
WARNING:
Make sure that a new nut is installed.
.jpg)
Torque: 65 Nm
Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

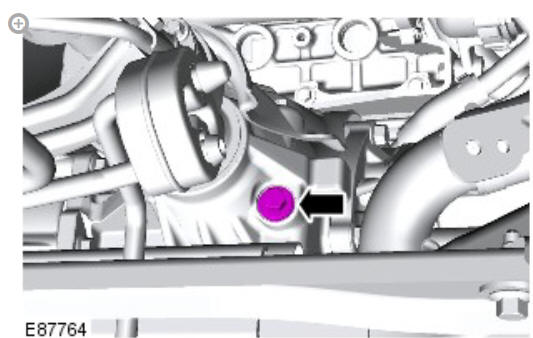

CAUTION:
The fluid filler plug is not a fluid level plug.
.jpg)
Check and top-up the transfer case fluid level.
Using only four wheel alignment equipment approved by Land
Rover, check and adjust the wheel alignment.
Refer to: Four Wheel Alignment (204-00 Suspension System -
General Information, General Procedures).
