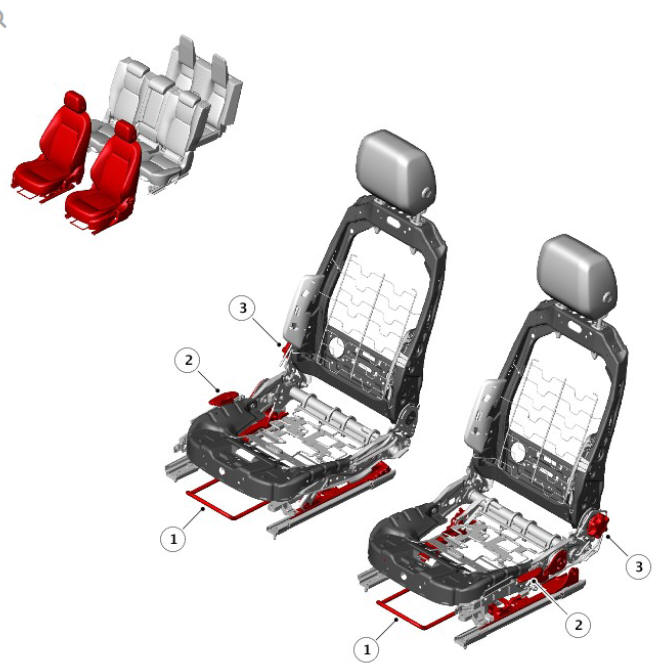

Component location - manual front seat adjustment

  1. Seat forward/rearward adjustment lever
  2. Seat height adjustment lever
  3. Seat backrest recline adjustment knob

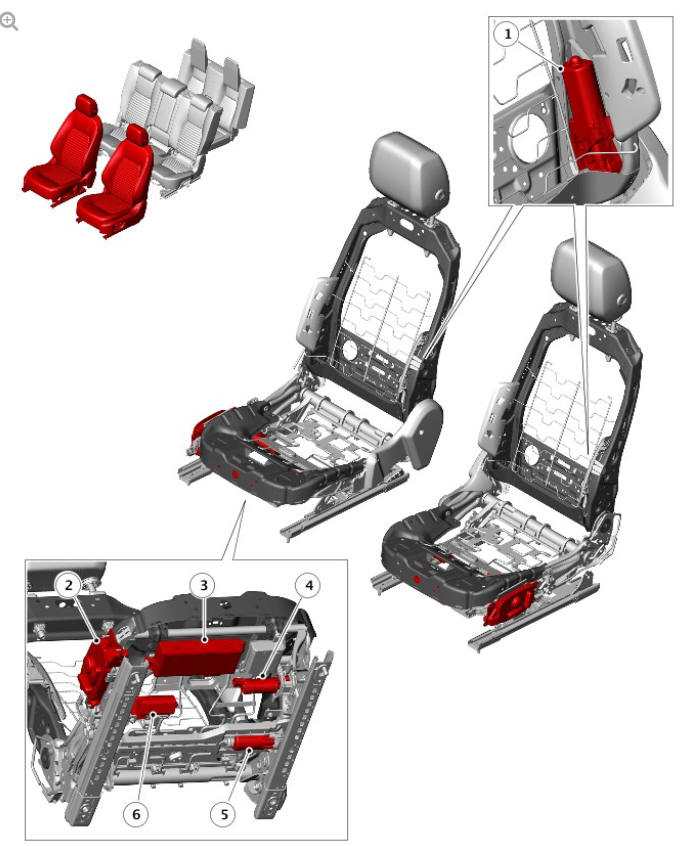

COMPONENT LOCATION - ELECTRIC FRONT SEAT ADJUSTMENT

COMPONENT LOCATION - ELECTRIC FRONT SEAT ADJUSTMENT

  1. Seat backrest recline motor
  2. Seat switchpack
  3. Seat module
  4. Seat cushion tilt motor
  5. Seat forward/rearward motor
  6. Seat height motor

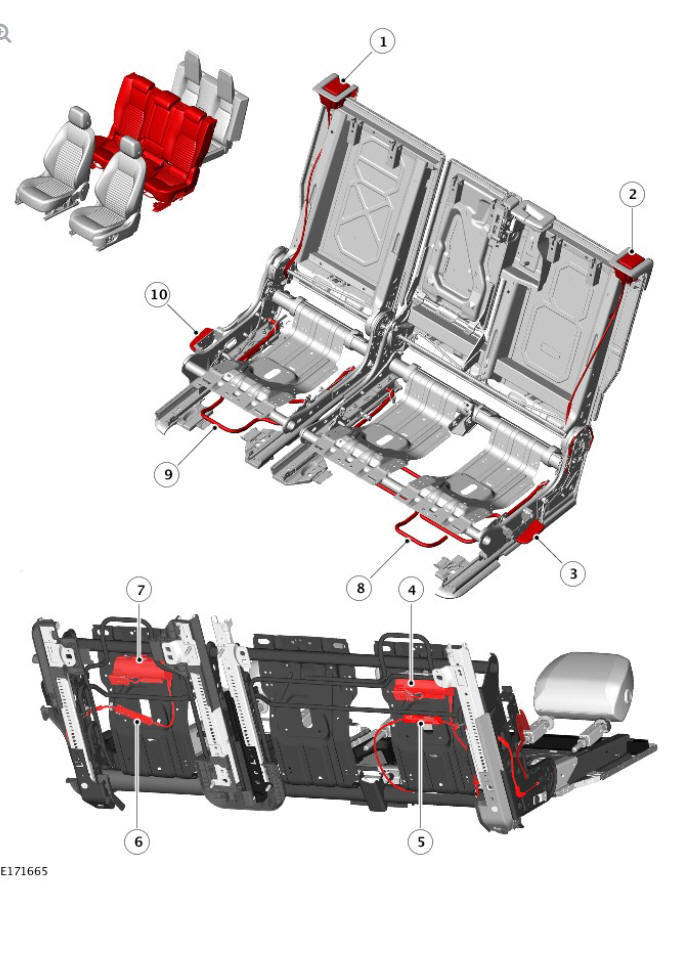

COMPONENT LOCATION - SECOND ROW SEATS

NOTES:

  • North American Specification (NAS) head restraints shown
  • Illustration shows several variants of the seat depending on vehicle specification.

COMPONENT LOCATION - SECOND ROW SEATS

  1. Right seat backrest upper release lever (if fitted)
  2. Left Seat backrest upper release lever (if fitted)
  3. Seat backrest lower release lever (2 off) (if fitted)
  4. Left seat backrest release motor (if fitted)
  5. Left seat backrest release return spring (if fitted)
  6. Right seat backrest release return spring (if fitted)
  7. Right seat backrest release motor (if fitted)
  8. Left seat slide release bar (if fitted)
  9. Right seat slide release bar (if fitted)

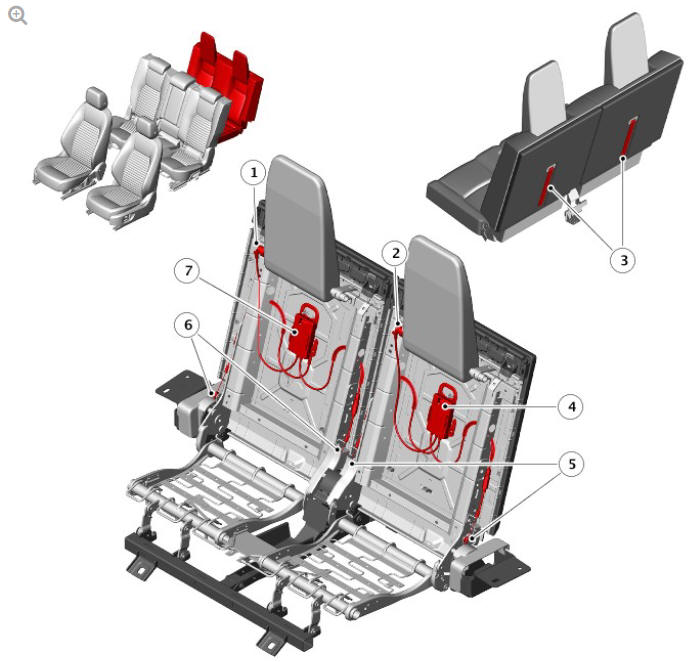

COMPONENT LOCATION - THIRD ROW SEATS

COMPONENT LOCATION - THIRD ROW SEATS

  1. Right head restraint latch release cable
  2. Left head restraint latch release cable
  3. Release strap
  4. Latch release assembly
  5. Left seat backrest latch release cable
  6. Right seat backrest latch release cable
  7. Latch release assembly

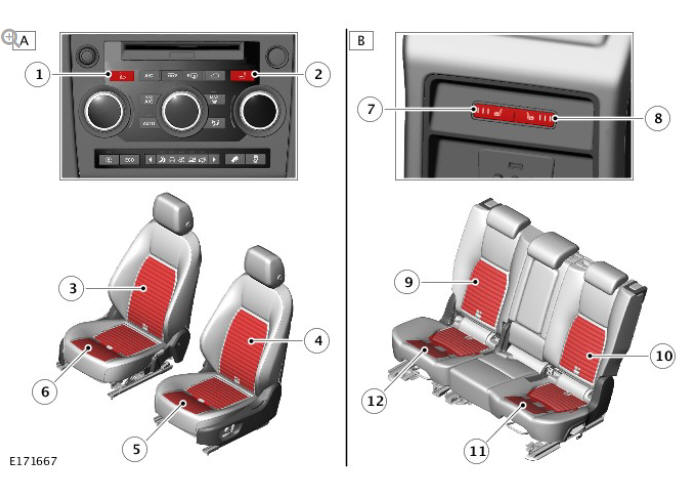

COMPONENT LOCATION - HEATED SEATS

COMPONENT LOCATION - HEATED SEATS

  1. Left seat heater switch - Automatic Temperature Control Module (ATCM)
  2. Right seat heater switch - ATCM
  3. Right seat backrest heater element
  4. Left seat backrest heater element
  5. Left seat cushion heater element
  6. Right seat cushion heater element
  7. Left rear seat heater switch
  8. Right rear seat heater switch
  9. Right rear seat backrest heater element
  10. Left rear seat cushion heater element
  11. Left rear seat backrest heater element
  12. Right rear seat cushion heater element

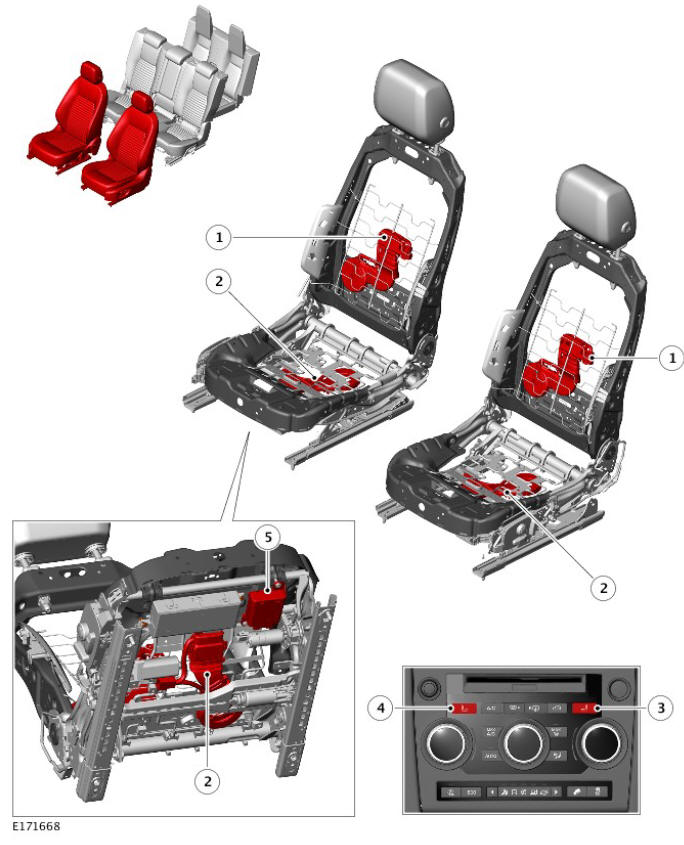

COMPONENT LOCATION - CLIMATE SEATS

COMPONENT LOCATION - CLIMATE SEATS

  1. Seat backrest climate assembly
  2. Right seat cushion climate assembly
  3. Seat climate switch - ATCM
  4. Left seat climate switch - Automatic Temperature Control module (ATCM)
  5. Front seat climate control module (1 per seat)

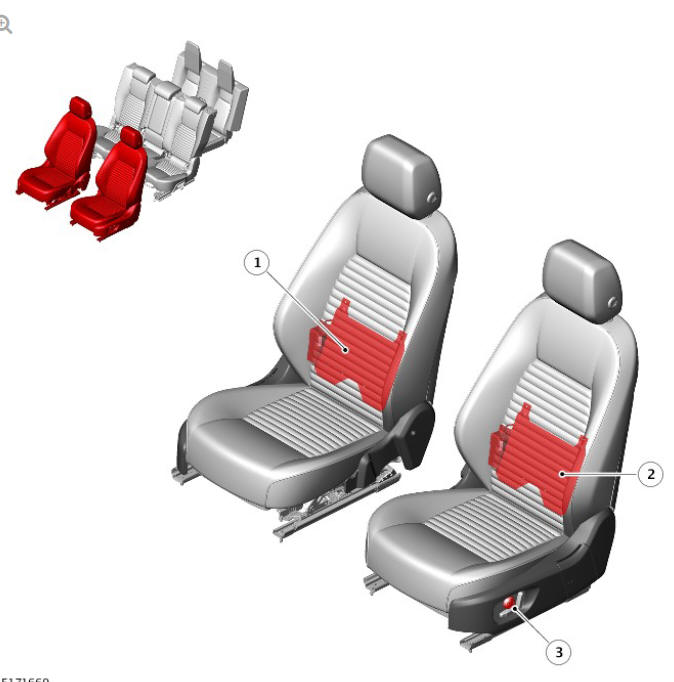

COMPONENT LOCATION - SEAT LUMBAR

COMPONENT LOCATION - SEAT LUMBAR

  1. Right seat lumbar assembly
  2. Left seat lumbar assembly
  3. Front seat switchpack - lumbar control switch
