Land Rover Discovery: Starting System - Ingenium i4 2.0l Diesel Starter Motor (G1879568) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Engine / Starting System - Ingenium i4 2.0l Diesel Starter Motor (G1879568) / Removal and Installation

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

All vehicles

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).

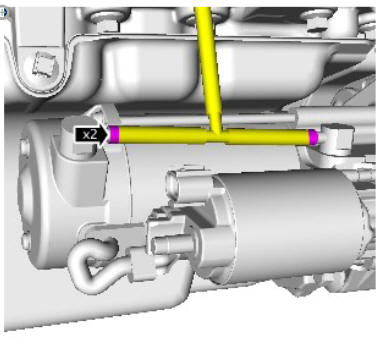

Starting System - Ingenium i4 2.0l Diesel Starter Motor (G1879568) Removal and Installation

Torque: 10 Nm

Vehicles with automatic transmission

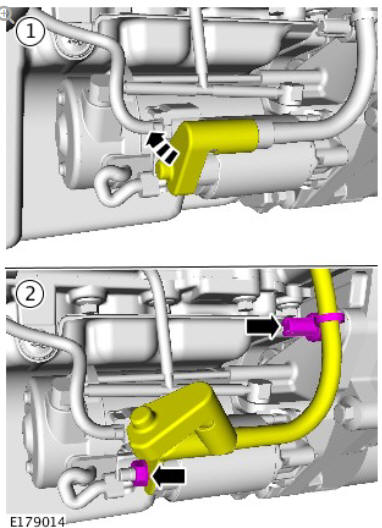

Starting System - Ingenium i4 2.0l Diesel Starter Motor (G1879568) Removal and Installation

Vehicles with manual transmission

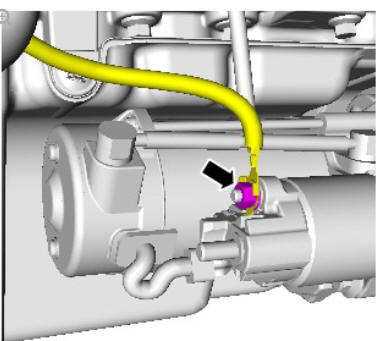

Starting System - Ingenium i4 2.0l Diesel Starter Motor (G1879568) Removal and Installation

Torque: 7 Nm

All vehicles

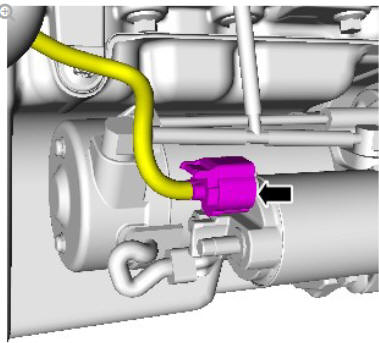

Starting System - Ingenium i4 2.0l Diesel Starter Motor (G1879568) Removal and Installation

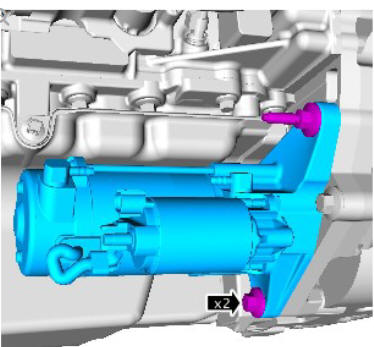

Starting System - Ingenium i4 2.0l Diesel Starter Motor (G1879568) Removal and Installation

Torque: 48 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
