Land Rover Discovery: Supplemental Restraint System Clockspring (G1785538) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Seatbelt and Supplemental Restraint System / Supplemental Restraint System Clockspring (G1785538) / Removal and Installation

REMOVAL

CAUTIONS:

  • Make sure that the road wheels are in the straight ahead position.
  • Use a suitable trim tool.

NOTE:

Removal steps in this procedure may contain installation details.

Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00, Description and Operation).

Refer to: Steering Wheel (211-04, Removal and Installation).

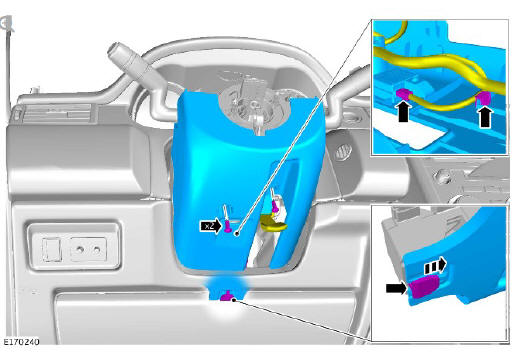

Supplemental restraint system clockspring (G1785538) removal and installation

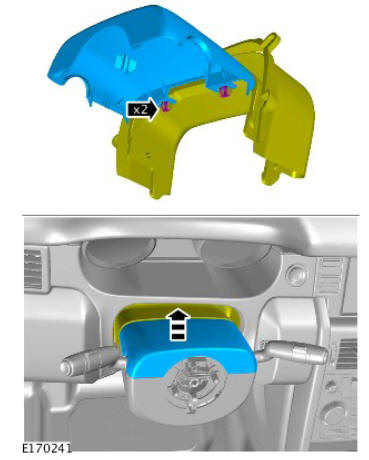

Supplemental restraint system clockspring (G1785538) removal and installation

CAUTION:

Make sure that the clockspring rotor does not rotate.

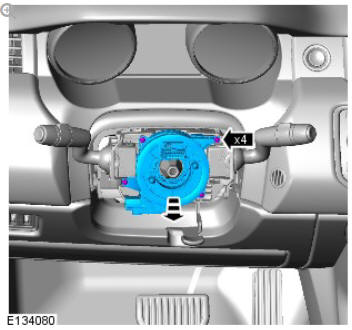

Supplemental restraint system clockspring (G1785538) removal and installation

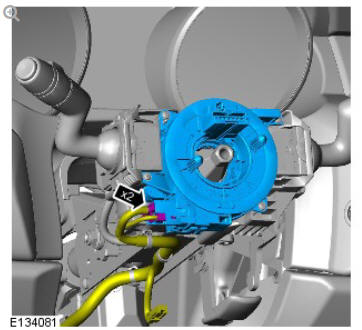

Secure with adhesive tape.

Supplemental restraint system clockspring (G1785538) removal and installation

INSTALLATION

CAUTION:

If a new component has been installed, configure using Land Rover approved diagnostic equipment.

To install, reverse the removal procedure.

If a new component is installed, the soft lock stop reset routine should be completed on the power steering system, using the approved diagnostic tool.
