Land Rover Discovery: Supplemental Restraint System
Driver Airbag
Module (G1785722) / Removal and
Installation
REMOVAL
WARNINGS:
- Do not probe supplemental restraint system (SRS) electrical
connectors.
- To avoid accidental deployment and possible personal injury,
the
backup power supply must be depleted before repairing or
replacing any air bag supplemental restraint system (SRS)
components. To deplete the backup power supply energy,
disconnect the battery ground cable and wait one minute. Failure
to follow this instruction may result in personal injury.

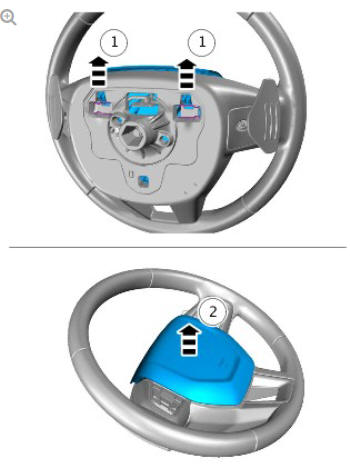

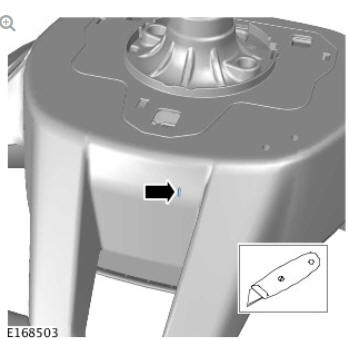

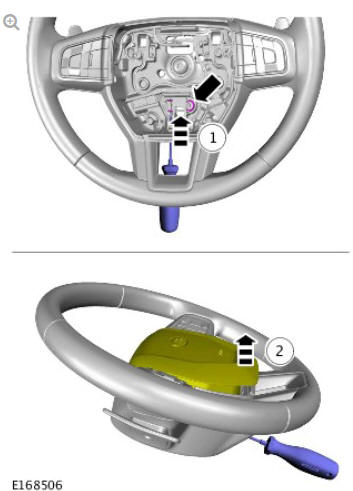

All vehicles
Make the SRS system safe.
Refer to: Standard Workshop Practices (100-00, Description and
Operation).
Disconnect the battery ground cable.
Refer to: Specifications (414-01, Specifications).
.31.jpg)
.32.jpg)
.33.jpg)

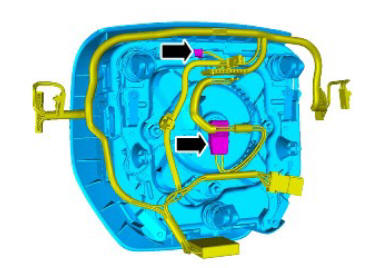

Non NAS vehicles
CAUTION:
Take extra care not to damage the wiring harnesses.
.34.jpg)

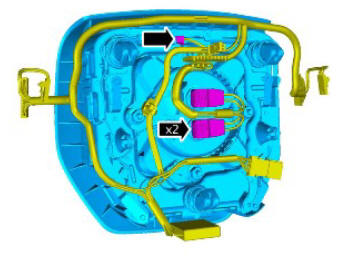

NAS vehicles
CAUTION:
Take extra care not to damage the wiring harnesses.
.35.jpg)
INSTALLATION

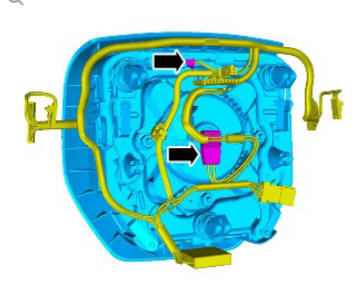

Non NAS vehicles
CAUTION:
Take extra care not to damage the wiring harnesses.
.36.jpg)

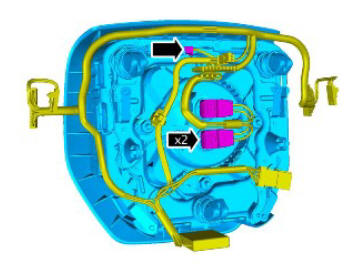

NAS vehicles
CAUTION:
Take extra care not to damage the wiring harnesses.
.37.jpg)

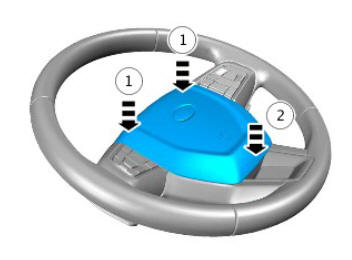

WARNING:
Driver air bag module installation can be confirmed by
hearing 3 audible clicks, 1 for each clip.
CAUTION:
Take extra care not to damage the wiring harnesses.
.38.jpg)
If a new component has been installed, configure using Land Rover
approved diagnostic equipment.
