REMOVAL

WARNINGS:

  • Do not probe supplemental restraint system (SRS) electrical connectors.
  • To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • RH illustration shown, LH is similar.

Refer to: Standard Workshop Practices (100-00, Description and Operation).

Refer to: Front Door Trim Panel (501-05, Removal and Installation).

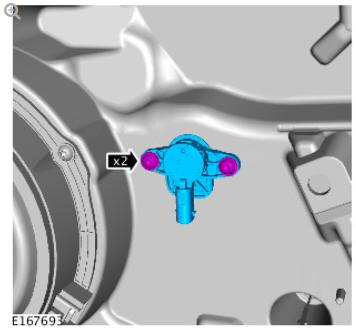

Supplemental restraint system front door side impact sensor (G1785148) removal and installation

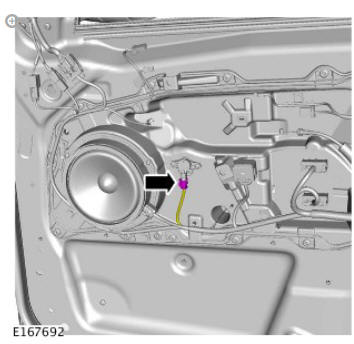

Supplemental restraint system front door side impact sensor (G1785148) removal and installation

Torque: 2 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
  2. If a new component has been installed, configure using Land Rover approved diagnostic equipment.

Supplemental restraint system front impact severity sensor (G1785539) removal and installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute.

Failure to follow this instruction may result in personal injury.

Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

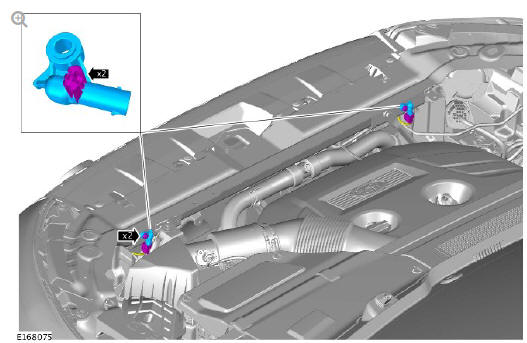

Supplemental restraint system front impact severity sensor (G1785539) removal and installation

Torque: 11 Nm

INSTALLATION

To install, reverse the removal procedure.

If a new component has been installed, configure using Land Rover approved diagnostic equipment.
