REMOVAL

WARNING:

To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplementary restraints system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait for one minute. Failure to follow this instruction may result in personal injury.

NOTE:

Removal steps in this procedure may contain installation details.

Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00, Description and Operation).

Refer to: Front Seat - Vehicles With: Power Seats (501-10, Removal and Installation).

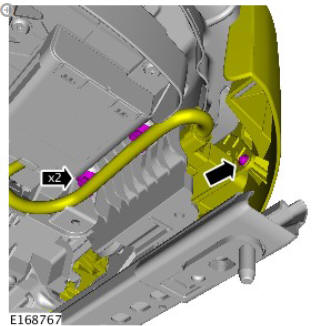

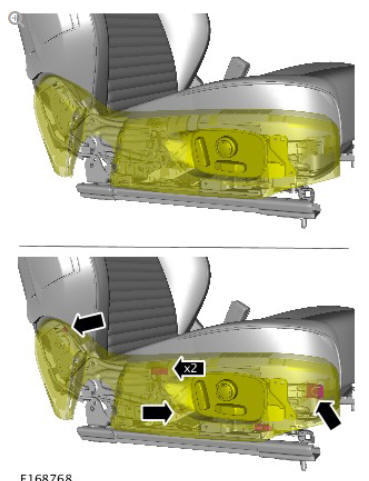

Supplemental restraint system side air bag module (G1785147) removal and installation

NOTE:

LH illustration shown, RH is similar.

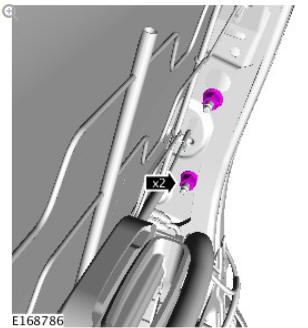

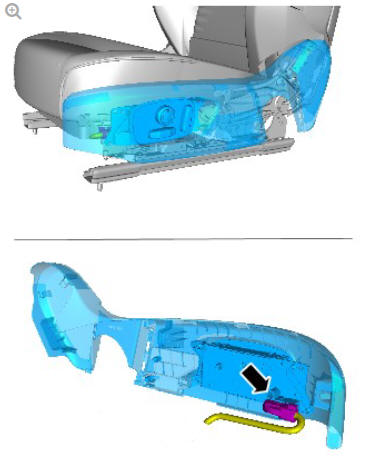

Supplemental restraint system side air bag module (G1785147) removal and installation

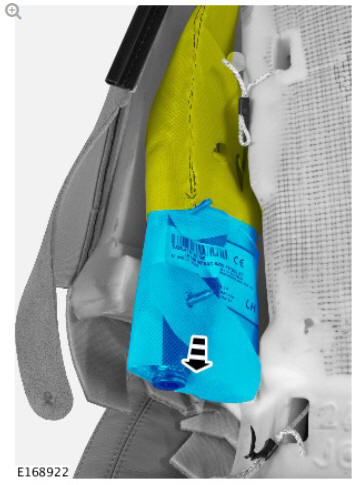

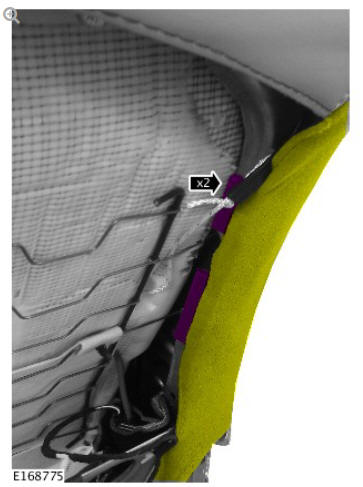

Supplemental restraint system side air bag module (G1785147) removal and installation

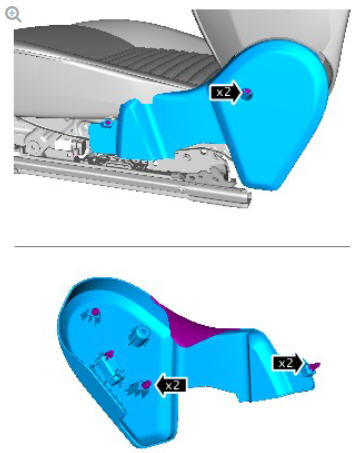

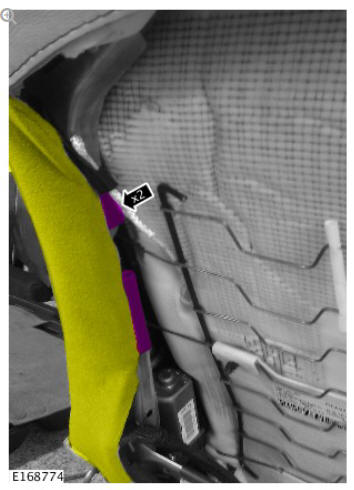

Supplemental restraint system side air bag module (G1785147) removal and installation

NOTE:

LH illustration shown, RH is similar.

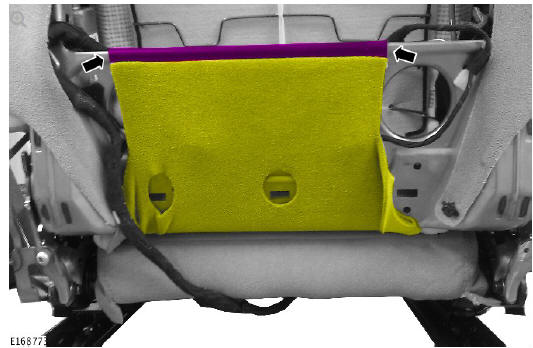

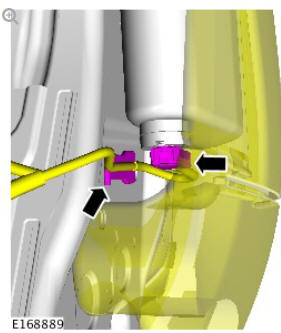

Supplemental restraint system side air bag module (G1785147) removal and installation

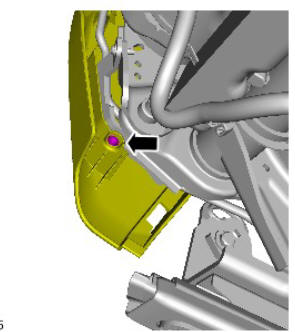

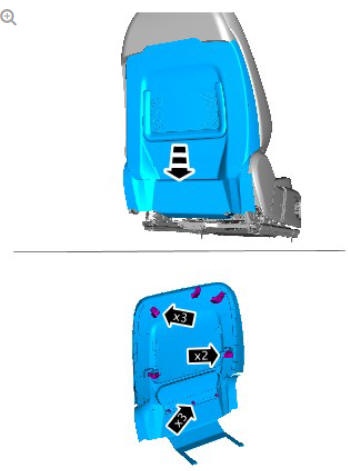

Supplemental restraint system side air bag module (G1785147) removal and installation

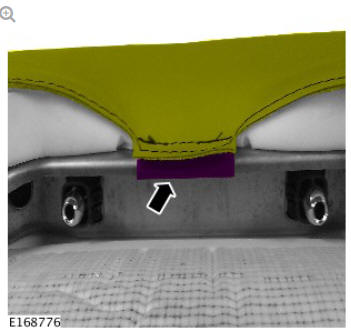

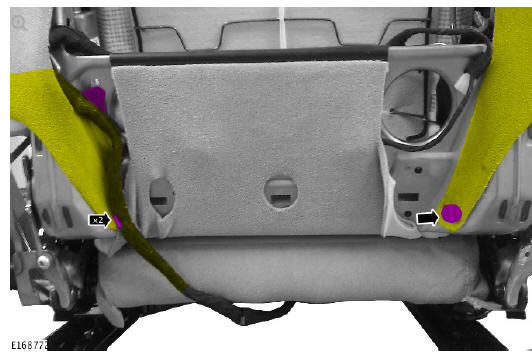

Supplemental restraint system side air bag module (G1785147) removal and installation

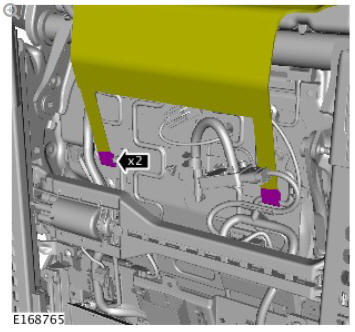

Supplemental restraint system side air bag module (G1785147) removal and installation

Supplemental restraint system side air bag module (G1785147) removal and installation

Supplemental restraint system side air bag module (G1785147) removal and installation

Supplemental restraint system side air bag module (G1785147) removal and installation

Supplemental restraint system side air bag module (G1785147) removal and installation

WARNINGS:

  • Do not probe supplemental restraint system (SRS) electrical connectors.
  • The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.

NOTE:

RH illustration shown, LH is similar.

Supplemental restraint system side air bag module (G1785147) removal and installation

NOTE:

RH illustration shown, LH is similar.

Supplemental restraint system side air bag module (G1785147) removal and installation

Torque: 9 Nm

WARNING:

Make sure that the air bag is correctly installed in to the fabric chute. Failure to follow this instruction may result in incorrect operation of the air bag.

CAUTION:

Note the installed position of the component(s) prior to removal.

Supplemental restraint system side air bag module (G1785147) removal and installation

INSTALLATION

To install, reverse the removal procedure.
