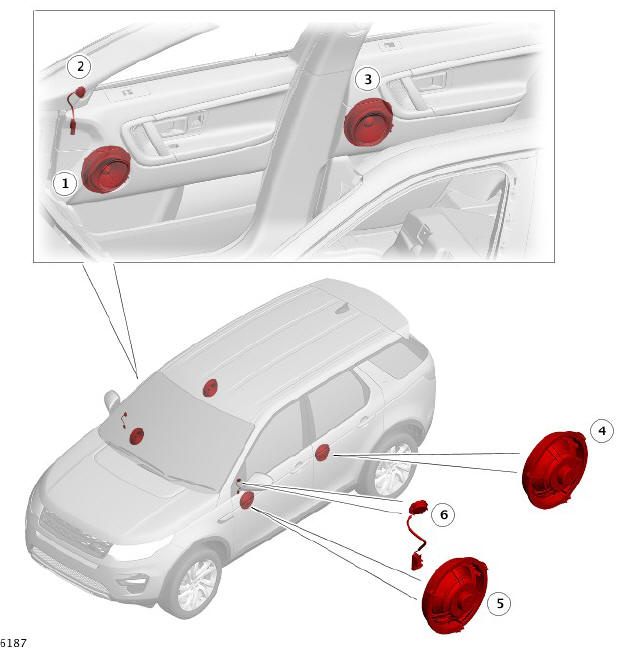

Component location - Speakers - Incontrol touch- 6 SPEAKER SYSTEM

Component location - Speakers - Incontrol touch- 6 SPEAKER SYSTEM

  1. Front right bass speaker
  2. Front right tweeter speaker
  3. Rear right bass speaker
  4. Rear left bass speaker
  5. Front left bass speaker
  6. Front left tweeter speaker

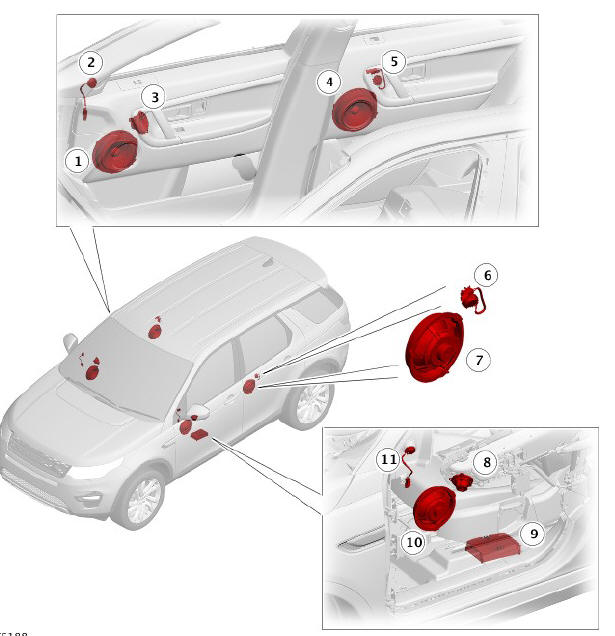

COMPONENT LOCATION - SPEAKERS - INCONTROL TOUCH - 10 SPEAKER SYSTEM

COMPONENT LOCATION - SPEAKERS - INCONTROL TOUCH - 10 SPEAKER SYSTEM

  1. Front right bass speaker
  2. Front right tweeter speaker
  3. Front right mid-range speaker
  4. Rear right bass speaker
  5. Rear right tweeter speaker
  6. Rear left tweeter speaker
  7. Rear left bass speaker
  8. Front left mid-range speaker
  9. Audio Amplifier Module (AAM)
  10. Front left bass speaker
  11. Front left tweeter speaker

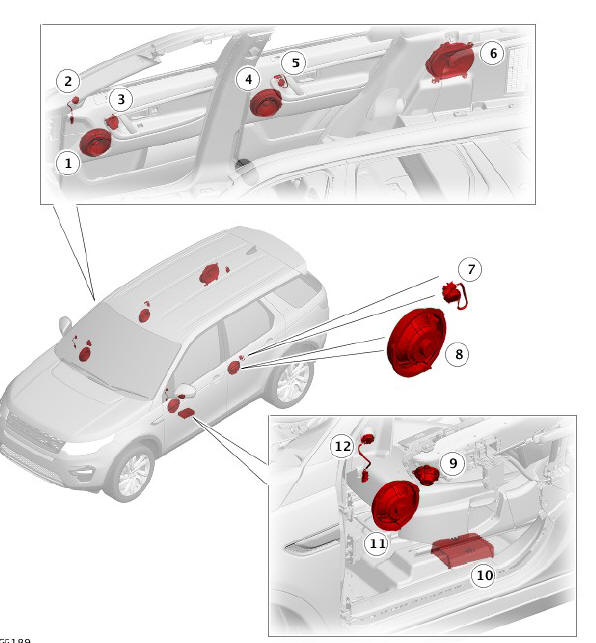

COMPONENT LOCATION - SPEAKERS - INCONTROL TOUCH - 11 SPEAKER SYSTEM

COMPONENT LOCATION - SPEAKERS - INCONTROL TOUCH - 11 SPEAKER SYSTEM

  1. Front right bass speaker
  2. Front right tweeter speaker
  3. Front right mid-range speaker
  4. Rear right bass speaker
  5. Rear right tweeter speaker
  6. Sub-woofer speaker
  7. Rear left tweeter speaker
  8. Rear left bass speaker
  9. Front left tweeter speaker
  10. Audio Amplifier Module (AAM)
  11. Front left bass speaker
  12. Front left tweeter speaker

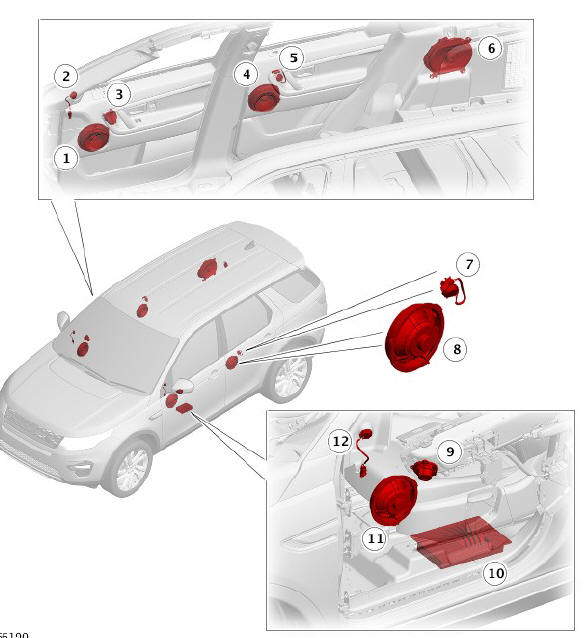

COMPONENT LOCATION - SPEAKERS - INCONTROL TOUCH PLUS SYSTEM - 11 SPEAKER S STEM

COMPONENT LOCATION - SPEAKERS - INCONTROL TOUCH PLUS SYSTEM - 11 SPEAKER S STEM

  1. Front right bass speaker
  2. Front right tweeter speaker
  3. Front right mid-range speaker
  4. Rear right bass speaker
  5. Rear right tweeter speaker
  6. Sub-woofer speaker
  7. Rear left tweeter speaker
  8. Rear left bass speaker
  9. Rear left tweeter speaker
  10. Audio Amplifier Module (AAM)
  11. Front left bass speaker
  12. Front left tweeter speaker

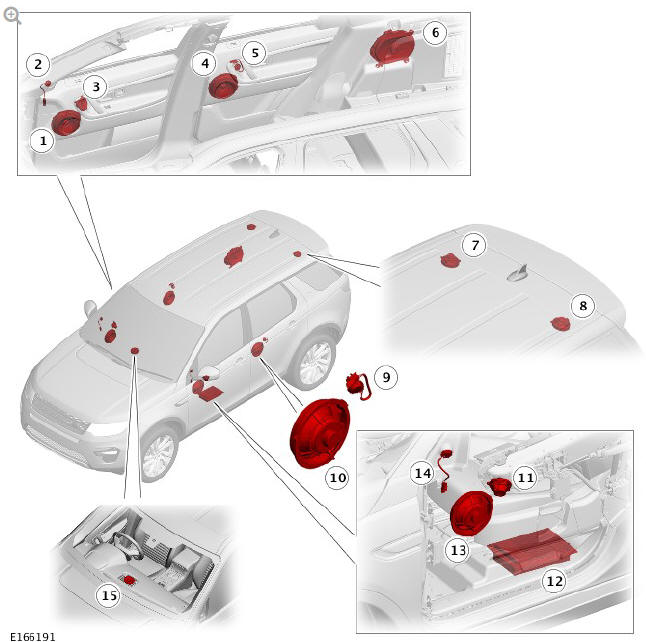

COMPONENT LOCATION - SPEAKERS - INCONTROL TOUCH PLUS WITH MERIDIAN SURROUND SYSTEM - 17 SPEAKER SYSTEM

COMPONENT LOCATION - SPEAKERS - INCONTROL TOUCH PLUS WITH MERIDIAN SURROUND SYSTEM - 17 SPEAKER SYSTEM

  1. Front right bass speaker
  2. Front right tweeter speaker
  3. Front right mid-range speaker
  4. Rear right bass speaker
  5. Rear right tweeter speaker
  6. Sub-woofer speaker
  7. Right headliner co-axial speaker
  8. Left headliner co-axial speaker
  9. Rear left tweeter speaker
  10. Rear left bass speaker
  11. Front left mid-range speaker
  12. Audio Amplifier Module (AAM)
  13. Front left bass speaker
  14. Front left tweeter speaker
  15. Instrument panel co-axial speaker

Overview

The vehicle has five levels of audio system available:

  • InControl Touch System - 6 speakers Audio Amplifier Module (AAM) integral with Audio Head Unit (AHU)
  • InControl Touch System 190W - 10 speakers, AHU and external 6 channel AAM
  • InControl Touch System 250W - 11 speakers including dual voice coil subwoofer, AHU and external 8 channel AAM
  • InControl touch Plus System 250W - 11 speakers including dual voice coil sub-woofer, Integrated Audio Module (IAM) and external 8 channel AAM
  • InControl touch Plus with Meridian Surround System 825W Dolby Pro Logic II 3D Surround Sound System - 17 Speakers including dual voice coil sub-woofer, IAM and external AAM.

All audio systems, except the InControl Touch 6 speaker system, are powered by an Audio Amplifier Module (AAM) located below the left front seat. The AAM is controlled by the Audio Head Unit (AHU) or the Integrated Audio Module (IAM). The speakers are hard wired to the audio amplifier module. The speakers are hardwired directly to the AHU on the InControl Touch 6 speaker system.

The AAM on the InControl Touch Plus System and InControl Touch Plus with Meridian Surround System is larger than those used on the other systems.
