Land Rover Discovery: Front Door Window Regulator and Motor (G1805061) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Glass, Frames and Mechanisms / Front Door Window Regulator and Motor (G1805061) / Removal and Installation

REMOVAL

Refer to: Front Door Trim Panel (501-05, Removal and Installation).

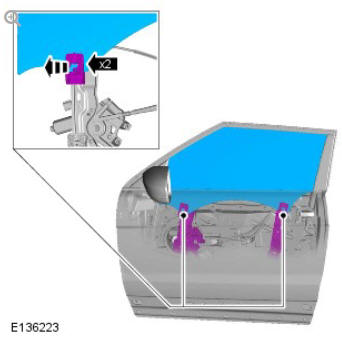

Front door window regulator and motor (G1805061) removal and installation

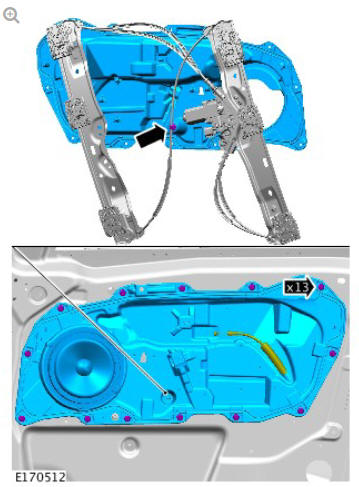

Front door window regulator and motor (G1805061) removal and installation

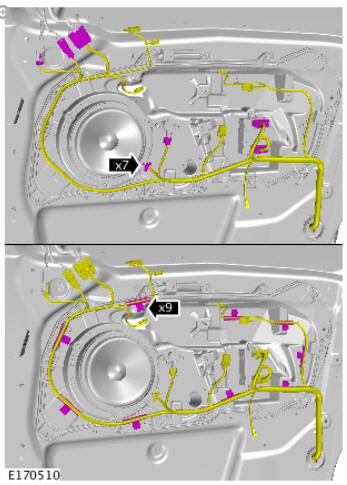

Front door window regulator and motor (G1805061) removal and installation

Release the clips.

NOTE:

Do not disassemble further if the component is removed for access only.

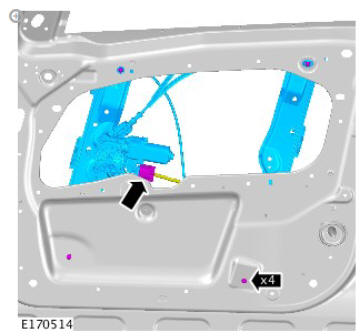

Front door window regulator and motor (G1805061) removal and installation

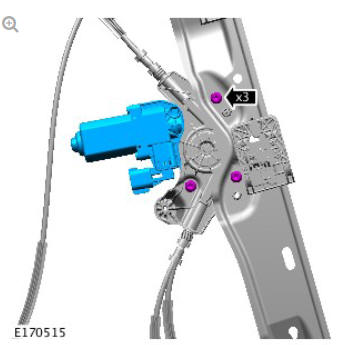

Front door window regulator and motor (G1805061) removal and installation

Torque: 4.5 Nm

INSTALLATION

To install, reverse the removal procedure.
