Land Rover Discovery: Supplemental Restraint System Occupant Detection Sensor (G1791884) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Seatbelt and Supplemental Restraint System / Supplemental Restraint System Occupant Detection Sensor (G1791884) / Removal and Installation

REMOVAL

WARNINGS:

  • To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.
  • Always wear safety glasses when working on an air bag equipped vehicle and when handling an air bag module. Failure to follow this instruction may result in personal injury.
  • To minimize the possibility of injury in the event of premature deployment, always carry a live air bag module with the bag and trim cover pointed away from the body. Failure to follow this instruction may result in personal injury.
  • To minimize the possibility of premature deployment, do not use radio key code savers when working on the supplemental restraint system. Failure to follow this instruction may result in personal injury.
  • To minimize the possibility of premature deployment, live air bag modules must only be placed on work benches which have been ground bonded and with the trim cover facing up. Failure to follow these instructions may result in personal injury.
  • Never probe the electrical connectors of air bag modules or any other supplemental restraint system component. Failure to follow this instruction may result in personal injury.
  • Painting over the driver air bag module trim cover or instrument panel could lead to deterioration of the trim cover and air bags. Do not for any reason attempt to paint discolored or damaged air bag module trim covers or instrument panel. Install a new component.

    Failure to follow this instruction may result in personal injury

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

Refer to: Front Seat Cushion Cover - Vehicles With: Power Seats (501-10, Removal and Installation).

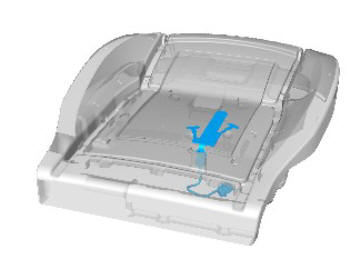

Supplemental restraint system occupant detection sensor (G1791884) removal and installation

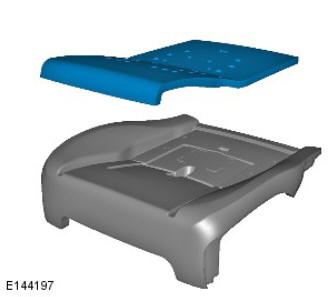

Supplemental restraint system occupant detection sensor (G1791884) removal and installation

INSTALLATION

To install, reverse the removal procedure.

Supplemental restraint system passenger airbag module (G1785724) removal and installation

REMOVAL

WARNINGS:

  • Do not probe supplemental restraint system (SRS) electrical connectors.
  • To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Left hand drive illustration(s) shown, Right hand drive is similar.

Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00, Description and Operation).

Disconnect the battery ground cable.

Refer to: Specifications (414-01, Specifications).

Refer to: Instrument Panel Upper Section (501-12, Removal and Installation).

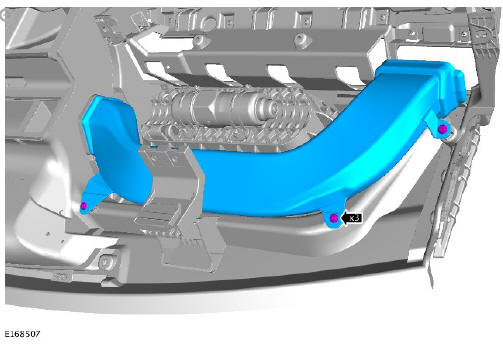

Supplemental restraint system passenger airbag module (G1785724) removal and installation

Torque: 1.5 Nm

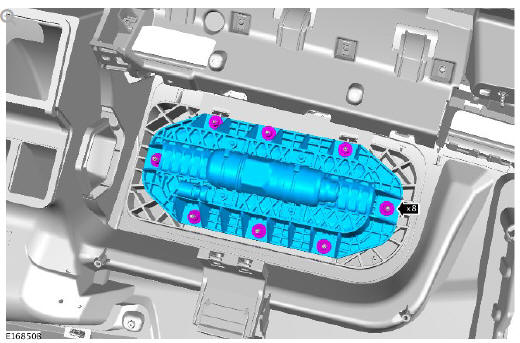

Supplemental restraint system passenger airbag module (G1785724) removal and installation

Torque: 4.5 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
  2. If a new component has been installed, configure using Land Rover approved diagnostic equipment.

Supplemental Restraint System Restraints Control Module (G1785536) / Removal and Installation

REMOVAL

WARNING:

Do not probe supplemental restraint system (SRS) electrical connectors.

NOTES:

  • New restraints control module (RCM) must be installed every time if any supplementary restraint system (SRS) component has been deployed.
  • Removal steps in this procedure may contain installation details.

Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00, Description and Operation).

Disconnect the battery ground cable.

Refer to: Specifications (414-01, Specifications).

Refer to: Floor Console (501-12, Removal and Installation).

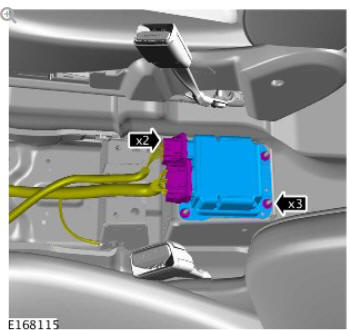

Supplemental restraint system restraints control module (G1785536) removal and installation

Torque: 10 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
  2. If a new component has been installed, configure using Land Rover approved diagnostic equipment.
