Land Rover Discovery: Vehicle Specific Information and
Tolerance Checks

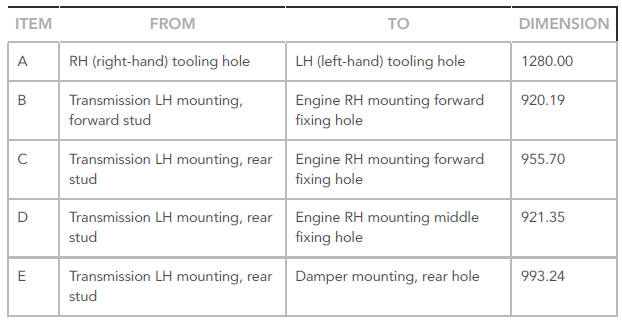

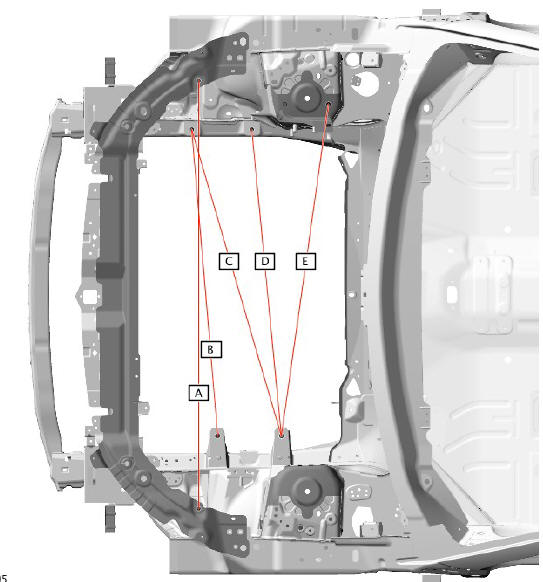

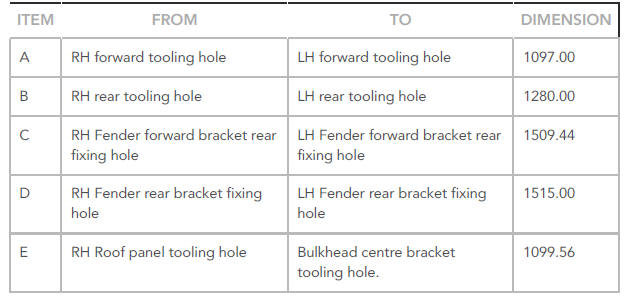

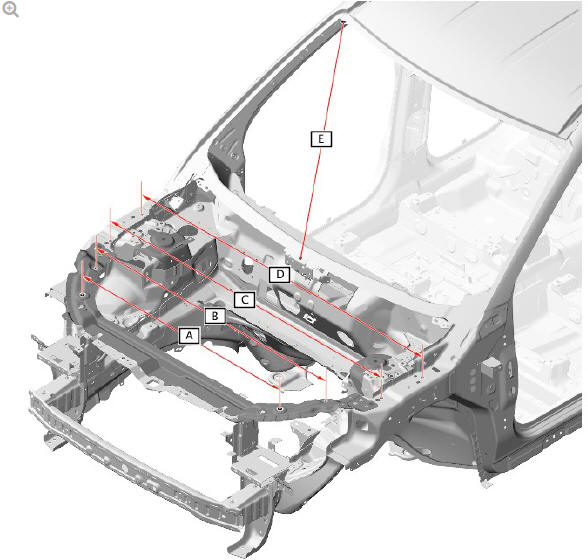

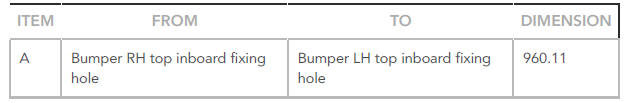

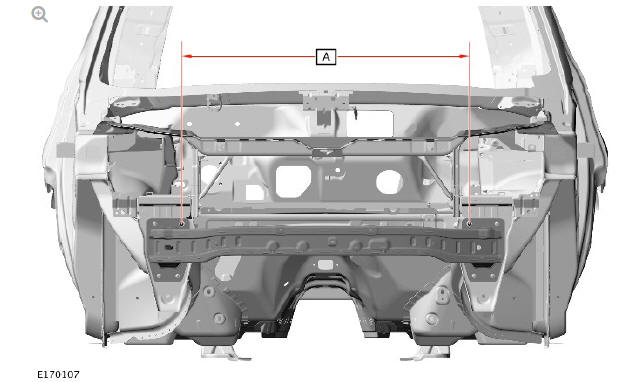

FRONT END BODY DIMENSIONS
NOTES:
- All dimensions shown are in millimetres (mm).
- Dimensions shown to holes, are always taken from/to the hole
centre. They are also always to the body panel surface, not to the
top of bolts or components.
![FRONT END BODY DIMENSIONS](images/books/227/index(3).1.jpg)
![FRONT END BODY DIMENSIONS](images/books/227/index(3).2.jpg)
![FRONT END BODY DIMENSIONS](images/books/227/index(3).3.jpg)
![FRONT END BODY DIMENSIONS](images/books/227/index(3).4.jpg)
![FRONT END BODY DIMENSIONS](images/books/227/index(3).5.jpg)
![FRONT END BODY DIMENSIONS](images/books/227/index(3).6.jpg)

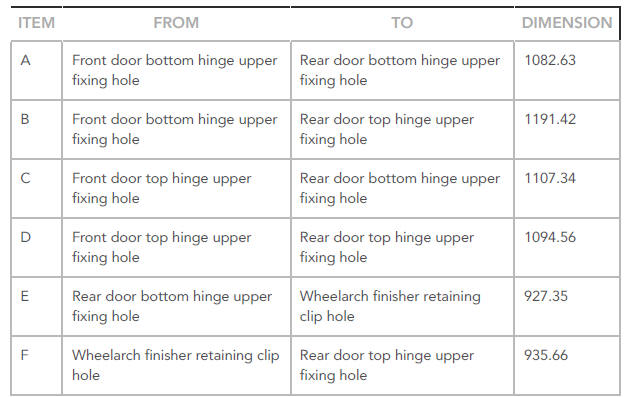

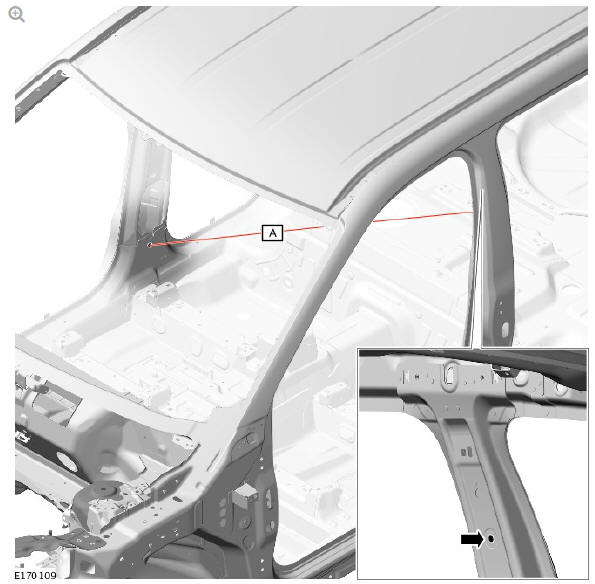

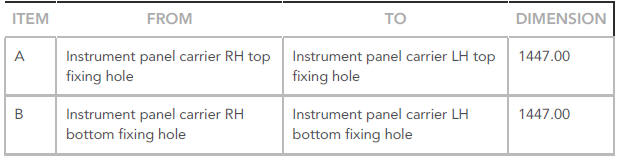

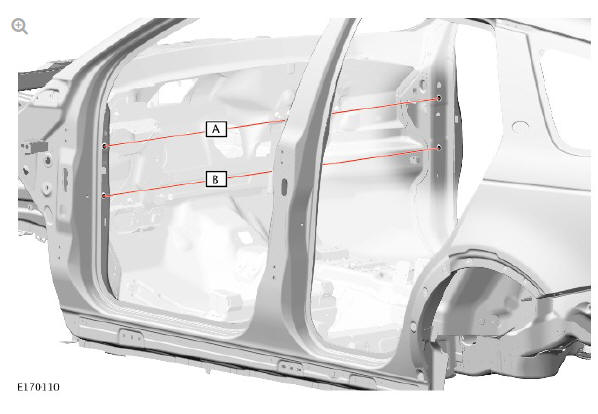

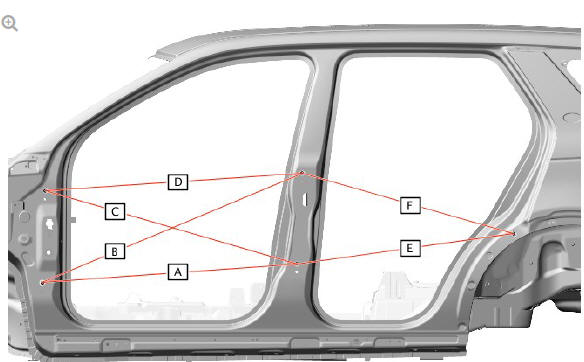

SIDE PANEL DIMENSIONS
![SIDE PANEL DIMENSIONS](images/books/227/index(3).7.jpg)
![SIDE PANEL DIMENSIONS](images/books/227/index(3).8.jpg)
![SIDE PANEL DIMENSIONS](images/books/227/index(3).9.jpg)
![SIDE PANEL DIMENSIONS](images/books/227/index(3).10.jpg)
![SIDE PANEL DIMENSIONS](images/books/227/index(3).11.jpg)
![SIDE PANEL DIMENSIONS](images/books/227/index(3).12.jpg)

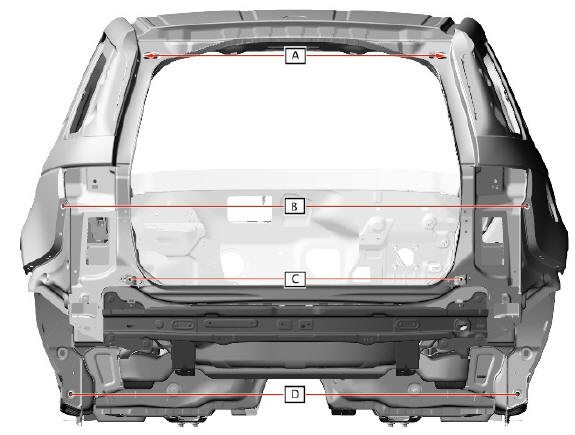

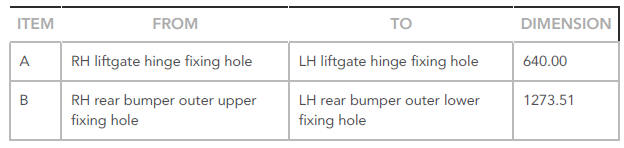

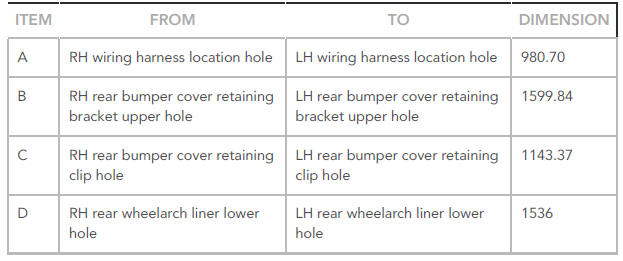

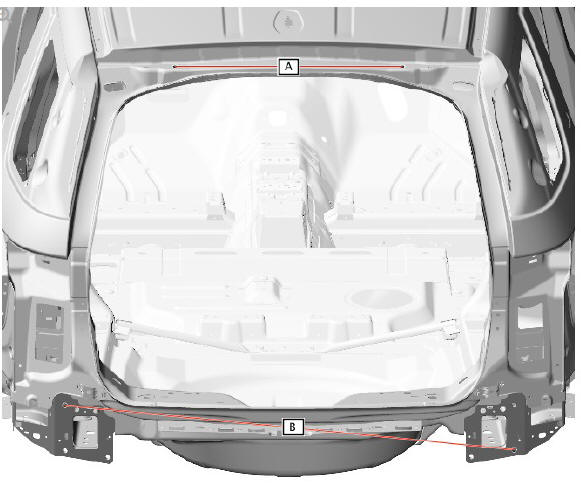

REAR END BODY DIMENSIONS
![REAR END BODY DIMENSIONS](images/books/227/index(3).13.jpg)
![REAR END BODY DIMENSIONS](images/books/227/index(3).14.jpg)
![REAR END BODY DIMENSIONS](images/books/227/index(2).15.jpg)
![REAR END BODY DIMENSIONS](images/books/227/index(2).16.jpg)

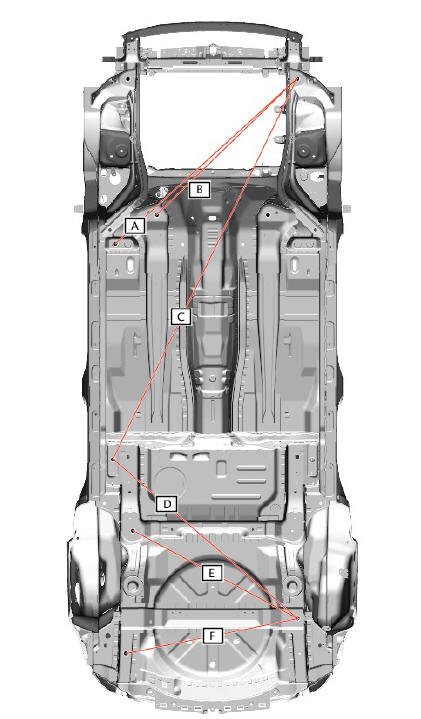

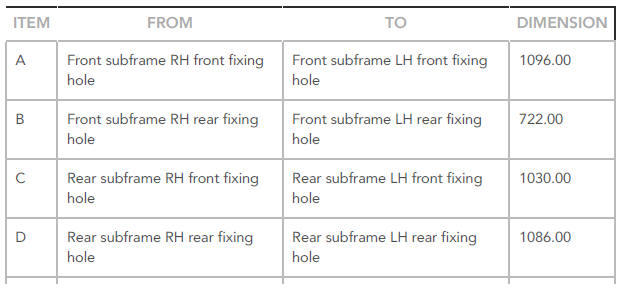

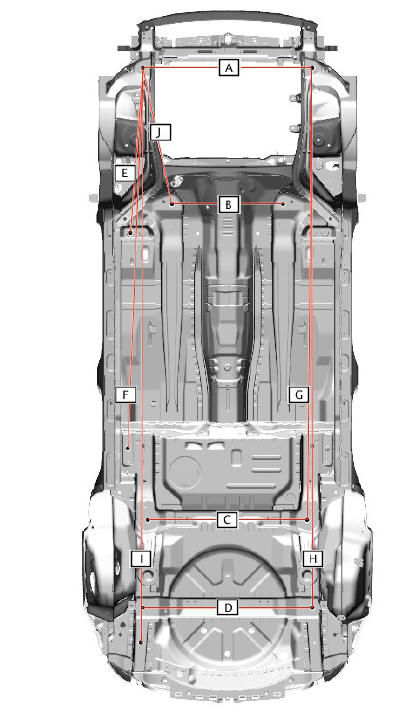

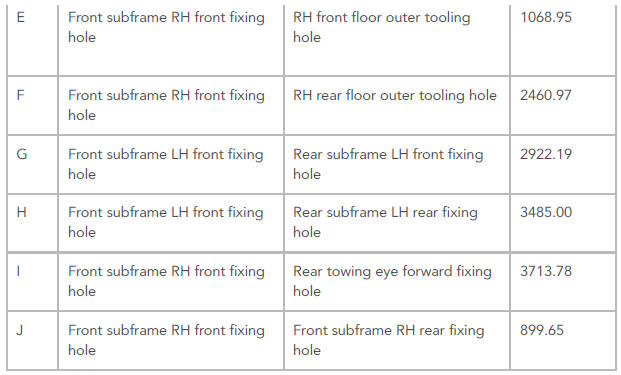

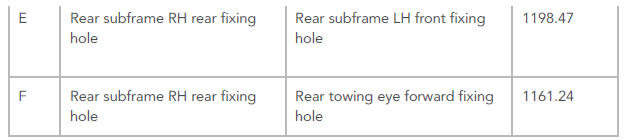

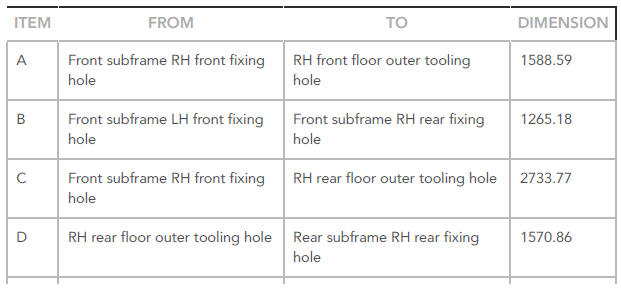

UNDER BODY DIMENSIONS
![UNDER BODY DIMENSIONS](images/books/227/index(3).17.jpg)
![UNDER BODY DIMENSIONS](images/books/227/index(3).18.jpg)
![UNDER BODY DIMENSIONS](images/books/227/index(2).19.jpg)
![UNDER BODY DIMENSIONS](images/books/227/index(2).20.jpg)
![UNDER BODY DIMENSIONS](images/books/227/index(3).21.jpg)
![UNDER BODY DIMENSIONS](images/books/227/index(3).22.jpg)
BODY SHELL REPLACEMENT TIMES
NOTES:
- The following information shows the total time taken to replace a
vehicles body shell. The time has been calculated using a base
model variant. For example a two wheel drive vehicle without a
roof opening panel.
- The times include all mechanical, electrical and trim (MET) items but
do not include wheel alignment or paint times.
![BODY SHELL REPLACEMENT TIMES](images/books/227/index(3).23.jpg)

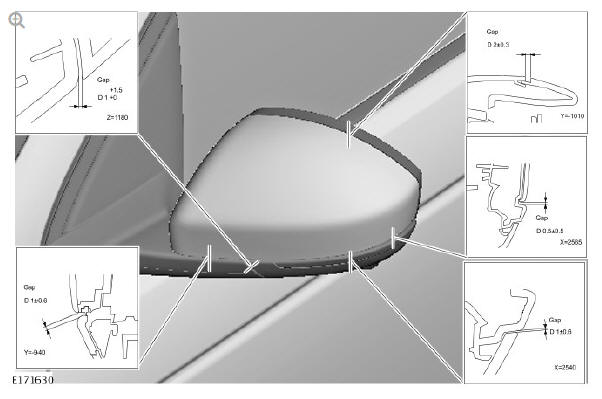

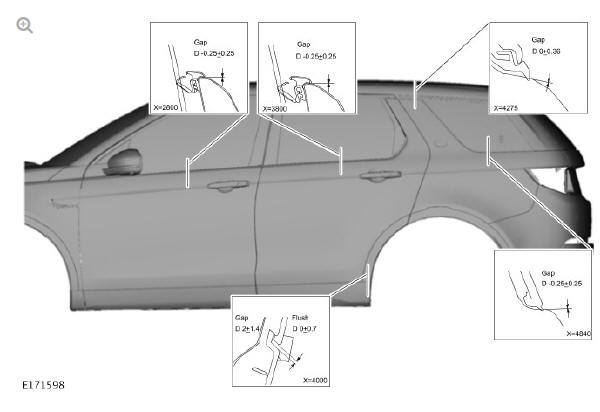

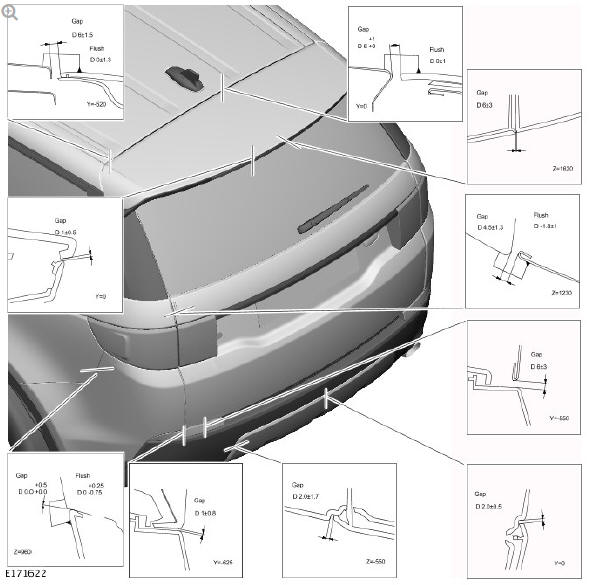

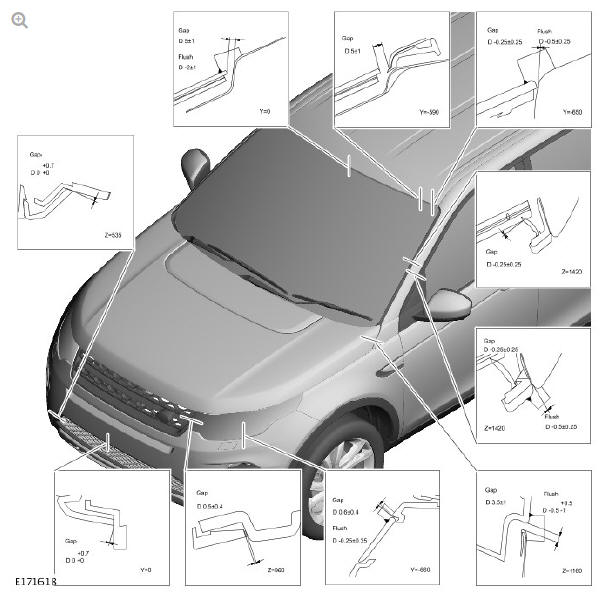

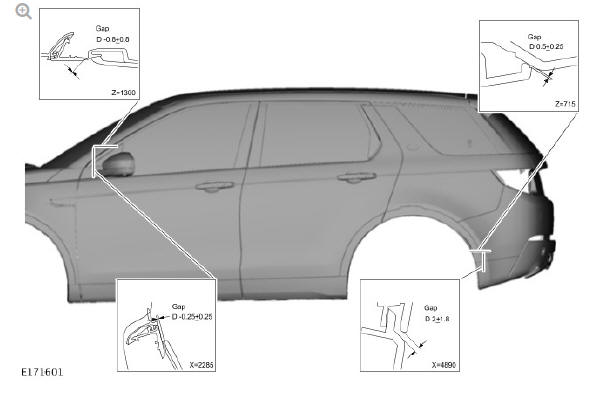

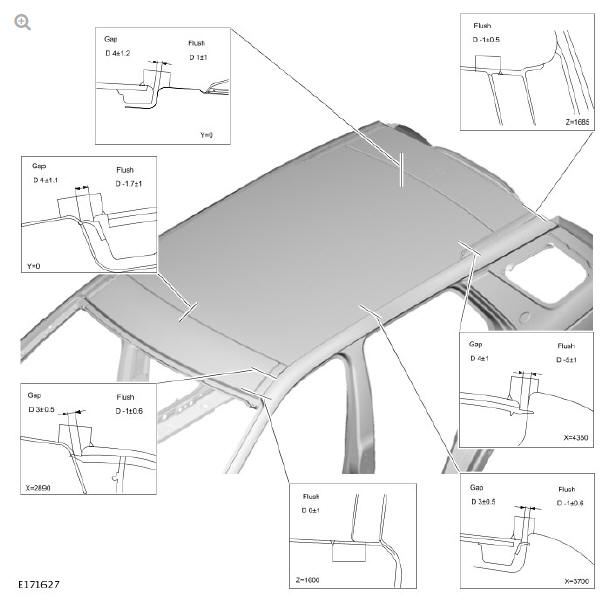

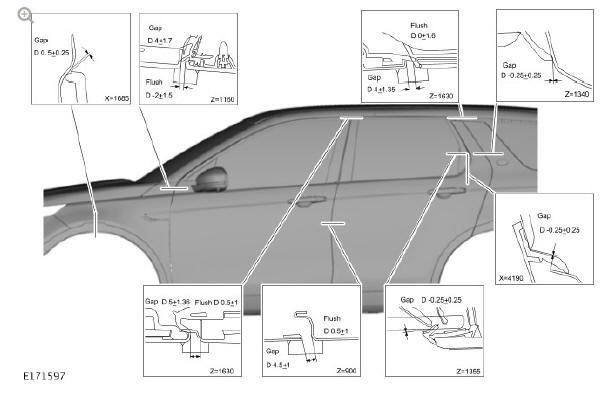

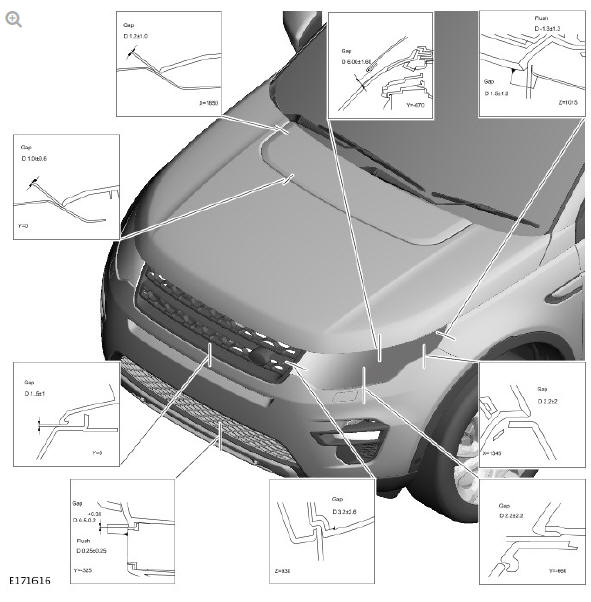

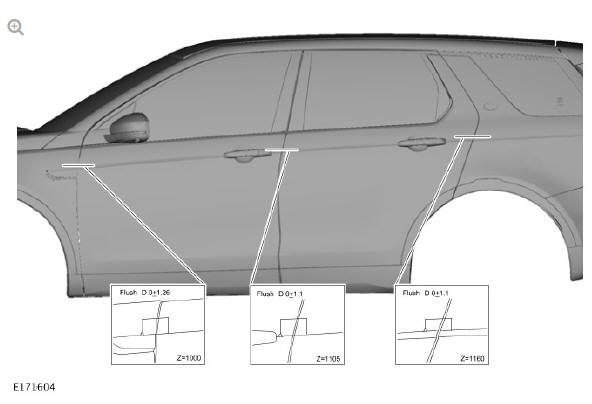

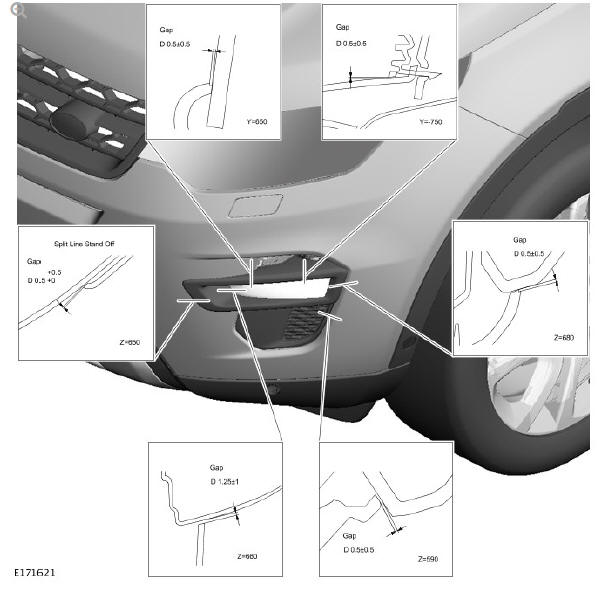

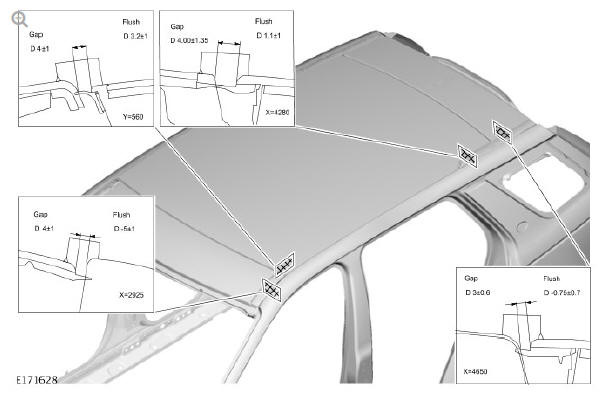

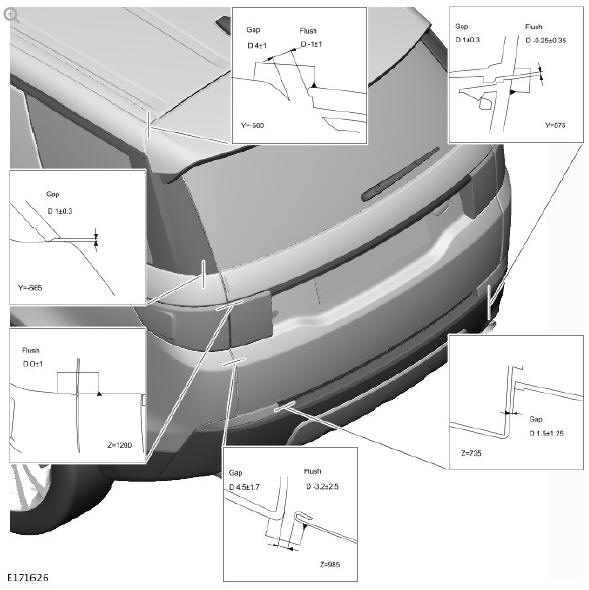

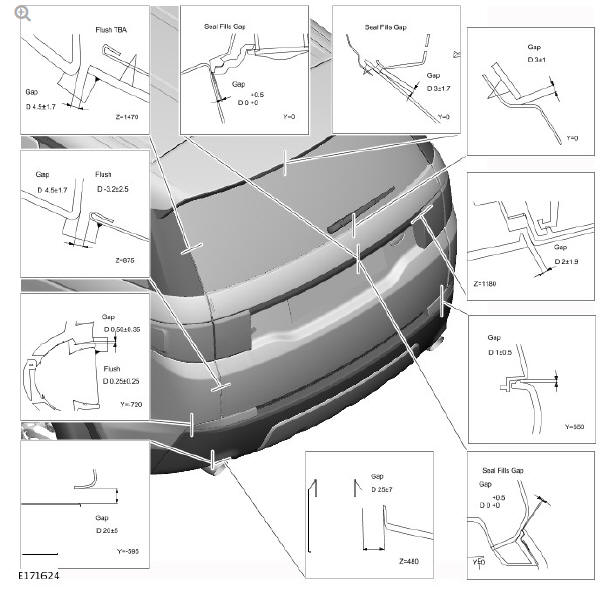

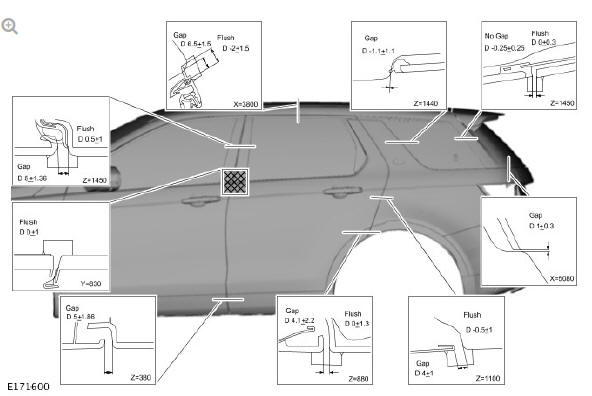

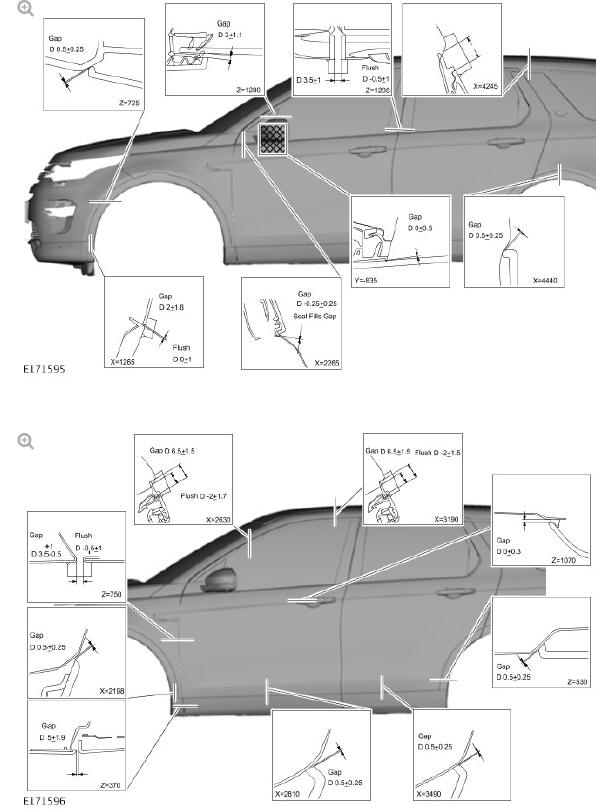

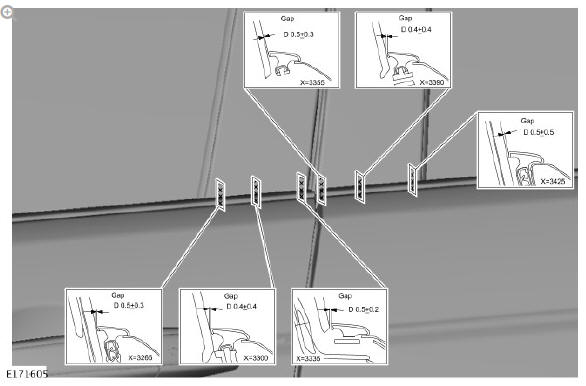

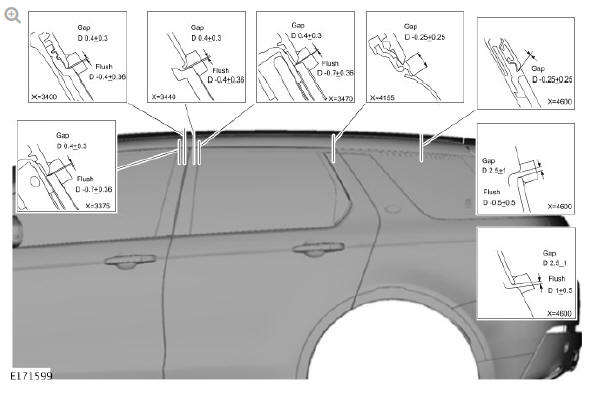

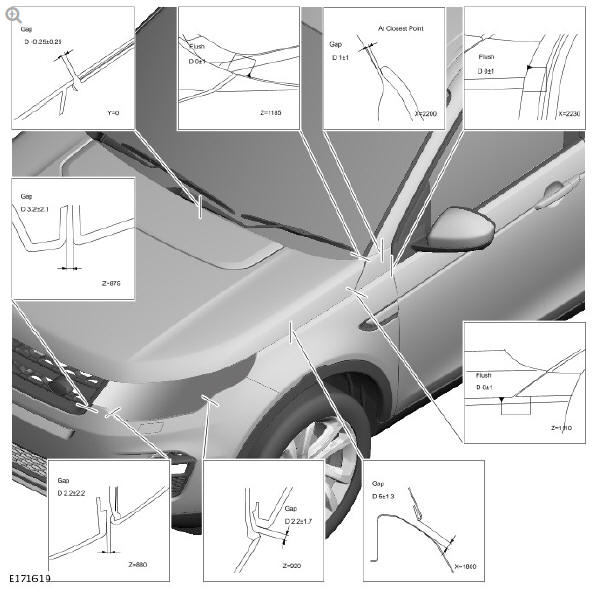

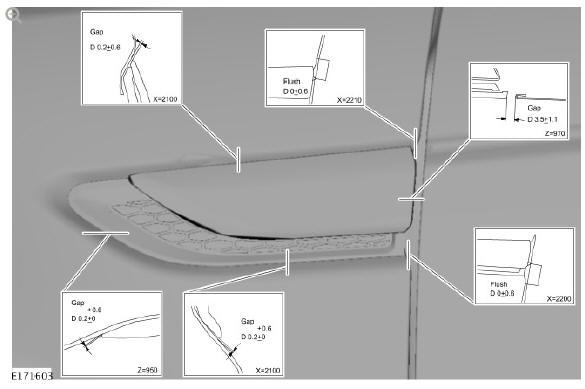

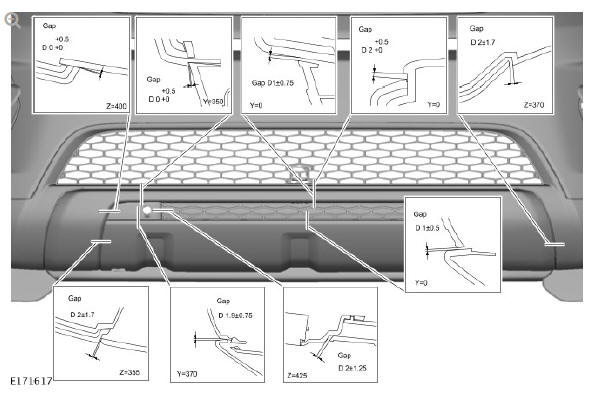

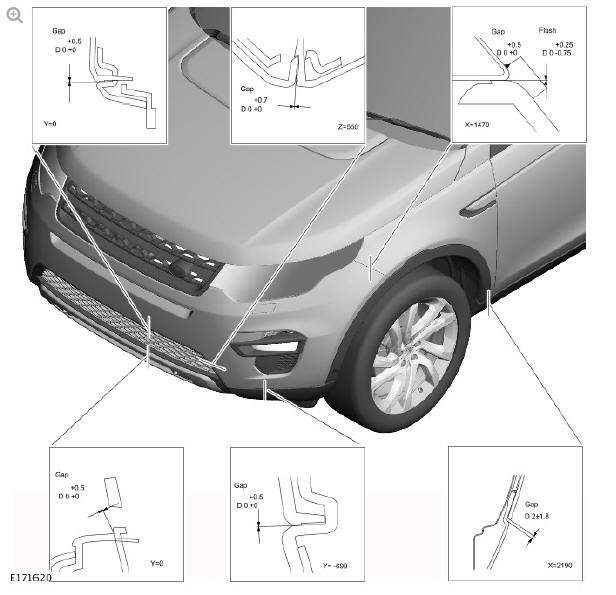

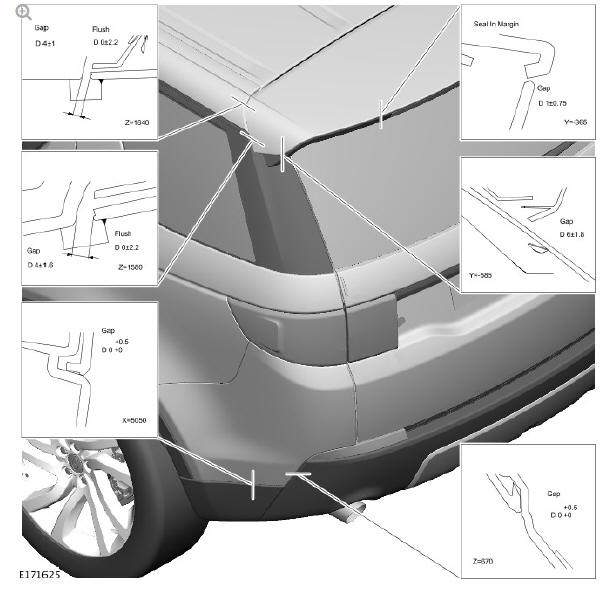

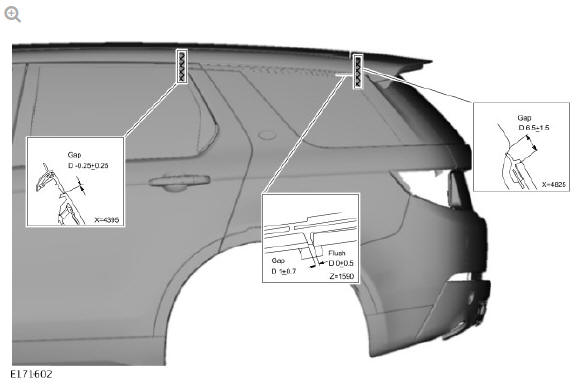

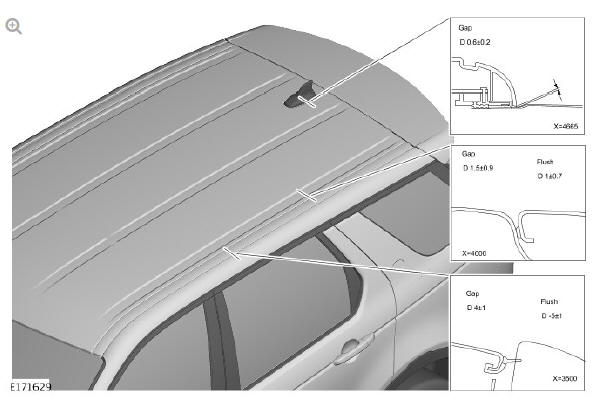

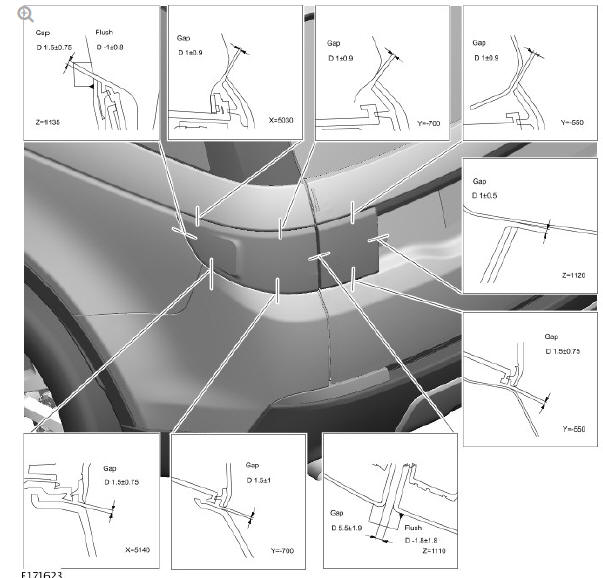

GAP AND PROFILE MEASUREMENTS
The following information is to be used as a guide to assist the technician
in
installing exterior body panels and trim items so as to achieve a correctly
aligned and cosmetically acceptable vehicle.
NOTE:
All dimensions shown are in millimetres (mm).
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(3).24.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(2).25.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(2).26.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(3).27.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(3).28.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(3).29.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(3).30.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(2).31.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(2).32.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(2).33.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(1).34.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(1).35.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(1).36.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(1).37.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(1).38.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(1).39.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(1).40.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(1).41.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(1).42.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(1).43.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(1).44.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(1).45.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(1).46.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(1).47.jpg)
![GAP AND PROFILE MEASUREMENTS](images/books/227/index(1).48.jpg)
