Land Rover Discovery: Vehicle Specific Information and
Tolerance Checks
Rear Door
Alignment
CHECK
Check all trims are located and fitted correctly before performing
this procedure.
NOTE:
The rear quarter panel is a fixed point, all alignment
checks must start from the rear quarter panel.
Check all vehicle gaps and profiles.
Vehicle specific and tolerance checks.
Refer to: Body and Frame (501-26 Body Repairs - Vehicle
Specific Information and Tolerance Checks, Description and
Operation).

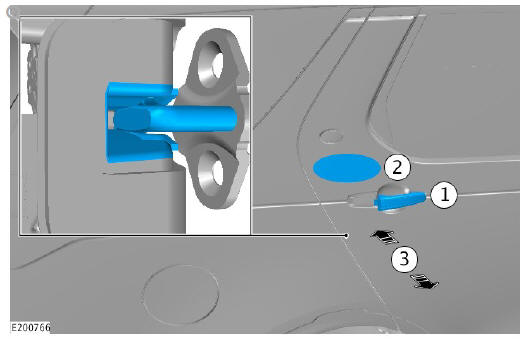

- Rear door striker initial check.
- (1) - Keep the exterior door handle open.
- (2) - Place hand in position illustrated to allow feel of the
door latch to striker.
- (3) - Move the rear door in and out to feel the latch on
striker.
ADJUSTMENT
- Rear door striker initial adjustment.
NOTE:
The striker plate is held in position by a spring loaded
backing plate.

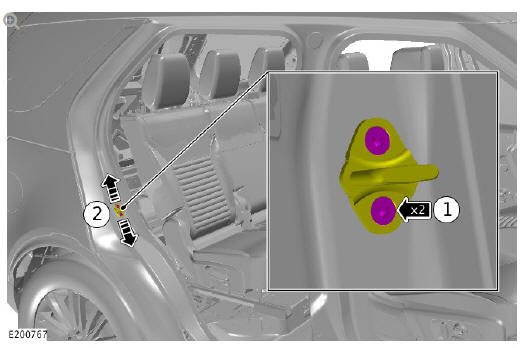

(1) Loosen the rear door striker retaining bolts. Do not fully
remove.
NOTE:
Using a suitable nylon block, break the seal on the
rear door striker to allow more movement.
(2) Adjust the rear door striker upwards or downwards using
a suitable nylon block to remove contact between striker
and latch, re-check the door closure and re-adjust striker if
required.
Do not tighten the rear door striker retaining bolts at this
point.

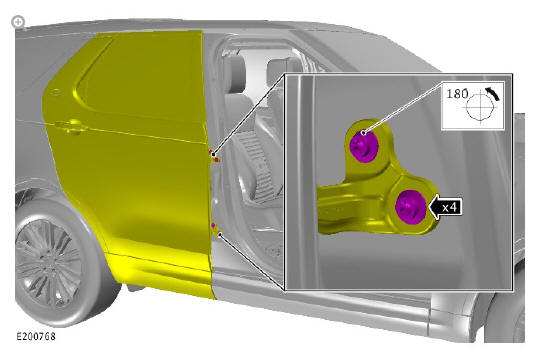

- Door hinge to B-pillar adjustment.

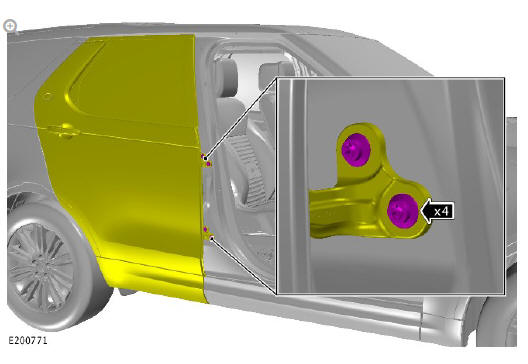

- Loosen the rear door hinge to B-pillar retaining bolts half
turn only.

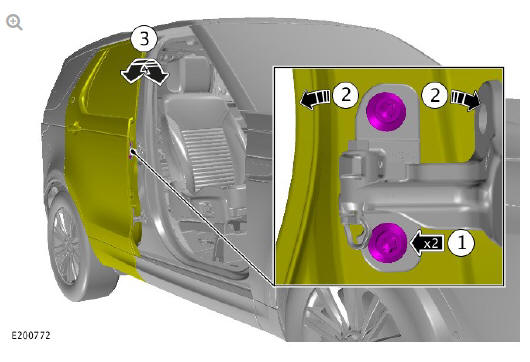

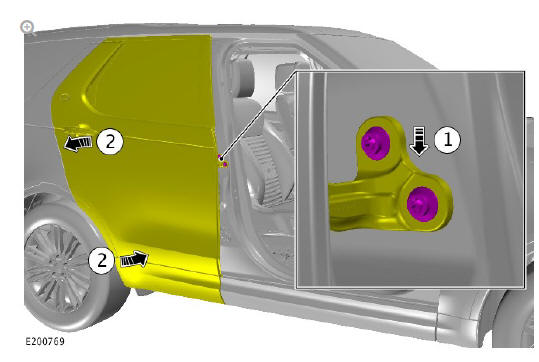

- (1)Using a suitable nylon block adjust the upper door hinge
as illustrated.
- (2) The rear door will move in the directions illustrated.

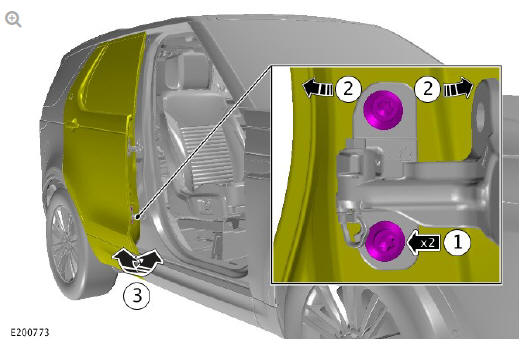

- (1)Using a suitable nylon block adjust the lower door hinge
as illustrated.
- (2) The rear door will move in the directions illustrated.
Tighten the hinge to B-pillar retaining bolts.
Torque: 35 Nm
Re-check the rear door latch to striker and adjust if required.
- Upper rear door profile adjustment.
NOTES:
- Adjustment to the upper part of the rear
door will effect the profile of the lower
part of the rear door.
- Upper retaining bolt is a shouldered bolt.

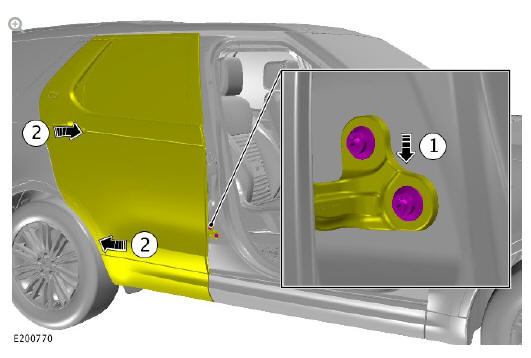

- (1) Loosen the rear door hinge to door retaining bolts. Do
not fully remove.
- (2) Adjust the door on the upper door hinge as illustrated.
- (3)The rear door will move in the directions illustrated
- Tighten the upper door hinge to door retaining bolts.
Torque: 35 Nm
- Lower rear door profile adjustment.
NOTES:
- Adjustment to the lower part of the rear
door will effect the profile of the upper
part of the rear door.
- Lower retaining bolt is a shouldered bolt.
- (1) Loosen the rear door hinge to door retaining bolts. Do
not fully remove.
- (2) Adjust the door on the upper door hinge as illustrated.
- (3)The rear door will move in the directions illustrated.
Tighten the lower door hinge to door retaining bolts.
Torque: 35 Nm

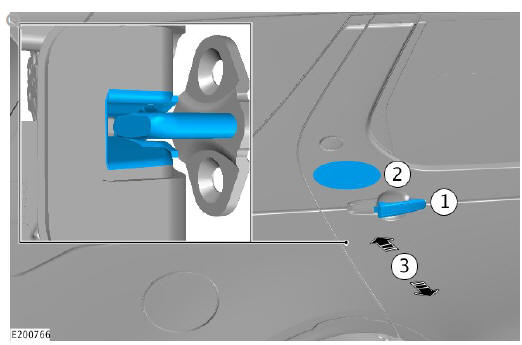

- Rear door striker final check.
- (1) - Keep the exterior door handle open.
- (2) - Place hand in position illustrated to allow feel of the
door latch to striker.
- (3) - Move the rear door in and out to feel the latch on
striker.
ADJUSTMENT

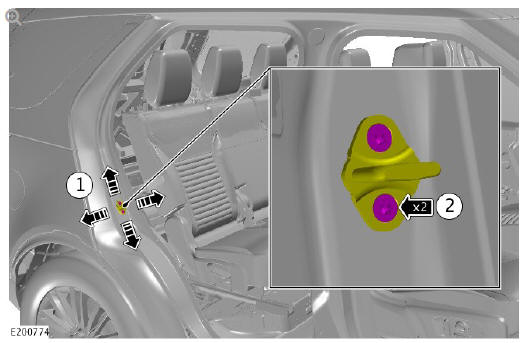

- Rear door striker final adjustment.
- (1) Adjust the rear door striker as required using a suitable
nylon block and re-check the door closure.
- (2) Tighten the rear door striker retaining bolts
Torque: 25 Nm
CHECK
NOTE:
The rear quarter panel is a fixed point, all alignment
checks must start from the rear quarter panel.
- Re-check all vehicle gaps and profiles.
- Vehicle specific and tolerance checks.
Refer to: Body and Frame (501-26 Body Repairs - Vehicle
Specific Information and Tolerance Checks, Description and
Operation).
Make sure all hinge retaining bolts that have been adjusted are touched up
with paint.
