Land Rover Discovery: Window Diagnostics - Pinpoint
Tests
NOTE:
The door window regulator motor can be removed from the
regulator. Install a new door window regulator motor only not the
complete assembly for this concern.

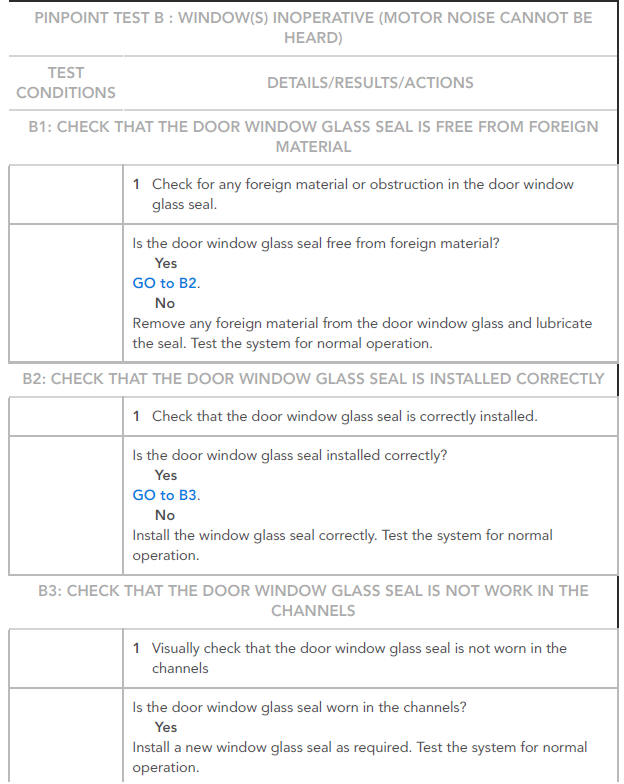

.22.jpg)

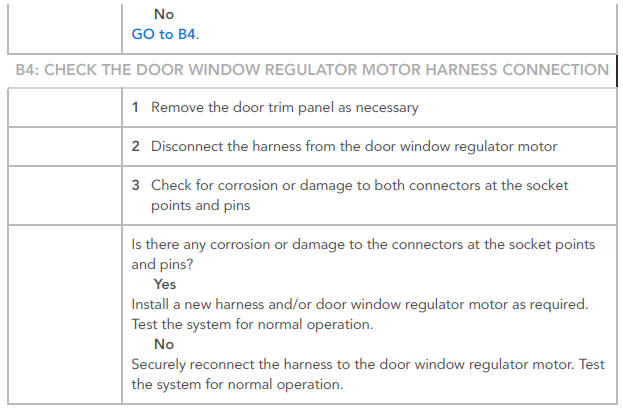

.23.jpg)

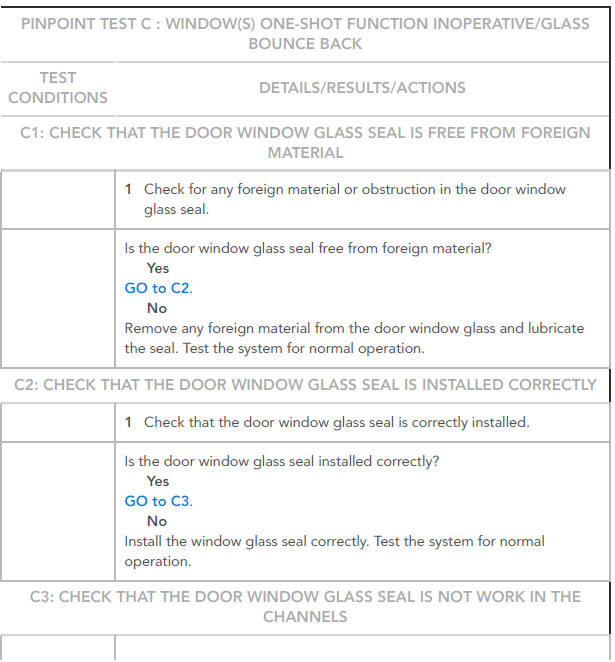

.24.jpg)

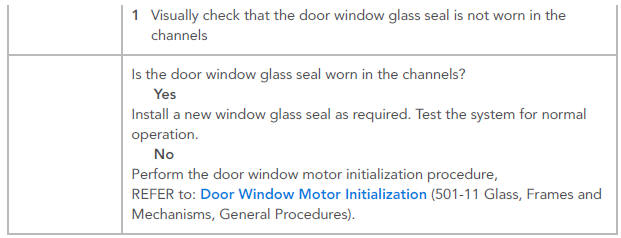

.25.jpg)

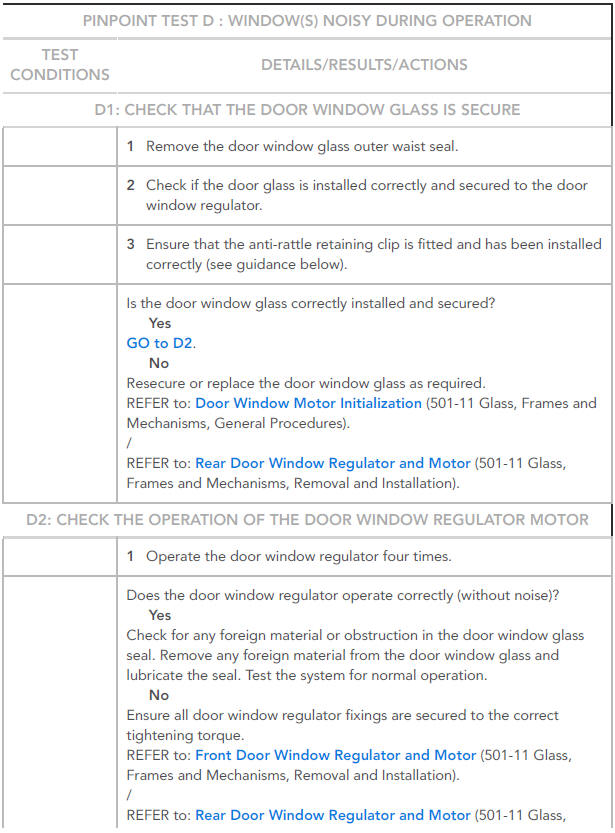

.26.jpg)
.27.jpg)
ANTI - RATTLE RETAINING CLIP FITMENT
- Remove the door trim panel as required. REFER to: Front Door Trim Panel (501-05 Interior Trim and
Ornamentation, Removal and Installation).
/
REFER to: Rear Door Trim Panel (501-05 Interior Trim and
Ornamentation, Removal and Installation).

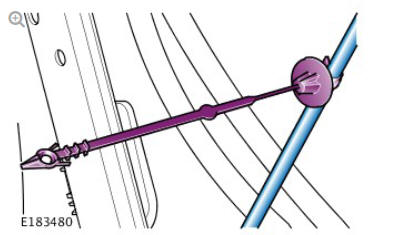

- Ensure correct fit of retaining clip to window regulator cable.
.28.jpg)

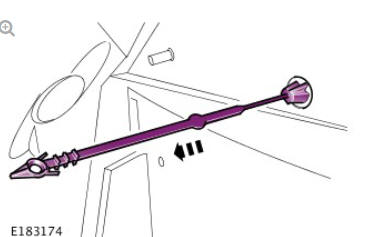

- Ensure correct fit of retaining clip to door inner closing panel.
.29.jpg)
- Ensure all door window regulator fixings are secured to the correct
tightening torque.
REFER to: Front Door Window Regulator and Motor (501-11 Glass,
Frames and Mechanisms, Removal and Installation).
/
REFER to: Rear Door Window Regulator and Motor (501-11 Glass,
Frames and Mechanisms, Removal and Installation).
DTC INDEX
For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this
vehicle, please refer to Section 100-00. REFER to: (100-00 General
Information)
Diagnostic Trouble Code Index - DTC: Driver / Passenger / Rear Left / Rear
Right Door Module (DDM/PDM/RLDM/RRDM) (Description and Operation),
Diagnostic Trouble Code Index - DTC: Central Junction Box (CJB)
(Description and Operation).
