Land Rover Discovery: Driveshaft - Ingenium I4 2.0l Diesel, Vehicles without- active Driveline (G1890849) - Removal

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Driveline / Driveshaft - Ingenium I4 2.0l Diesel, Vehicles Without- active Driveline (G1890849) / Driveshaft - Ingenium I4 2.0l Diesel, Vehicles without- active Driveline (G1890849) - Removal

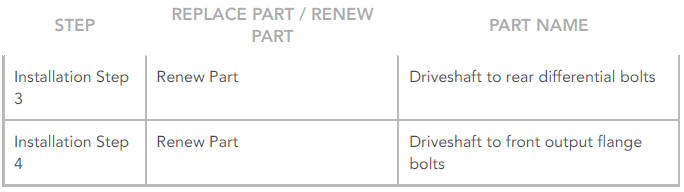

PART(S)

PART(S)

REMOVAL

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.

WARNING:

Make sure to support the vehicle with axle stands.

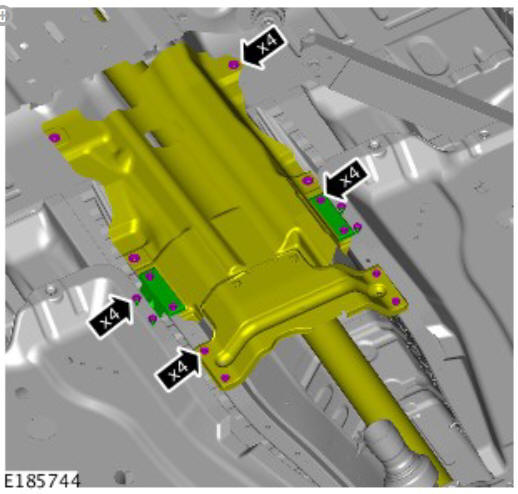

Raise and support the vehicle.

Refer to: Exhaust System (309-00C Exhaust System - INGENIUM I4 2.0L Diesel, Removal and Installation).

Refer to: Diesel Particulate Filter - Vehicles With: Diesel Exhaust Fluid (309-00C Exhaust System - INGENIUM I4 2.0L Diesel, Removal and Installation).

Refer to: Diesel Particulate Filter - Vehicles Without: Diesel Exhaust Fluid (309-00C Exhaust System - INGENIUM I4 2.0L Diesel, Removal and Installation).

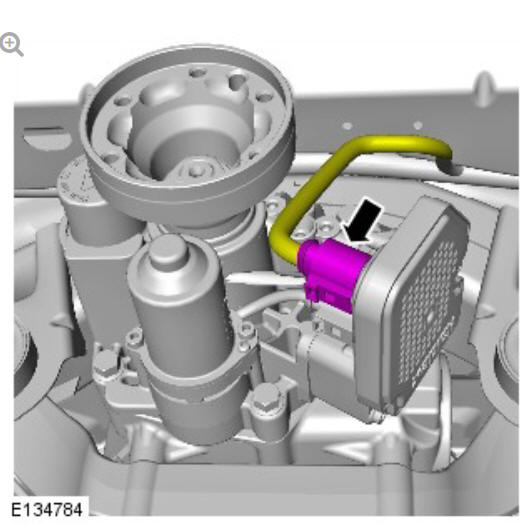

CAUTIONS:

  • To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.

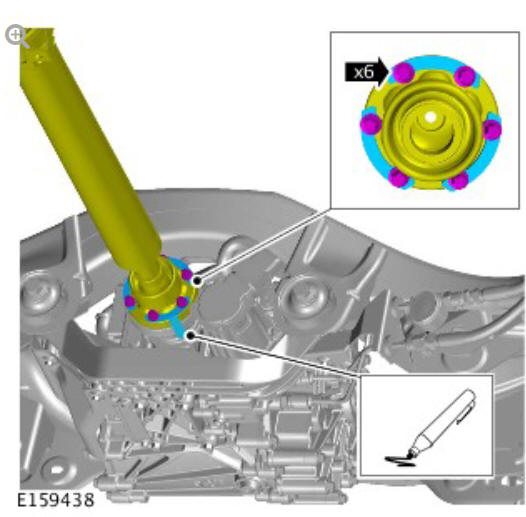

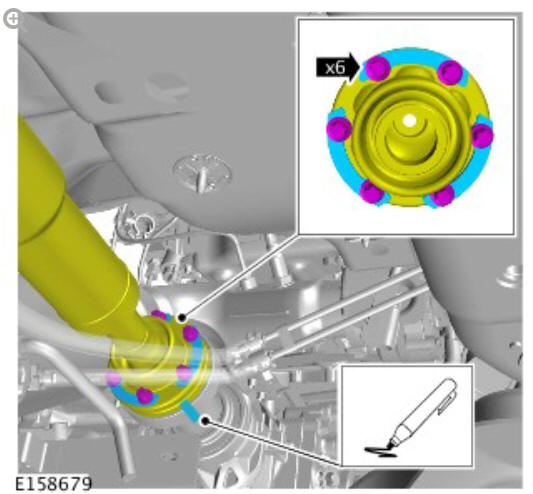

  • Mark the position of the driveshaft flange in relation to the drive pinion flange.
  • Make sure that the driveshaft is supported with suitable retaining straps.
  • Discard the bolts.

Driveshaft - ingenium I4 2.0l diesel, vehicles without- active driveline (G1890849) - Removal

CAUTIONS:

  • To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.
  • Mark the position of the driveshaft flange in relation to the drive pinion flange.
  • Discard the bolts.

Driveshaft - ingenium I4 2.0l diesel, vehicles without- active driveline (G1890849) - Removal

Driveshaft - ingenium I4 2.0l diesel, vehicles without- active driveline (G1890849) - Removal

NOTE:

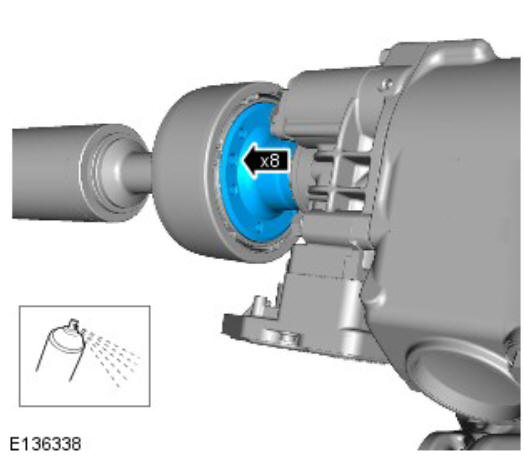

Use penetrating oil - spray through the driveshaft bolt holes as shown.

Driveshaft - ingenium I4 2.0l diesel, vehicles without- active driveline (G1890849) - Removal

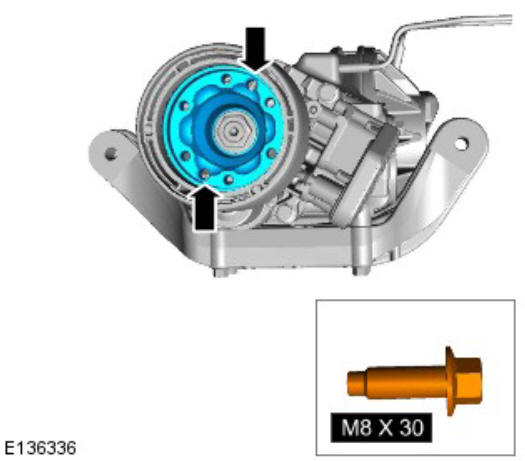

CAUTION:

Use a suitable bolt with a square cross section end to avoid damaging the driveshaft joint.

NOTE:

Driveshaft joint shown removed for clarity.

Driveshaft - ingenium I4 2.0l diesel, vehicles without- active driveline (G1890849) - Removal

NOTES:

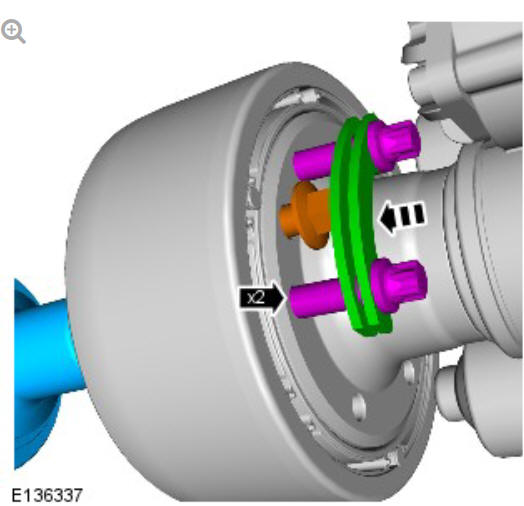

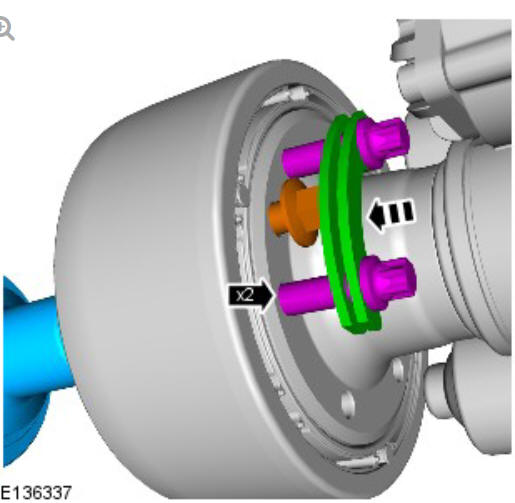

  • Two washers must be installed to the assist in the removal of the driveshaft.
  • Alternate tighten the bolts until the movement of the driveshaft joint is detected.

Driveshaft - ingenium I4 2.0l diesel, vehicles without- active driveline (G1890849) - Removal

CAUTION:

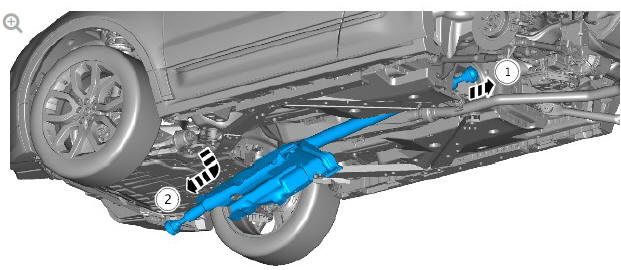

Make sure that the driveshaft is supported with suitable retaining straps.

Driveshaft - ingenium I4 2.0l diesel, vehicles without- active driveline (G1890849) - Removal

  • Remove the bolts, turn the propshaft and repeat the above step at the other unthreaded hole.
  • Repeat above steps until the driveshaft joint is fully released.

Driveshaft - ingenium I4 2.0l diesel, vehicles without- active driveline (G1890849) - Removal

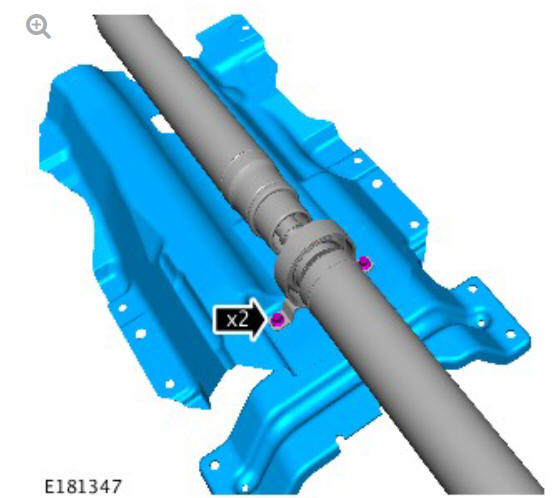

NOTES:

  • This step requires the aid of another technician.
  • Do not disassemble further if the component is removed for access only.

Driveshaft - ingenium I4 2.0l diesel, vehicles without- active driveline (G1890849) - Removal

Driveshaft - ingenium I4 2.0l diesel, vehicles without- active driveline (G1890849) - Removal
