Land Rover Discovery: Driveshaft - Ingenium I4 2.0l Diesel, Vehicles Without- active Driveline (G1890849) - Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Driveline / Driveshaft - Ingenium I4 2.0l Diesel, Vehicles Without- active Driveline (G1890849) / Driveshaft - Ingenium I4 2.0l Diesel, Vehicles Without- active Driveline (G1890849) - Installation

Installation

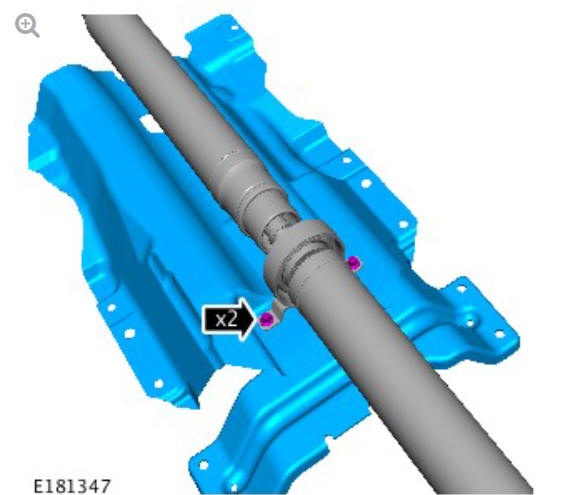

Driveshaft - ingenium I4 2.0l diesel, vehicles without- active driveline (G1890849) - Installation

Torque: 24 Nm

NOTES:

  • Do not tighten at this stage.
  • This step requires the aid of another technician.

Driveshaft - ingenium I4 2.0l diesel, vehicles without- active driveline (G1890849) - Installation

CAUTION:

The component must be aligned with the installation markings.

NOTES:

  • Make sure that new bolts are installed.
  • Tighten the retaining bolts working diagonally.

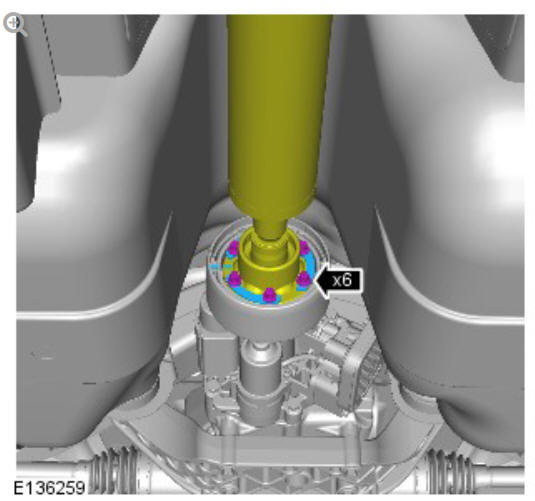

Driveshaft - ingenium I4 2.0l diesel, vehicles without- active driveline (G1890849) - Installation

Renew Part: Driveshaft to rear differential bolts.

Torque: 40 Nm

CAUTION:

The component must be aligned with the installation markings.

NOTES:

  • Make sure that new bolts are installed.
  • Tighten the retaining bolts working diagonally

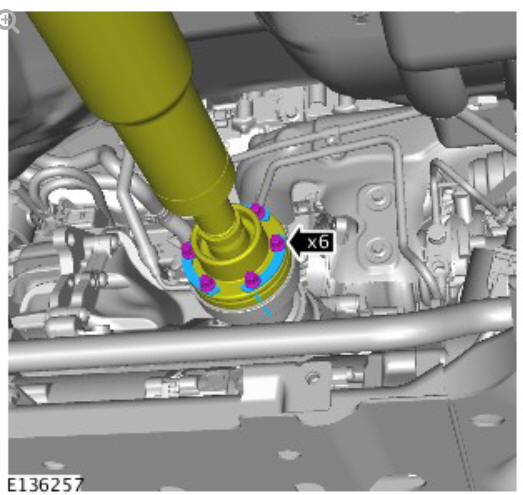

Driveshaft - ingenium I4 2.0l diesel, vehicles without- active driveline (G1890849) - Installation

Renew Part: Driveshaft to front output flange bolts.

Torque: 40 Nm

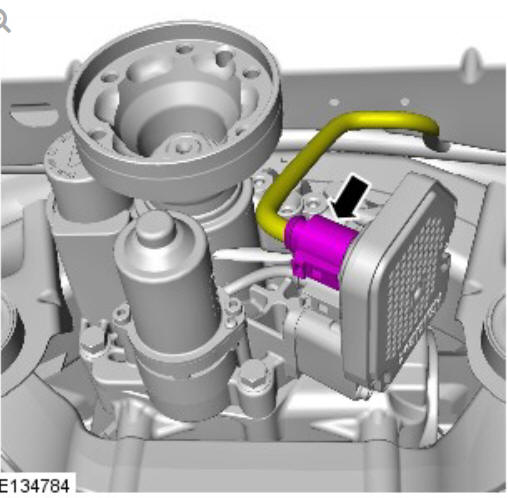

Driveshaft - ingenium I4 2.0l diesel, vehicles without- active driveline (G1890849) - Installation

CAUTION:

Make sure the center bearing mount is not under tension.

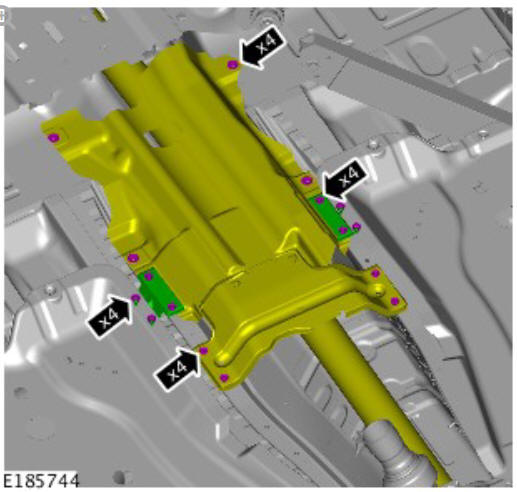

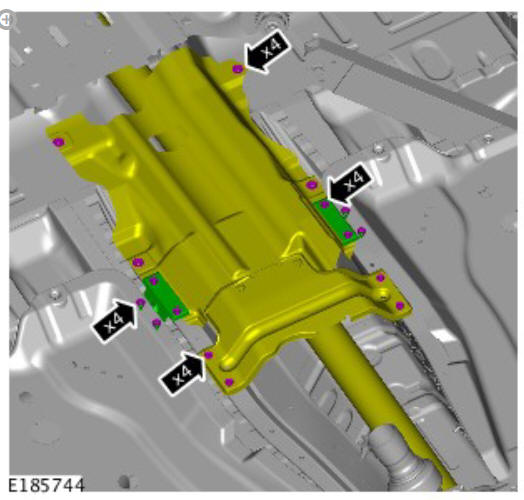

Driveshaft - ingenium I4 2.0l diesel, vehicles without- active driveline (G1890849) - Installation

Torque:

M8 bolt 24 Nm

M8 nut 25 Nm

Refer to: Diesel Particulate Filter - Vehicles With: Diesel Exhaust Fluid (309-00C Exhaust System - INGENIUM I4 2.0L Diesel, Removal and Installation).

Refer to: Diesel Particulate Filter - Vehicles Without: Diesel Exhaust Fluid (309-00C Exhaust System - INGENIUM I4 2.0L Diesel, Removal and Installation).

Refer to: Exhaust System (309-00C Exhaust System - INGENIUM I4 2.0L Diesel, Removal and Installation).

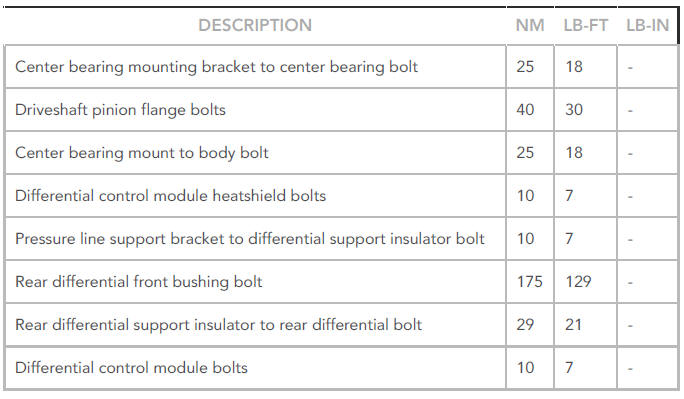

Driveshaft specifications

Torque Specifications

Torque Specifications
