Land Rover Discovery: Engine Cooling - Ingenium i4 2.0l Diesel Charge Air Radiator (G1879559) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Engine / Engine Cooling - Ingenium i4 2.0l Diesel Charge Air Radiator (G1879559) / Removal and Installation

REMOVAL

WARNING:

Cooling fans may continue to operate after the engine is turned off.

They may also start to operate after the engine is turned off and continue operating for up to 10 minutes.

CAUTION:

Be prepared to collect escaping coolant.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some components shown removed for clarity.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Cooling System Partial Draining and Vacuum Filling (303- 03A Engine Cooling - TD4 2.2L Diesel, General Procedures).

Refer to: Condenser - TD4 2.2L Diesel (412-01 Climate Control, Removal and Installation).

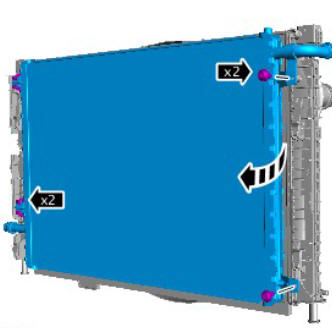

Engine Cooling - Ingenium i4 2.0l Diesel Charge Air Radiator (G1879559) / Removal and Installation

INSTALLATION

  1. To install, reverse the removal procedure.

Engine Cooling - Ingenium i4 2.0l Diesel Coolant Expansion Tank (G1351264) / Removal and Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Refer to: Engine Upper Support Insulator (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).

CAUTION:

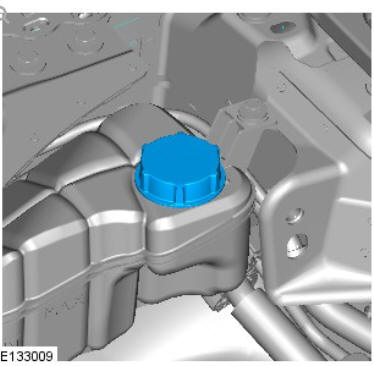

Correct installation of the Coolant expansion tank cap can be obtained by tightening the cap until an audible click is heard.

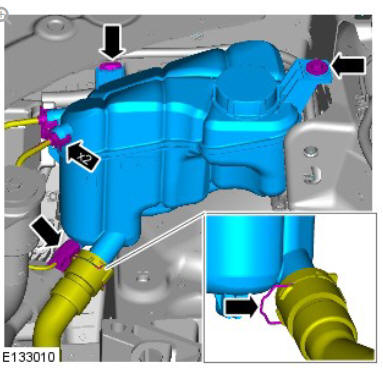

Engine Cooling - Ingenium i4 2.0l Diesel Coolant Expansion Tank (G1351264) / Removal and Installation

Using a syringe, remove the cooling fluid from the expansion tank.

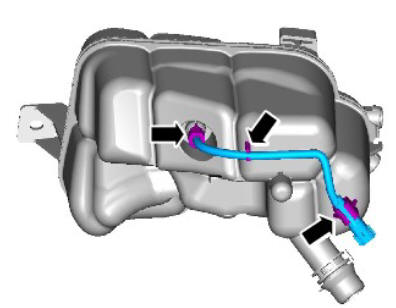

Engine Cooling - Ingenium i4 2.0l Diesel Coolant Expansion Tank (G1351264) / Removal and Installation

Torque: 5 Nm

NOTE:

Do not disassemble further if the component is removed for access only.

Engine Cooling - Ingenium i4 2.0l Diesel Coolant Expansion Tank (G1351264) / Removal and Installation

INSTALLATION

  1. To install, reverse the removal procedure.

Engine Cooling - Ingenium i4 2.0l Diesel Coolant Pump - Charge Air Cooler (G1879560) / Removal and Installation

REMOVAL

CAUTION:

Be prepared to collect escaping coolant.

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).

Refer to: Cooling System Partial Draining and Vacuum Filling (303- 03A Engine Cooling - TD4 2.2L Diesel, General Procedures).

CAUTION:

Be prepared to collect escaping coolant.

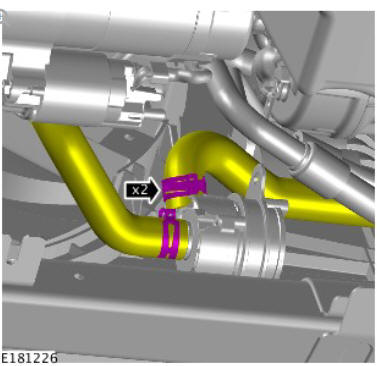

Engine Cooling - Ingenium i4 2.0l Diesel Coolant Pump - Charge Air Cooler (G1879560) / Removal and Installation

Engine Cooling - Ingenium i4 2.0l Diesel Coolant Pump - Charge Air Cooler (G1879560) / Removal and Installation

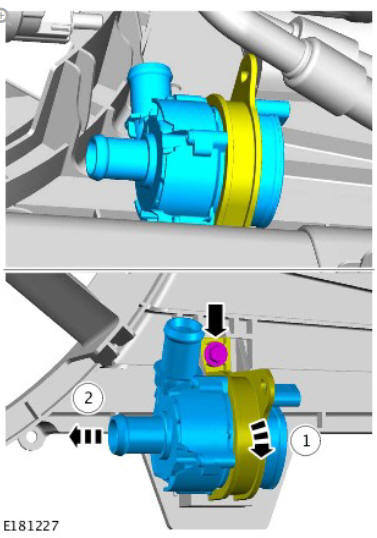

Engine Cooling - Ingenium i4 2.0l Diesel Coolant Pump - Charge Air Cooler (G1879560) / Removal and Installation

Torque: 9 Nm

INSTALLATION

  1. To install, reverse the removal procedure.

    READ NEXT:

     Engine Cooling - Ingenium i4 2.0l Diesel Coolant Pump (G1879556) / Removal and Installation

    REMOVAL NOTES: Removal steps in this procedure may contain installation details. Some variation in the illustrations may occur, but the essential information is always correct. Refer to: Specific

     Engine Cooling - Ingenium i4 2.0l Diesel Cooling Fan Motor and Shroud (G1879558)/ Removal and Installation

    REMOVAL WARNING: Cooling fans may continue to operate after the engine is turned off. They may also start to operate after the engine is turned off and continue operating for up to 10 minutes. CAUTIO

     Engine Cooling - Ingenium i4 2.0l Diesel Cooling System Concentration Check (G2154751) / General Procedures

    GENERAL EQUIPMENT Refractometer / Hydrometer CHECK CAUTIONS: The engine cooling system must be maintained with the correct concentration and type of anti-freeze solution to prevent corrosion and f
