Land Rover Discovery: Engine Cooling - Ingenium i4 2.0l Diesel Coolant Pump (G1879556) / Removal
and Installation
REMOVAL
NOTES:
- Removal steps in this procedure may contain installation details.
- Some variation in the illustrations may occur, but the essential
information is always correct.
Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
WARNING:
Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.
Refer to: Cooling System Partial Draining and Vacuum Filling (303-
03, General Procedures).
Remove the front right wheel and tire.
Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and
Installation).
CAUTION:
Take extra care not to damage the component.
NOTE:
Left illustration shown, right is similar.
NOTE:
Left illustration shown, right is similar.

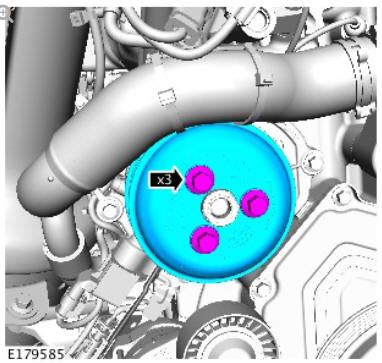

NOTE:
Loosen the bolts, but do not fully remove.
Torque: 25 Nm

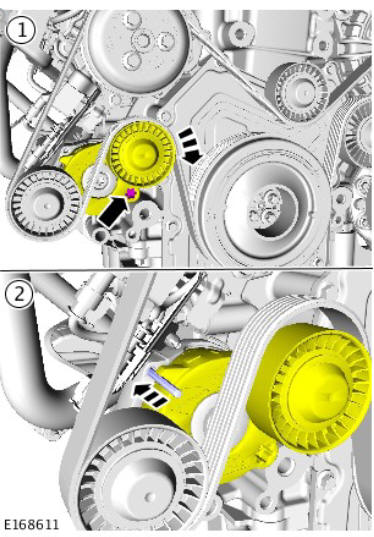

Insert a suitable tool, where illustrated, to prevent tension being
applied to the accessory belt.

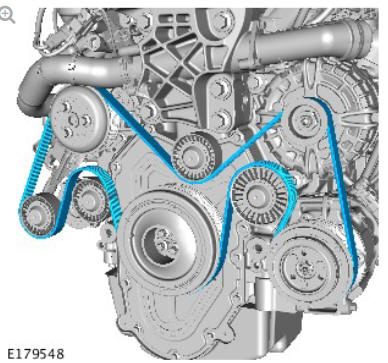

NOTE:
Note the fitted position of the accessory drive belt.

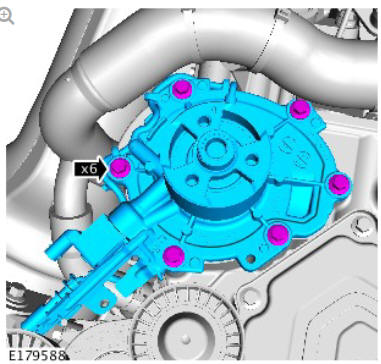

CAUTION:
Make sure that the wiring harness is positioned securely to
one side, to prevent it being trapped between the coolant
pump and engine block when the coolant pump is installed.
CAUTIONS:
- Be prepared to collect escaping coolant.
- Inspect the coolant pump seal for damage. If any damage
is visible, a new coolant pump must be installed.
Torque: 12 Nm
INSTALLATION
CAUTION:
Make sure that the accessory drive belt is correctly aligned to
the pulleys. Failure to follow this instruction may result in
damage to the vehicle.
To install, reverse the removal procedure.
