Land Rover Discovery: Engine Cooling - Ingenium i4 2.0l Diesel Cooling Fan Motor and Shroud (G1879558)/ Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Engine / Engine Cooling - Ingenium i4 2.0l Diesel Cooling Fan Motor and Shroud (G1879558)/ Removal and Installation

REMOVAL

WARNING:

Cooling fans may continue to operate after the engine is turned off.

They may also start to operate after the engine is turned off and continue operating for up to 10 minutes.

CAUTION:

Be prepared to collect escaping coolant.

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  • Some components shown removed for clarity.

WARNING:

Make sure to support the vehicle with axle stands.

  1. Raise and support the vehicle.
  2. Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - INGENIUM I4 2.0L Diesel, Removal and Installation).
  3. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
  4. Refer to: Condenser - TD4 2.2L Diesel (412-01 Climate Control, Removal and Installation).
  5. Refer to: Cooling System Partial Draining and Vacuum Filling (303- 03A Engine Cooling - TD4 2.2L Diesel, General Procedures).
  6. Refer to: Coolant Pump - Charge Air Cooler (303-03B Engine Cooling - INGENIUM I4 2.0L Diesel, Removal and Installation).

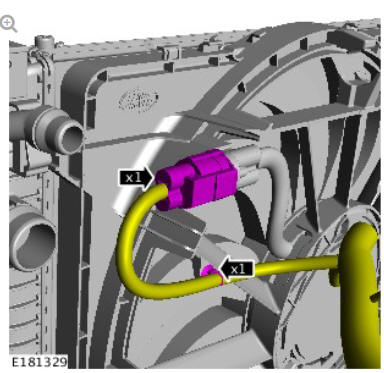

Engine Cooling - Ingenium i4 2.0l Diesel Cooling Fan Motor and Shroud (G1879558)/ Removal and Installation

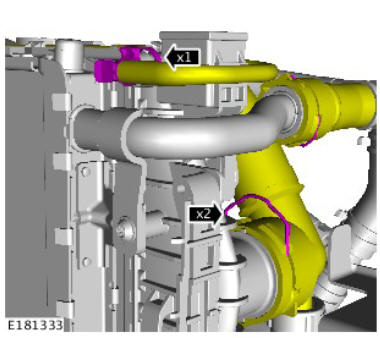

Engine Cooling - Ingenium i4 2.0l Diesel Cooling Fan Motor and Shroud (G1879558)/ Removal and Installation

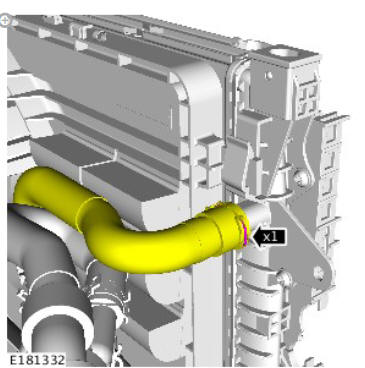

Engine Cooling - Ingenium i4 2.0l Diesel Cooling Fan Motor and Shroud (G1879558)/ Removal and Installation

Engine Cooling - Ingenium i4 2.0l Diesel Cooling Fan Motor and Shroud (G1879558)/ Removal and Installation

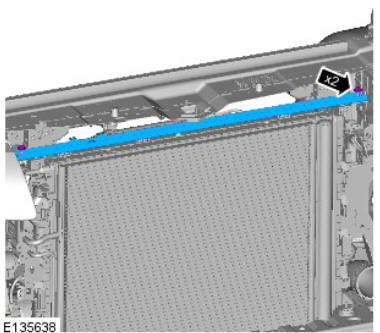

Engine Cooling - Ingenium i4 2.0l Diesel Cooling Fan Motor and Shroud (G1879558)/ Removal and Installation

Torque: 5 Nm

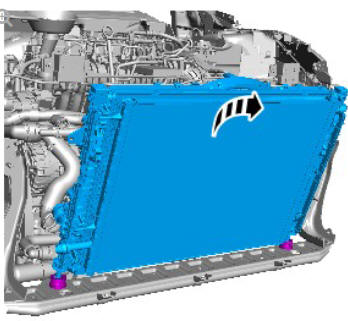

Engine Cooling - Ingenium i4 2.0l Diesel Cooling Fan Motor and Shroud (G1879558)/ Removal and Installation

Engine Cooling - Ingenium i4 2.0l Diesel Cooling Fan Motor and Shroud (G1879558)/ Removal and Installation

INSTALLATION

  1. To install, reverse the removal procedure.
