Land Rover Discovery: Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Pipe (G1875910) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Engine / Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Pipe (G1875910) / Removal and Installation

REMOVAL

Raise and support the vehicle on a suitable 2 post lift.

Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

Remove the driveshaft.

Refer to: Driveshaft - INGENIUM I4 2.0L Diesel, Vehicles With: Active Driveline (205-01 Driveshaft, Removal and Installation).

Refer to: Driveshaft - INGENIUM I4 2.0L Diesel, Vehicles Without: Active Driveline (205-01 Driveshaft, Removal and Installation).

Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Pipe (G1875910) / Removal and Installation

Remove the aero covers.

Drain the exhaust fluid tank.

Refer to: Diesel Exhaust Fluid Tank Drain and Refill (303-08B Engine Emission Control - INGENIUM I4 2.0L Diesel, General Procedures).

CAUTIONS:

  • Be prepared to collect escaping fluids.
  • Make sure that all disconnected electrical connectors and sockets are sealed.

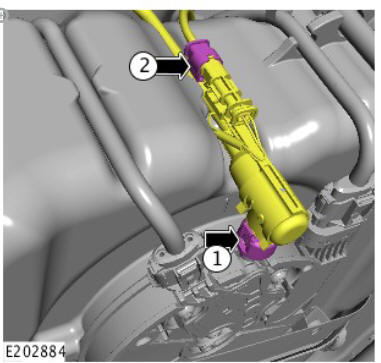

NOTE:

Disconnect the components in the sequence shown.

Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Pipe (G1875910) / Removal and Installation

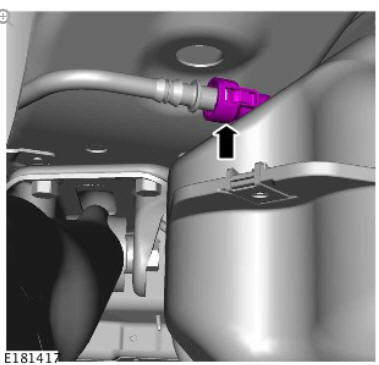

The quick connector is pushed in an axial direction onto the SAE spigot, until you hear an audible click.

Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Pipe (G1875910) / Removal and Installation

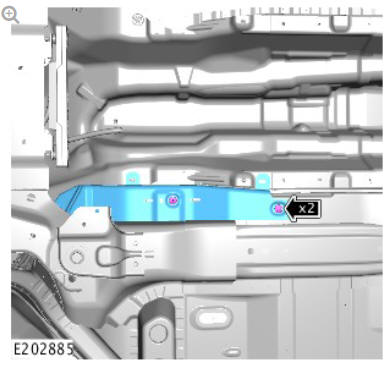

Remove the fuel pipe shield.

Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Pipe (G1875910) / Removal and Installation

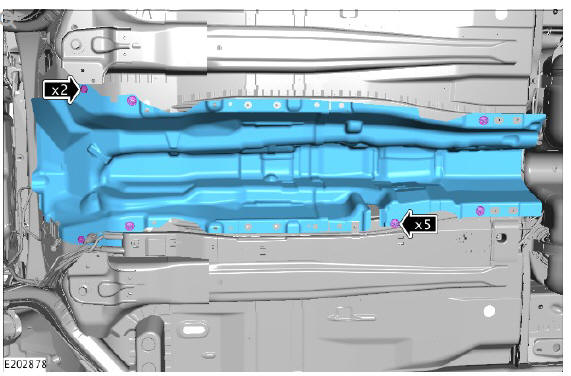

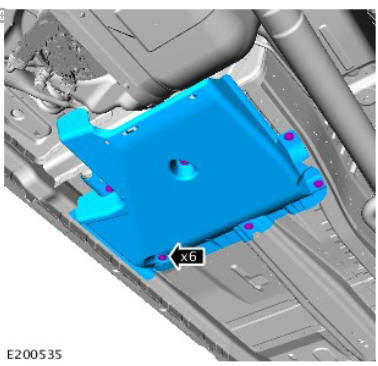

Remove the floor pan.

Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Pipe (G1875910) / Removal and Installation

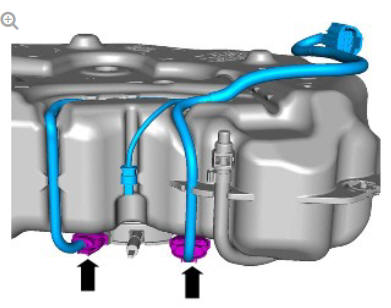

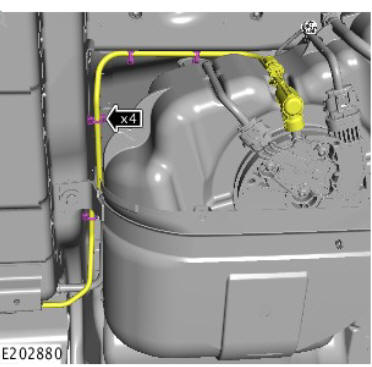

Release the pipe from the 4 clips.

Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Pipe (G1875910) / Removal and Installation

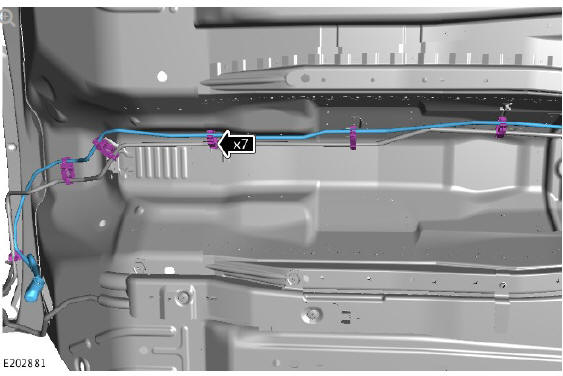

Release the pipe from the 7 clips

INSTALLATION

  1. To install reverse the removal procedure.
  2. Drain the exhaust fluid tank.

    Refer to: Diesel Exhaust Fluid Tank Drain and Refill (303-08B Engine Emission Control - INGENIUM I4 2.0L Diesel, General Procedures).

Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Tank (G1875909) / Removal and Installation

REMOVAL

CAUTION:

Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Diesel Exhaust Fluid Tank Drain and Refill (303-08B Engine Emission Control - INGENIUM I4 2.0L Diesel, General Procedures)

Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Tank (G1875909) / Removal and Installation

Torque: 5 Nm

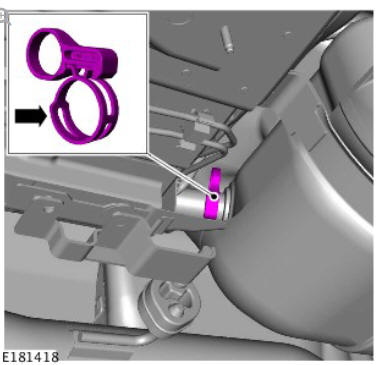

Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Tank (G1875909) / Removal and Installation

WARNING:

Be prepared to collect escaping fluid.

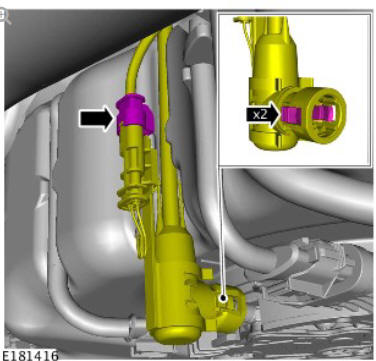

Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Tank (G1875909) / Removal and Installation

Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Tank (G1875909) / Removal and Installation

WARNING:

Be prepared to collect escaping fluid.

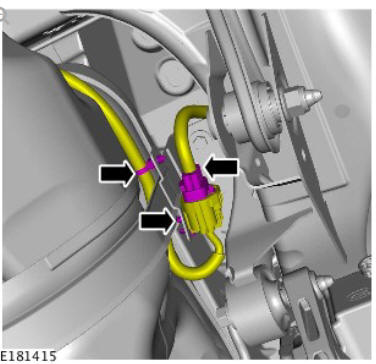

Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Tank (G1875909) / Removal and Installation

NOTE:

Do not disassemble further if the component is removed for access only.

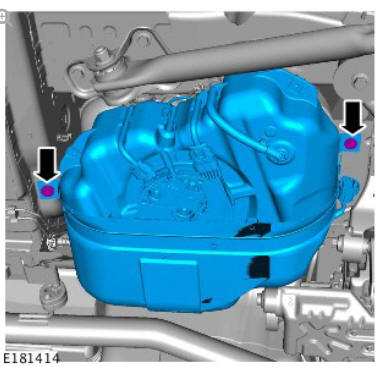

Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Tank (G1875909) / Removal and Installation

Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Tank (G1875909) / Removal and Installation

INSTALLATION

  1. To install reverse the removal procedure.
