Engine Emission Control - Ingenium i4 2.0l Diesel High Pressure Exhaust Gas Recirculation Valve (G1875913) Removal and Installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some components shown removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Low Pressure Exhaust Gas Recirculation Valve (303-08 Engine Emission Control - INGENIUM I4 2.0L Diesel, Removal and Installation).

Refer to: Cooling System Partial Draining, Filling and Bleeding (303- 03B Engine Cooling - INGENIUM I4 2.0L Diesel, General Procedures).

CAUTION:

Remove and discard the gaskets.

Engine Emission Control - Ingenium i4 2.0l Diesel High Pressure Exhaust Gas Recirculation Valve (G1875913) Removal and Installation

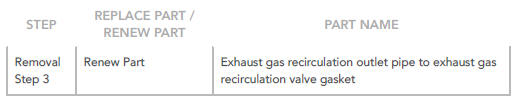

Renew Part: Exhaust gas recirculation outlet pipe to exhaust gas recirculation valve gasket.

Torque: 12 Nm

CAUTION:

Be prepared to collect escaping coolant.

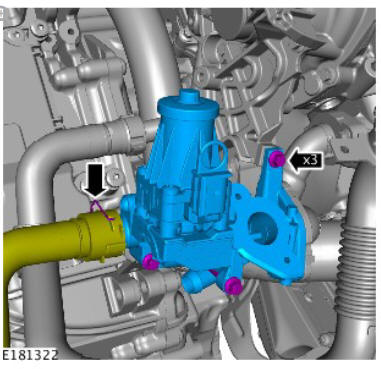

Engine Emission Control - Ingenium i4 2.0l Diesel High Pressure Exhaust Gas Recirculation Valve (G1875913) Removal and Installation

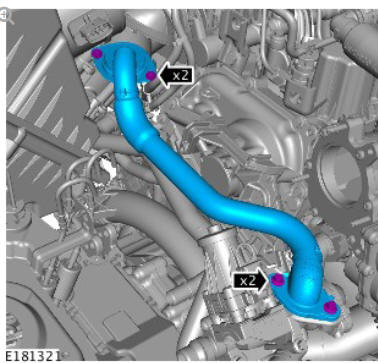

Engine Emission Control - Ingenium i4 2.0l Diesel High Pressure Exhaust Gas Recirculation Valve (G1875913) Removal and Installation

CAUTION:

Be prepared to collect escaping coolant.

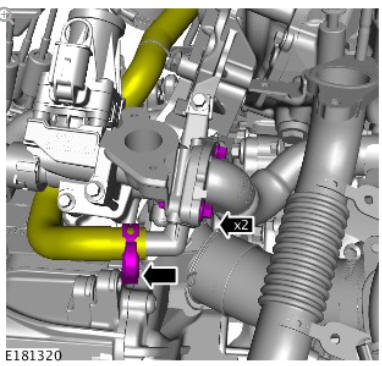

Engine Emission Control - Ingenium i4 2.0l Diesel High Pressure Exhaust Gas Recirculation Valve (G1875913) Removal and Installation

Torque: 12 Nm

INSTALLATION

NOTES:

  • Install new gaskets.
  • Install new O-ring seals.

To install, reverse the removal procedure.
