Land Rover Discovery: Engine Emission Control - Ingenium i4 2.0l Diesel Low Pressure Exhaust Gas Recirculation Valve (G1875911) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Engine / Engine Emission Control - Ingenium i4 2.0l Diesel Low Pressure Exhaust Gas Recirculation Valve (G1875911) / Removal and Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior Trim and Ornamentation, Removal and Installation).

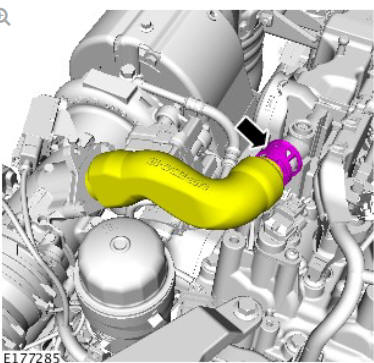

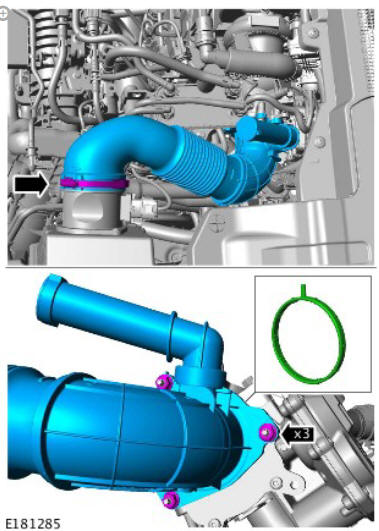

Engine Emission Control - Ingenium i4 2.0l Diesel Low Pressure Exhaust Gas Recirculation Valve (G1875911) Removal and Installation

Torque:

Clamp 3.5 Nm

Bolt 8 Nm

NOTE:

Remove and discard the O-ring seal.

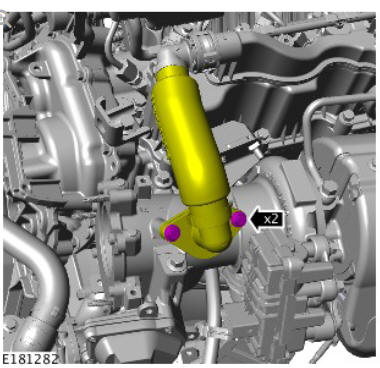

Engine Emission Control - Ingenium i4 2.0l Diesel Low Pressure Exhaust Gas Recirculation Valve (G1875911) Removal and Installation

Torque: 12 Nm

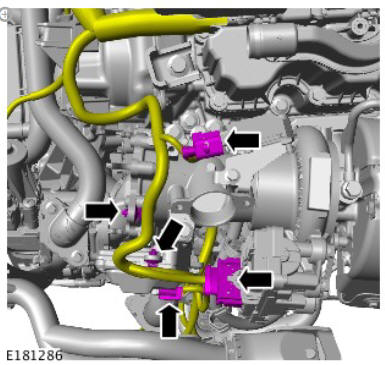

Engine Emission Control - Ingenium i4 2.0l Diesel Low Pressure Exhaust Gas Recirculation Valve (G1875911) Removal and Installation

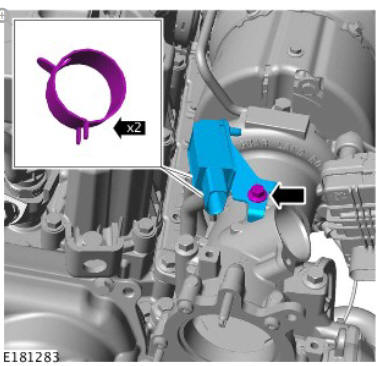

Engine Emission Control - Ingenium i4 2.0l Diesel Low Pressure Exhaust Gas Recirculation Valve (G1875911) Removal and Installation

Torque: 12 Nm

NOTES:

  • Discard the gasket.
  • Remove and discard the O-ring seal.

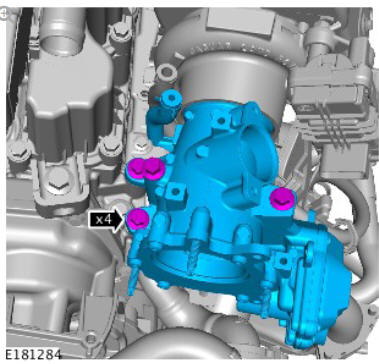

Engine Emission Control - Ingenium i4 2.0l Diesel Low Pressure Exhaust Gas Recirculation Valve (G1875911) Removal and Installation

Torque: 25 Nm

INSTALLATION

CAUTIONS:

  • Install a new gasket.
  • Install a new O ring seal.

To install, reverse the removal procedure.

If a new component has been installed, configure using Land Rover approved diagnostic equipment.

Engine Emission Control - Ingenium i4 2.0l Diesel Valve Cover Vent Oil Separator (G1875906) Removal and Installation

REMOVAL

CAUTION:

Removal steps in this procedure contains installation details.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.

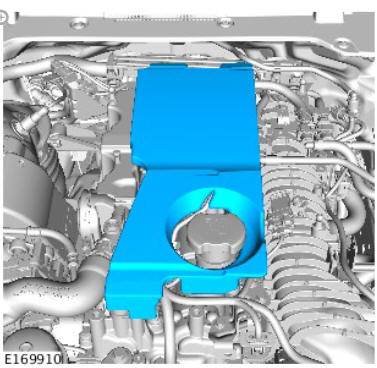

Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05, Removal and Installation).

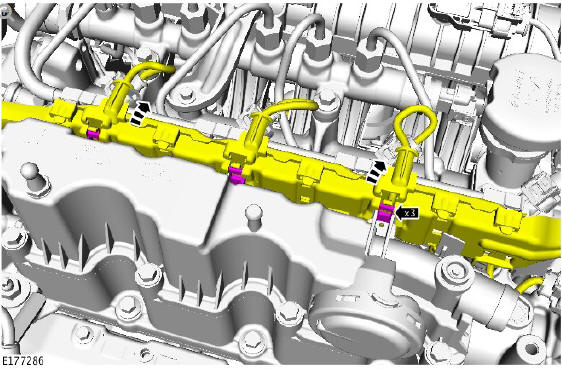

Engine Emission Control - Ingenium i4 2.0l Diesel Valve Cover Vent Oil Separator (G1875906) Removal and Installation

Engine Emission Control - Ingenium i4 2.0l Diesel Valve Cover Vent Oil Separator (G1875906) Removal and Installation

Engine Emission Control - Ingenium i4 2.0l Diesel Valve Cover Vent Oil Separator (G1875906) Removal and Installation

CAUTION:

Inspect the seal, install a new component if damaged.

NOTE:

The bolts will remain captive.

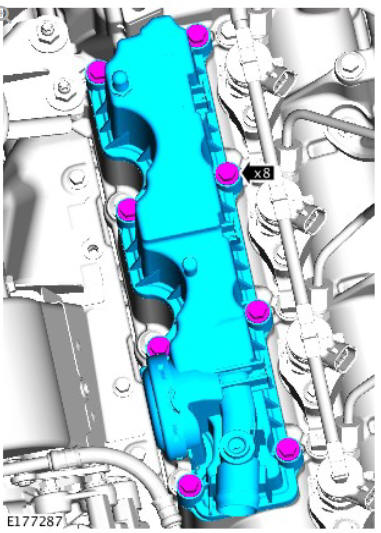

Engine Emission Control - Ingenium i4 2.0l Diesel Valve Cover Vent Oil Separator (G1875906) Removal and Installation

Torque: 12 Nm

INSTALLATION

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

To install, reverse the removal procedure.
