Land Rover Discovery: Engine Emission Control - Ingenium i4 2.0l Diesel Low Pressure Exhaust Gas Recirculation Cooler (G1875912) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Engine / Engine Emission Control - Ingenium i4 2.0l Diesel Low Pressure Exhaust Gas Recirculation Cooler (G1875912) / Removal and Installation

PART(S)

PART(S)

REMOVAL

CAUTION:

Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTES:

  • Some variation in illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

  1. Raise and support the vehicle.
  2. Refer to: Catalytic Converter (309-00C Exhaust System - INGENIUM I4 2.0L Diesel, Removal and Installation).
  3. Refer to: Cooling System Partial Draining, Filling and Bleeding (303- 03B Engine Cooling - INGENIUM I4 2.0L Diesel, General Procedures).

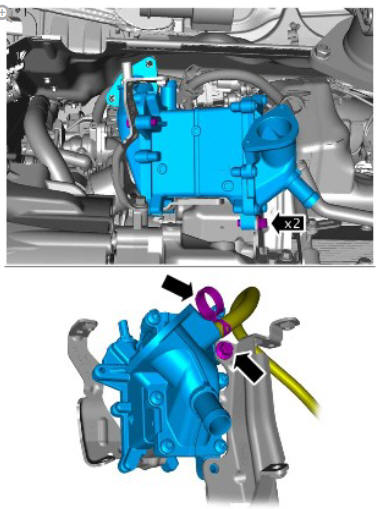

Engine Emission Control - Ingenium i4 2.0l Diesel Low Pressure Exhaust Gas Recirculation Cooler (G1875912)/ Removal and Installation

Torque: 12 Nm

NOTE:

Discard the gasket.

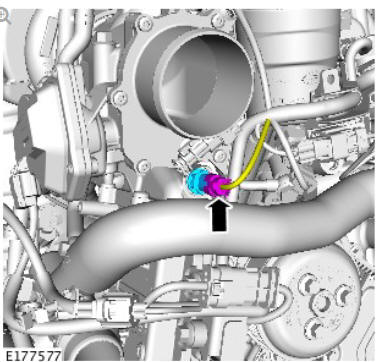

Engine Emission Control - Ingenium i4 2.0l Diesel Low Pressure Exhaust Gas Recirculation Cooler (G1875912)/ Removal and Installation

Renew Part: Low pressure exhaust gas recirculation cooler gasket

Torque: 12 Nm

CAUTION:

Be prepared to collect escaping coolant.

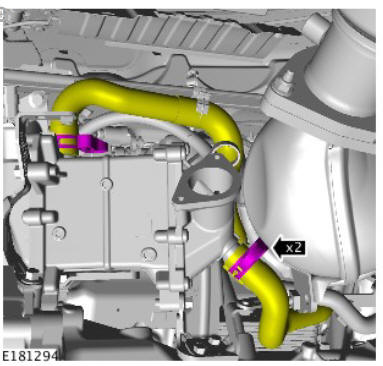

Engine Emission Control - Ingenium i4 2.0l Diesel Low Pressure Exhaust Gas Recirculation Cooler (G1875912)/ Removal and Installation

CAUTION:

Be prepared to collect escaping coolant.

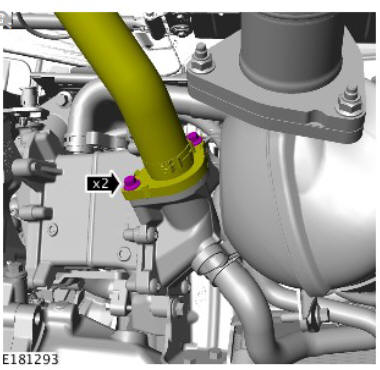

Engine Emission Control - Ingenium i4 2.0l Diesel Low Pressure Exhaust Gas Recirculation Cooler (G1875912)/ Removal and Installation

Torque: 12 Nm

INSTALLATION

NOTE:

Install new gaskets.

To install, reverse the removal procedure.

Engine Emission Control - Ingenium i4 2.0l Diesel Low Pressure Exhaust Gas Recirculation Temperature Sensor (G1875915) Removal and Iinstallation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - INGENIUM I4 2.0L Diesel, Removal and Installation).

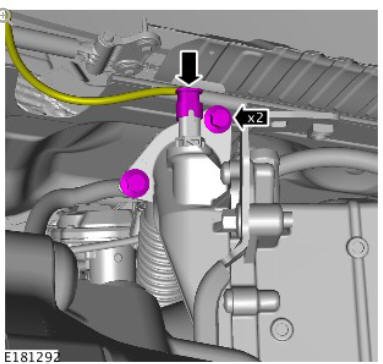

Engine Emission Control - Ingenium i4 2.0l Diesel Low Pressure Exhaust Gas Recirculation Temperature Sensor (G1875915) Removal and Iinstallation

Torque: 3.6 Nm

INSTALLATION

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

To install, reverse the removal procedure.
