Land Rover Discovery: Engine - Ingenium i4 2.0l Diesel Oil Cooler (G1875880) / Removal and
Installation
REMOVAL
NOTES:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
WARNING:
Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.
Refer to: Cooling System Partial Draining and Vacuum Filling (303-
03C, General Procedures).
Refer to: Diesel Particulate Filter (309-00B Exhaust System - TD4
2.2L Diesel, Removal and Installation).
Refer to: Diesel Particulate Filter (309-00B Exhaust System - TD4
2.2L Diesel, Removal and Installation).

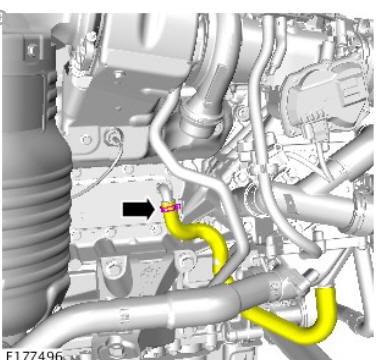

CAUTION:
Be prepared to collect escaping coolant.
.jpg)

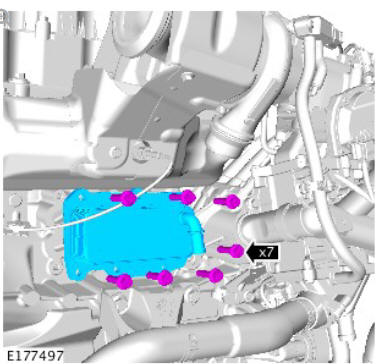

CAUTIONS:
- Be prepared to collect escaping fluids.
- Install a new gasket.
.jpg)
Torque: 25 Nm
INSTALLATION
To install, reverse the removal procedure.
Engine - Ingenium i4 2.0l Diesel Oil Filter Element (G1875881) Removal and
Installation

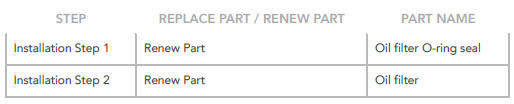

PART(S)
.jpg)
REMOVAL
NOTES:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
NOTE:
Allow 10 minutes for the engine oil to drain from the oil filter
housing.
.jpg)

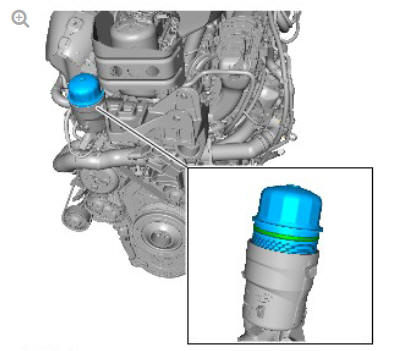

- Loosen the filter cover 4 complete turns to allow engine oil to
drain from the filter cover.
- Make sure that the O-ring seal is exposed.
NOTE:
Remove and discard the O-ring seal.
.jpg)

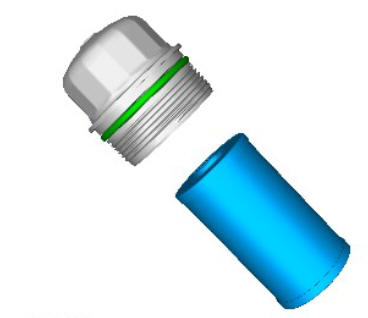

Remove and discard the oil filter element.
INSTALLATION

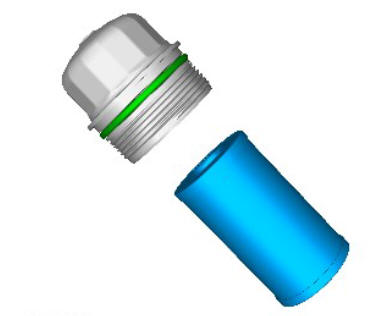

NOTE:
Install new O-ring seals.
.jpg)
Lubricate the oil filter O-ring seal with clean engine oil.
Renew Part: Oil filter O-ring seal.

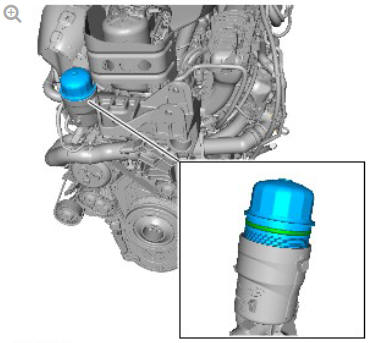

CAUTION:
Tighten the component finger tight first.
.jpg)
Renew Part: Oil filter.
Torque: 28 Nm
